| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24046cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24046cztM0_level2_quad_clean.evt |
| Size (bytes) | 603,777,600 | 134,458,560 |
| Size | 575.8 MB | 128.2 MB |
| Events in quadrant A | 3,277,449 | 923,536 |
| Events in quadrant B | 3,677,284 | 933,622 |
| Events in quadrant C | 3,721,102 | 892,142 |
| Events in quadrant D | 7,134,748 | 834,532 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14340 | 1 |
| B | 0 | 15201 | 1 |
| C | 0 | 15218 | 1 |
| D | 0 | 26105 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7014 | 54 | 0.769889% |
| B | 7015 | 100 | 1.425517% |
| C | 7015 | 90 | 1.282965% |
| D | 7015 | 726 | 10.349252% |

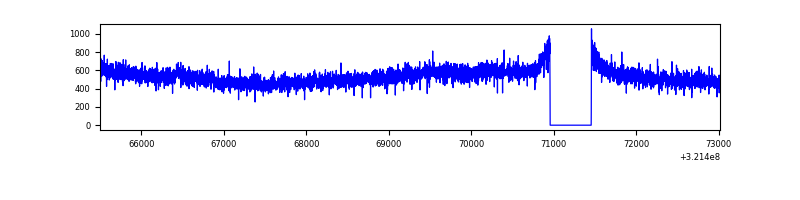

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7514 | 7015 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7515 | 7016 | 14 | 14 | 0.19% | 0.20% |  |
| C | 7515 | 7016 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7515 | 7016 | 623 | 623 | 8.29% | 8.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12476 | 69.09 | 844 | 825 | 168.6 |
| A | 3 | 1 | 10201 | 55.6 | 844 | 825 | 168.6 |
| A | 2 | 250 | 9065 | 48.86 | 844 | 825 | 168.6 |
| B | 0 | 197 | 250967 | 1585.09 | 838 | 817 | 157.8 |
| B | 14 | 207 | 48319 | 301.0 | 838 | 817 | 157.8 |
| B | 0 | 245 | 34103 | 210.92 | 838 | 817 | 157.8 |
| C | 7 | 247 | 459497 | 2453.12 | 803 | 808 | 187.0 |
| C | 14 | 238 | 128282 | 681.75 | 803 | 808 | 187.0 |
| C | 13 | 61 | 5724 | 26.29 | 803 | 808 | 187.0 |
| D | 8 | 195 | 1511131 | 7824.89 | 794 | 769 | 193.0 |
| D | 12 | 218 | 1460485 | 7562.51 | 794 | 769 | 193.0 |
| D | 1 | 52 | 1107704 | 5734.82 | 794 | 769 | 193.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

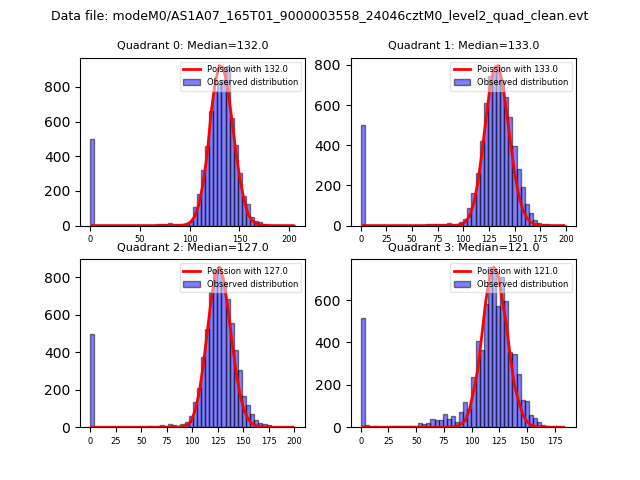

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

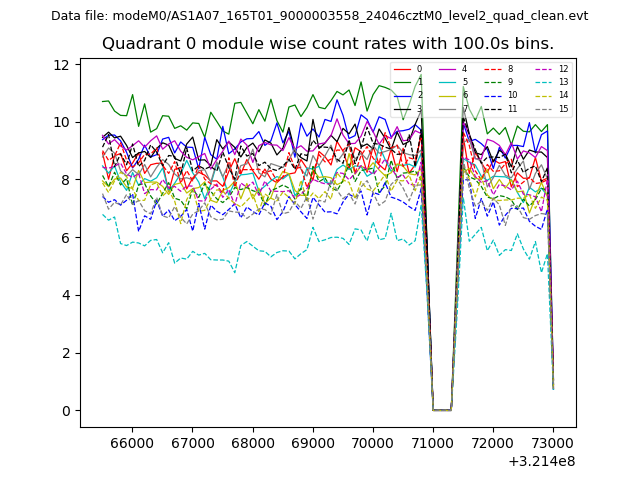

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

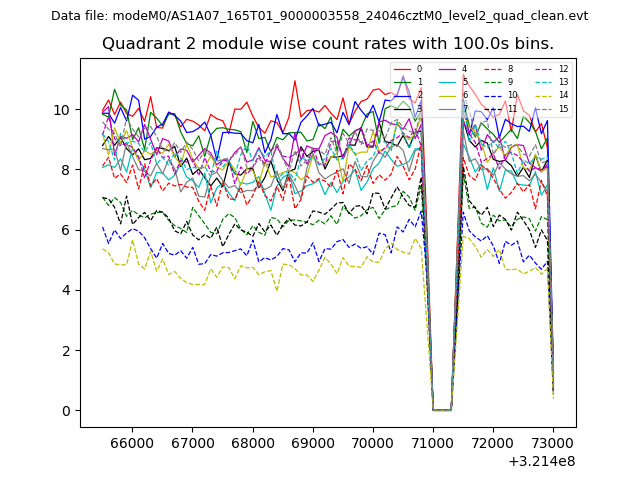

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

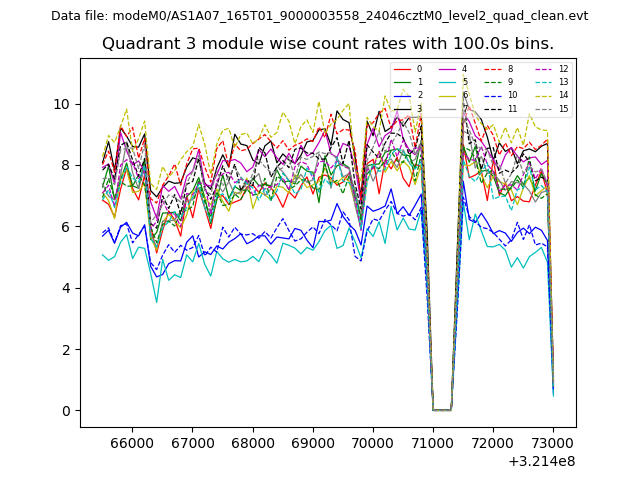

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

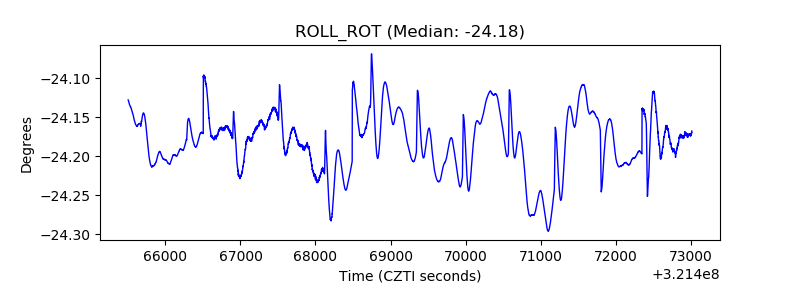

| _ROLL_ROT |  |

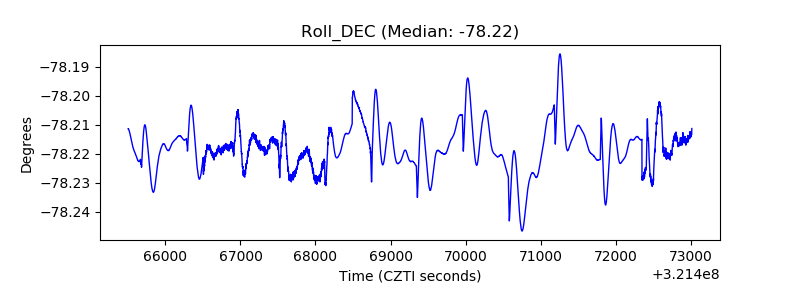

| _Roll_DEC |  |
| _Roll_RA |  |

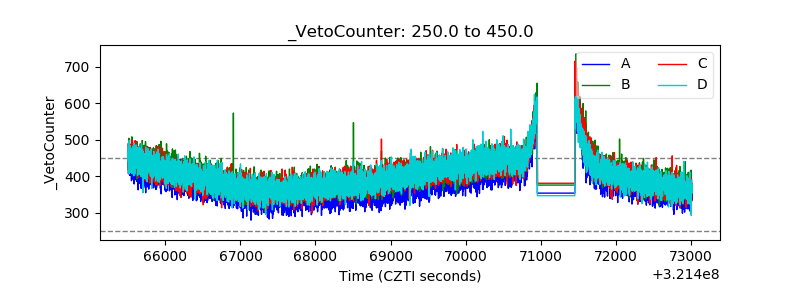

| Veto Counter |  |
