| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24052cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24052cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,295,680 | 136,154,880 |
| Size | 460.9 MB | 129.8 MB |
| Events in quadrant A | 3,262,624 | 918,885 |
| Events in quadrant B | 3,720,692 | 941,710 |
| Events in quadrant C | 3,520,575 | 901,577 |
| Events in quadrant D | 3,666,115 | 883,090 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14022 | 0 |
| B | 0 | 15350 | 0 |
| C | 0 | 14426 | 0 |
| D | 0 | 15154 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | -1 | -1 |
| D | 0 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6870 | 31 | 0.451237% |
| B | 6871 | 42 | 0.611265% |
| C | 6870 | 95 | 1.382824% |
| D | 6870 | 48 | 0.698690% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

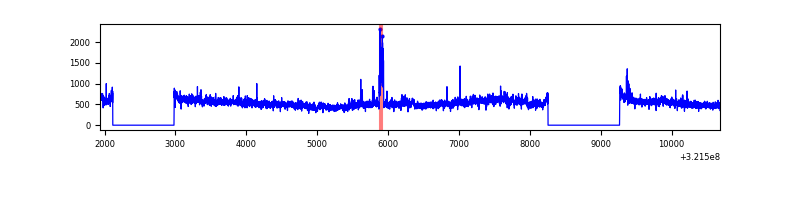

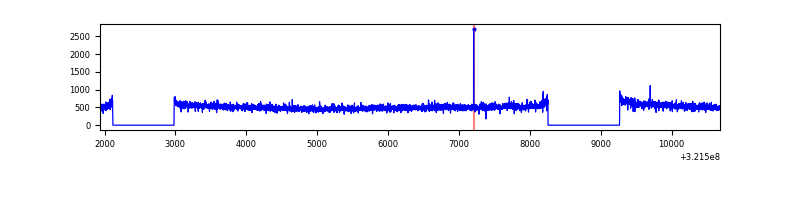

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8745 | 6872 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8746 | 6873 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8745 | 6871 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8745 | 6872 | 10 | 10 | 0.11% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11428 | 62.73 | 840 | 821 | 169.1 |
| A | 2 | 250 | 10934 | 59.8 | 840 | 821 | 169.1 |
| A | 3 | 137 | 7160 | 37.49 | 840 | 821 | 169.1 |
| B | 0 | 197 | 280229 | 1775.02 | 844 | 823 | 157.4 |
| B | 14 | 207 | 66963 | 420.18 | 844 | 823 | 157.4 |
| B | 0 | 189 | 25519 | 156.89 | 844 | 823 | 157.4 |
| C | 7 | 247 | 165798 | 863.51 | 821 | 827 | 191.0 |
| C | 14 | 238 | 130590 | 679.22 | 821 | 827 | 191.0 |
| C | 10 | 91 | 12919 | 63.29 | 821 | 827 | 191.0 |
| D | 8 | 195 | 280237 | 1397.2 | 826 | 799 | 200.0 |
| D | 12 | 233 | 211480 | 1053.41 | 826 | 799 | 200.0 |
| D | 1 | 52 | 35494 | 173.47 | 826 | 799 | 200.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

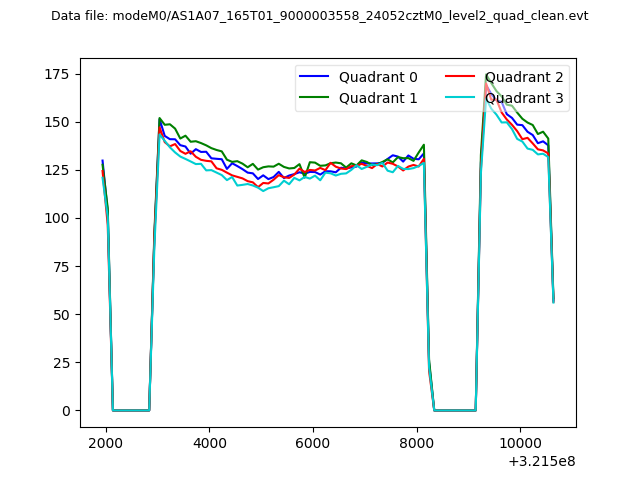

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

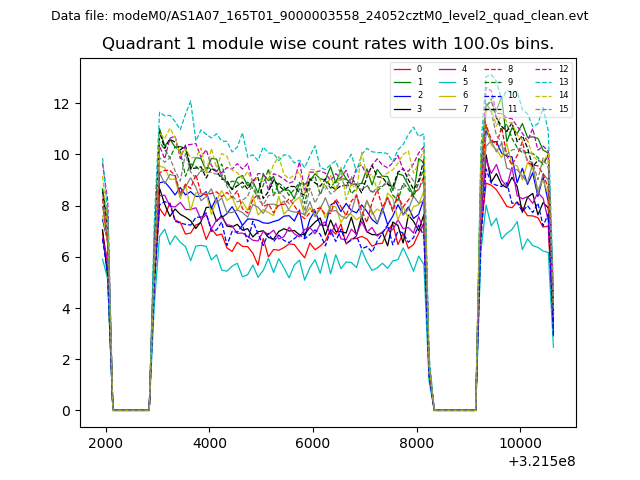

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

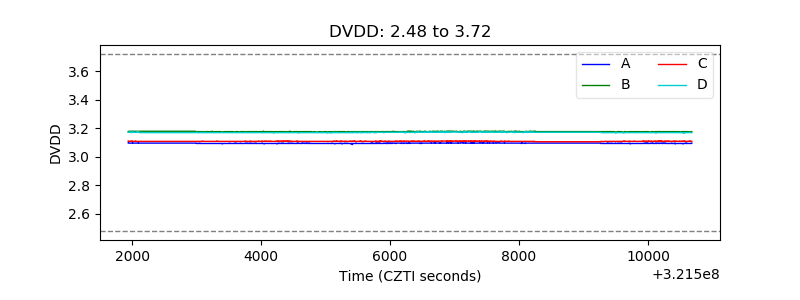

| D_VDD |  |
| Temperature 1 |  |

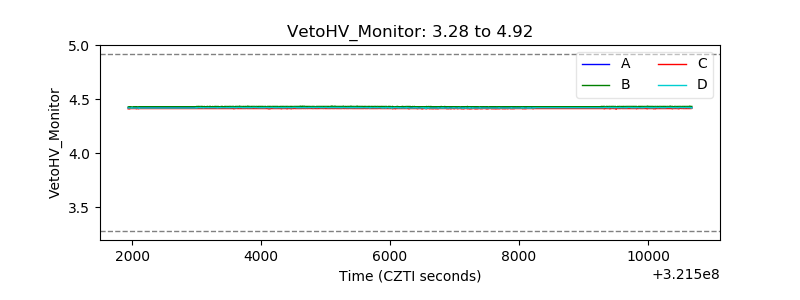

| Veto HV Monitor |  |
| Veto LLD |  |

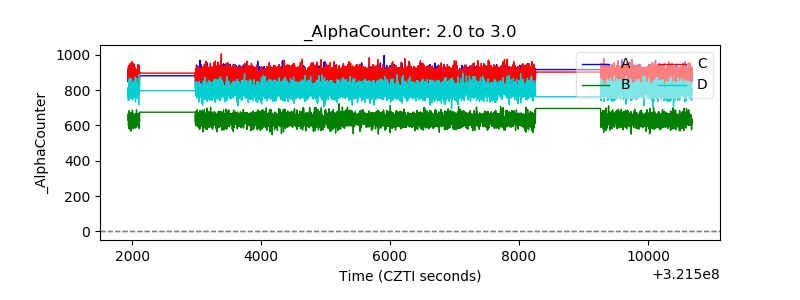

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

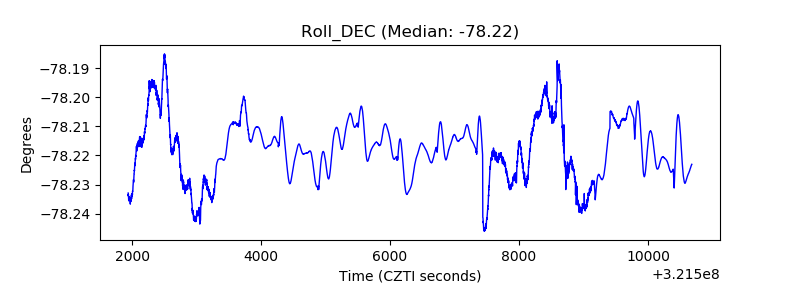

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
