| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24055cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24055cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,485,760 | 142,087,680 |
| Size | 461.1 MB | 135.5 MB |
| Events in quadrant A | 3,265,182 | 975,231 |
| Events in quadrant B | 3,420,928 | 996,135 |
| Events in quadrant C | 3,444,021 | 957,944 |
| Events in quadrant D | 4,083,464 | 933,529 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13667 | 2 |
| B | 0 | 14187 | 2 |
| C | 0 | 14118 | 2 |
| D | 0 | 16285 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6322 | 29 | 0.458716% |
| B | 6322 | 25 | 0.395444% |
| C | 6322 | 93 | 1.471053% |
| D | 6322 | 62 | 0.980702% |

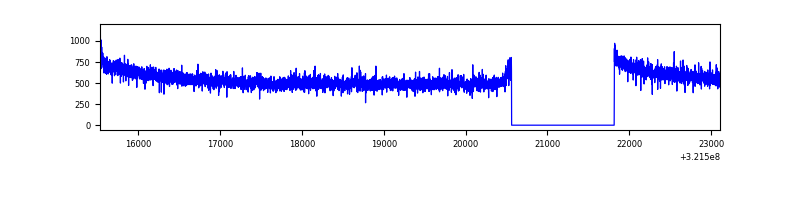

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7577 | 6323 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7577 | 6323 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7577 | 6323 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7577 | 6323 | 43 | 43 | 0.57% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11242 | 62.37 | 845 | 829 | 167.0 |
| A | 0 | 226 | 7374 | 39.2 | 845 | 829 | 167.0 |
| A | 3 | 137 | 6492 | 33.92 | 845 | 829 | 167.0 |
| B | 0 | 189 | 41289 | 265.28 | 839 | 820 | 152.6 |
| B | 0 | 197 | 38999 | 250.27 | 839 | 820 | 152.6 |
| B | 7 | 202 | 20182 | 126.92 | 839 | 820 | 152.6 |
| C | 14 | 238 | 131046 | 690.3 | 822 | 829 | 188.6 |
| C | 7 | 247 | 99929 | 525.34 | 822 | 829 | 188.6 |
| C | 13 | 61 | 5658 | 25.6 | 822 | 829 | 188.6 |
| D | 11 | 176 | 448781 | 2243.1 | 833 | 809 | 199.7 |
| D | 8 | 195 | 334535 | 1671.05 | 833 | 809 | 199.7 |
| D | 1 | 52 | 108966 | 541.57 | 833 | 809 | 199.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

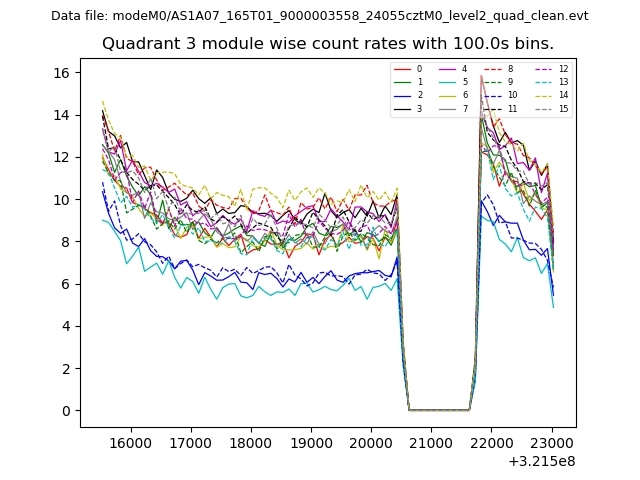

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

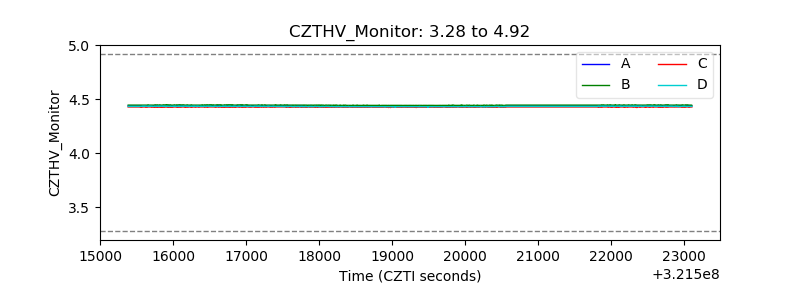

| CZT HV Monitor |  |
| D_VDD |  |

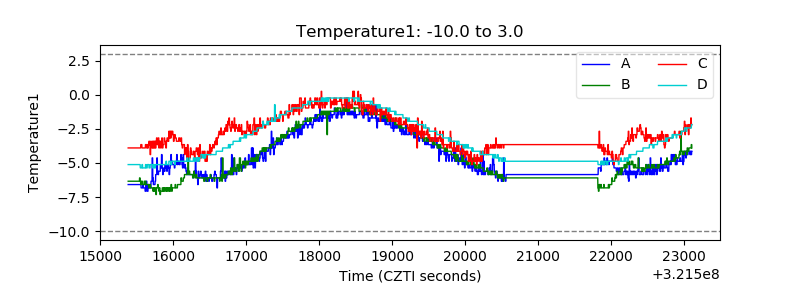

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

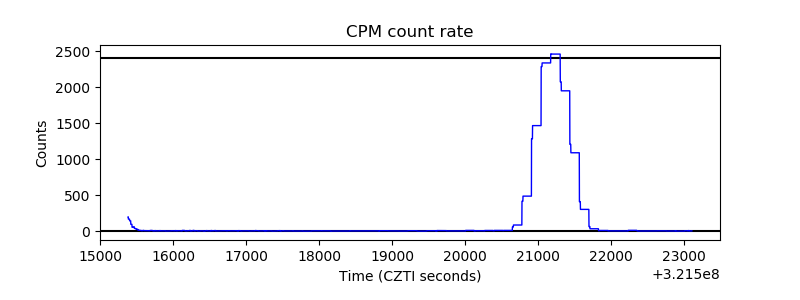

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

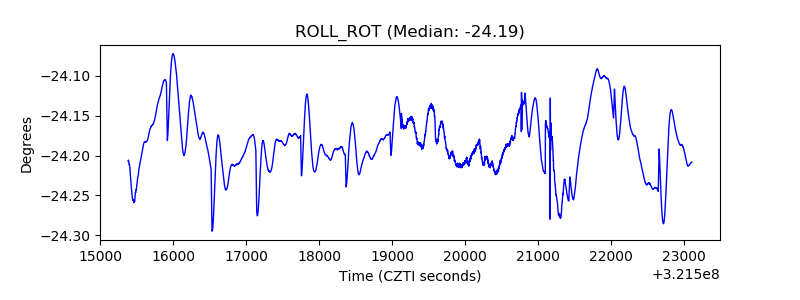

| _ROLL_ROT |  |

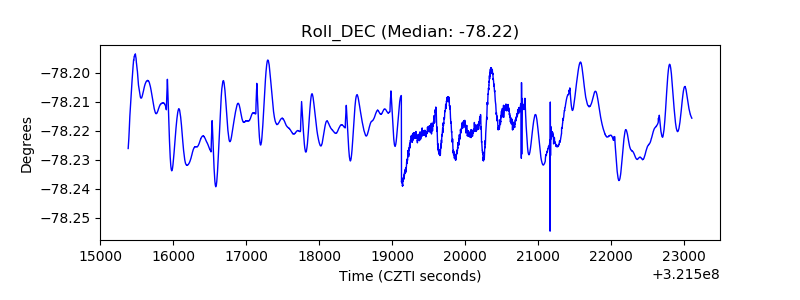

| _Roll_DEC |  |
| _Roll_RA |  |

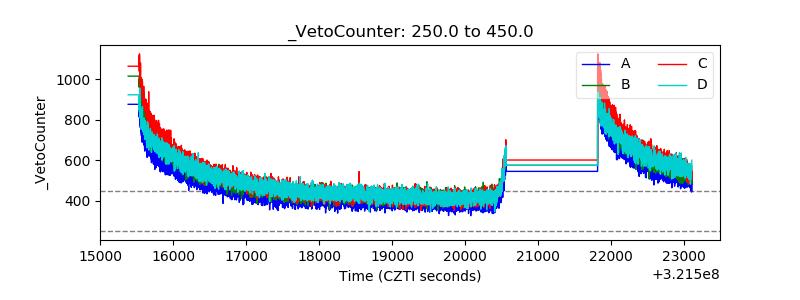

| Veto Counter |  |
