| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24056cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24056cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,278,400 | 139,642,560 |
| Size | 435.1 MB | 133.2 MB |
| Events in quadrant A | 3,194,377 | 964,920 |
| Events in quadrant B | 3,386,694 | 979,908 |
| Events in quadrant C | 3,265,479 | 941,541 |
| Events in quadrant D | 3,563,699 | 923,366 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13190 | 1 |
| B | 0 | 13896 | 1 |
| C | 0 | 13508 | 1 |
| D | 0 | 14487 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6014 | 31 | 0.515464% |
| B | 6015 | 27 | 0.448878% |
| C | 6015 | 74 | 1.230258% |
| D | 6015 | 24 | 0.399002% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

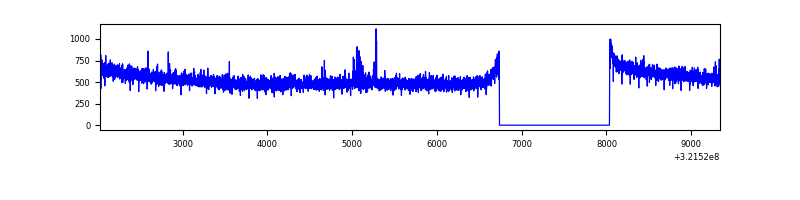

| A | 7314 | 6015 | 0 | 0 | 0.00% | 0.00% |  |

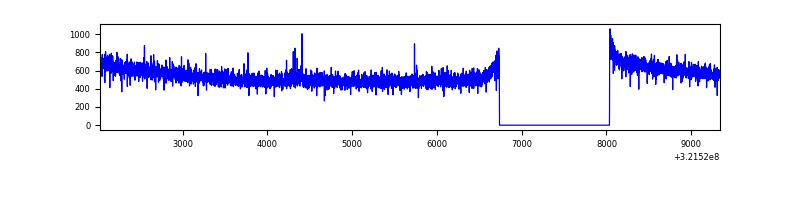

| B | 7315 | 6016 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7315 | 6016 | 0 | 0 | 0.00% | 0.00% |  |

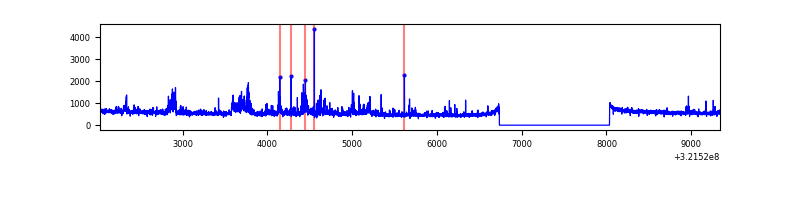

| D | 7315 | 6016 | 5 | 5 | 0.07% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 20305 | 120.16 | 823 | 808 | 162.3 |
| A | 13 | 254 | 9823 | 55.56 | 823 | 808 | 162.3 |
| A | 0 | 226 | 7209 | 39.45 | 823 | 808 | 162.3 |
| B | 0 | 197 | 91410 | 612.78 | 813 | 797 | 147.9 |
| B | 0 | 189 | 88888 | 595.73 | 813 | 797 | 147.9 |
| B | 12 | 111 | 16524 | 106.36 | 813 | 797 | 147.9 |
| C | 14 | 238 | 129980 | 712.66 | 791 | 797 | 181.3 |
| C | 7 | 247 | 54459 | 296.04 | 791 | 797 | 181.3 |
| C | 13 | 61 | 5429 | 25.55 | 791 | 797 | 181.3 |
| D | 8 | 195 | 326518 | 1687.53 | 809 | 788 | 193.0 |
| D | 12 | 233 | 99712 | 512.5 | 809 | 788 | 193.0 |
| D | 1 | 52 | 50625 | 258.19 | 809 | 788 | 193.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

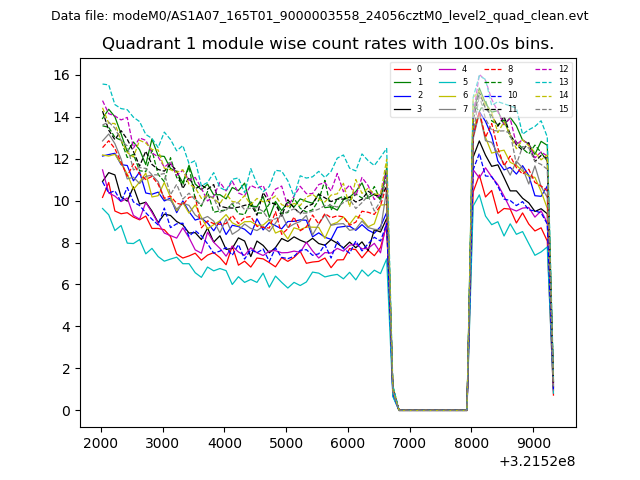

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

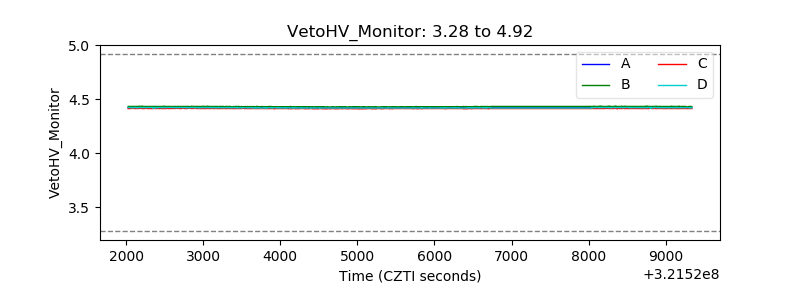

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

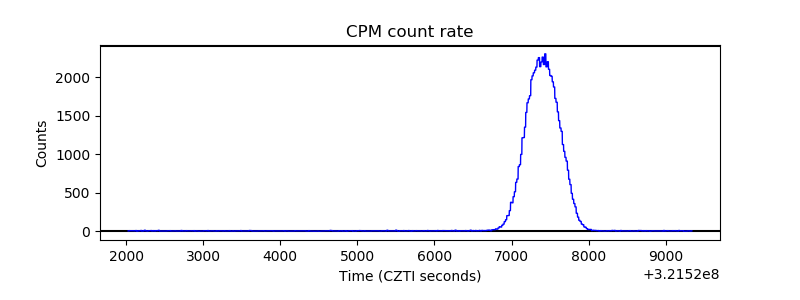

| _CPM_Rate |  |

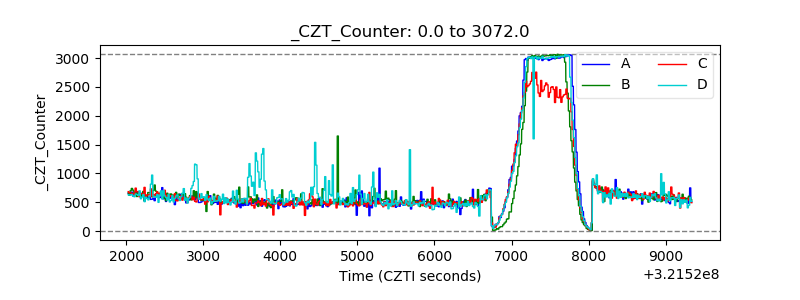

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

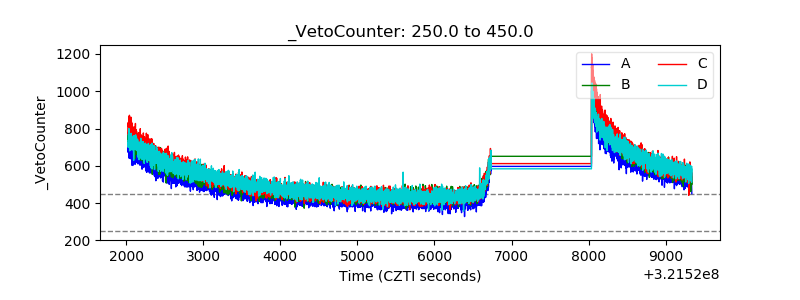

| Veto Counter |  |
