| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24057cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24057cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,280,000 | 153,535,680 |
| Size | 480.0 MB | 146.4 MB |
| Events in quadrant A | 3,506,709 | 1,066,476 |
| Events in quadrant B | 3,859,372 | 1,078,501 |
| Events in quadrant C | 3,629,264 | 1,031,184 |
| Events in quadrant D | 3,800,958 | 1,016,548 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14435 | 2 |
| B | 0 | 15561 | 2 |
| C | 0 | 15054 | 2 |
| D | 0 | 15436 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6575 | 41 | 0.623574% |
| B | 6575 | 76 | 1.155894% |
| C | 6575 | 98 | 1.490494% |
| D | 6575 | 42 | 0.638783% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7915 | 6576 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7915 | 6576 | 21 | 21 | 0.27% | 0.32% |  |
| C | 7915 | 6576 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7915 | 6576 | 11 | 11 | 0.14% | 0.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10116 | 51.75 | 909 | 893 | 178.2 |
| A | 0 | 226 | 8205 | 41.03 | 909 | 893 | 178.2 |
| A | 3 | 137 | 6702 | 32.6 | 909 | 893 | 178.2 |
| B | 0 | 189 | 157417 | 970.95 | 894 | 877 | 161.2 |
| B | 0 | 245 | 154268 | 951.42 | 894 | 877 | 161.2 |
| B | 0 | 197 | 38194 | 231.46 | 894 | 877 | 161.2 |
| C | 14 | 238 | 140432 | 709.74 | 865 | 876 | 196.6 |
| C | 7 | 247 | 114227 | 576.47 | 865 | 876 | 196.6 |
| C | 13 | 61 | 6121 | 26.67 | 865 | 876 | 196.6 |
| D | 8 | 195 | 163219 | 776.98 | 886 | 863 | 209.0 |
| D | 1 | 52 | 129365 | 614.97 | 886 | 863 | 209.0 |
| D | 12 | 233 | 89606 | 424.69 | 886 | 863 | 209.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

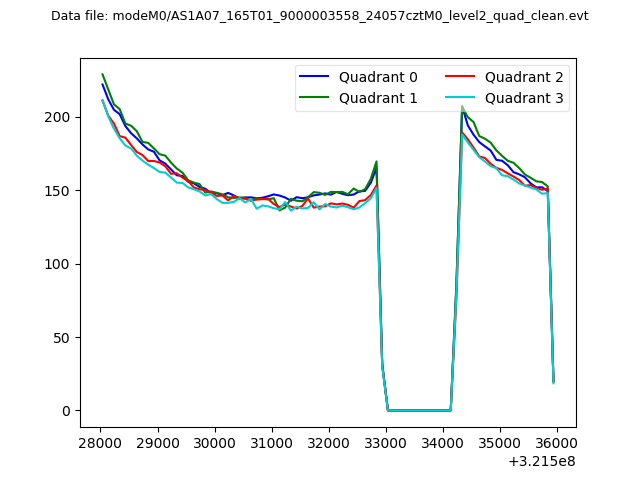

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

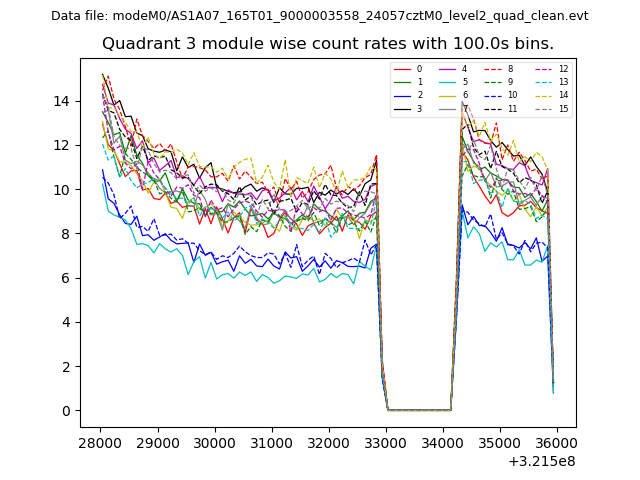

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
