| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24070cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24070cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,142,720 | 138,144,960 |
| Size | 448.4 MB | 131.7 MB |
| Events in quadrant A | 3,159,214 | 950,903 |
| Events in quadrant B | 3,191,504 | 970,386 |
| Events in quadrant C | 3,449,079 | 930,617 |
| Events in quadrant D | 4,028,407 | 910,344 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13093 | 1 |
| B | 0 | 13101 | 1 |
| C | 0 | 14080 | 1 |
| D | 0 | 16241 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6040 | 30 | 0.496689% |
| B | 6039 | 35 | 0.579566% |
| C | 6039 | 125 | 2.069879% |
| D | 6040 | 37 | 0.612583% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7315 | 6041 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7314 | 6040 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7314 | 6040 | 20 | 20 | 0.27% | 0.33% |  |
| D | 7315 | 6041 | 7 | 7 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 13422 | 78.38 | 815 | 802 | 161.0 |
| A | 13 | 254 | 9268 | 52.58 | 815 | 802 | 161.0 |
| A | 0 | 226 | 7093 | 39.07 | 815 | 802 | 161.0 |
| B | 12 | 111 | 16239 | 103.96 | 808 | 790 | 148.6 |
| B | 11 | 111 | 14717 | 93.72 | 808 | 790 | 148.6 |
| B | 14 | 111 | 12918 | 81.61 | 808 | 790 | 148.6 |
| C | 0 | 239 | 190606 | 1054.16 | 788 | 794 | 180.1 |
| C | 14 | 238 | 128815 | 710.99 | 788 | 794 | 180.1 |
| C | 7 | 247 | 53301 | 291.61 | 788 | 794 | 180.1 |
| D | 8 | 195 | 870542 | 4522.85 | 803 | 781 | 192.3 |
| D | 1 | 52 | 80695 | 415.56 | 803 | 781 | 192.3 |
| D | 11 | 176 | 31780 | 161.2 | 803 | 781 | 192.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

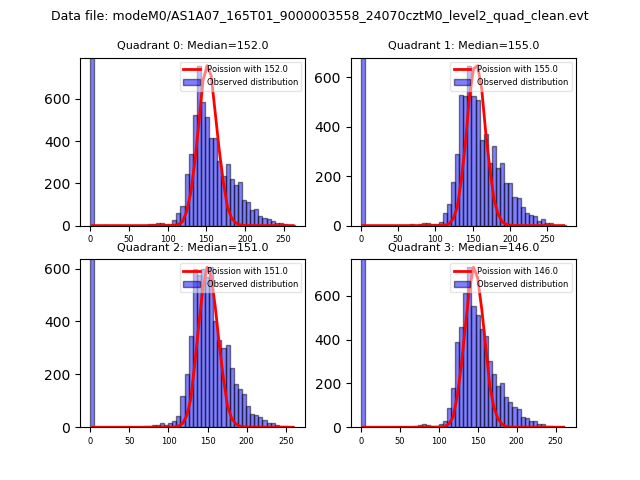

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

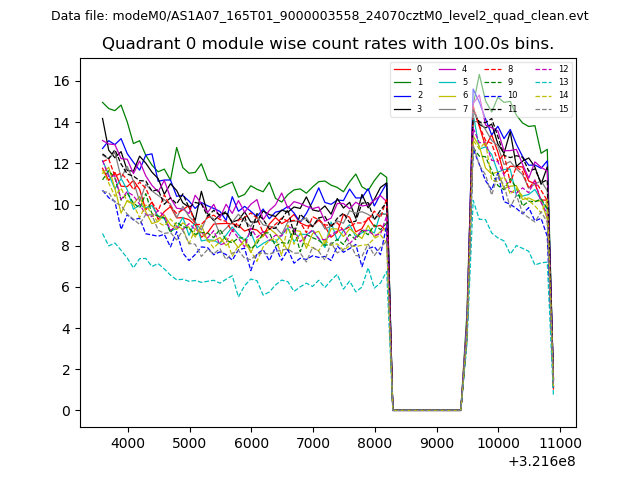

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

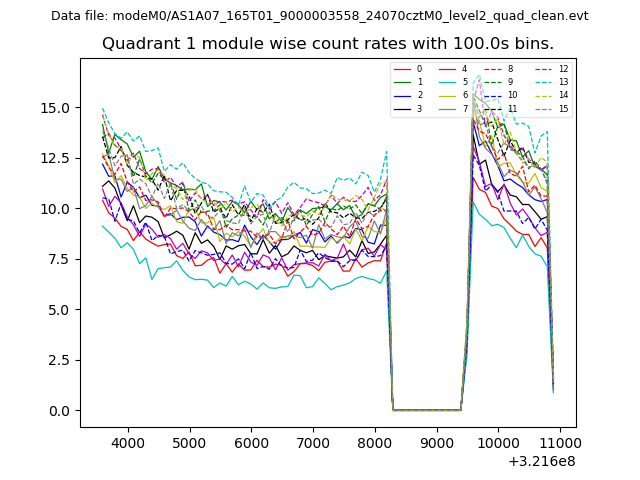

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

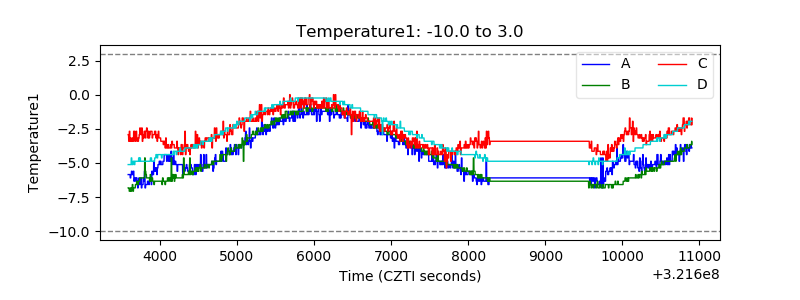

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

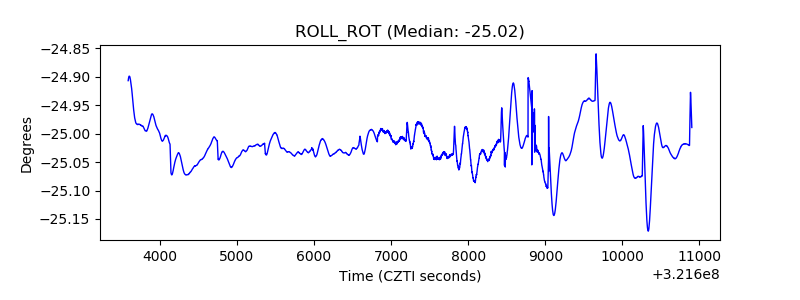

| _ROLL_ROT |  |
| _Roll_DEC |  |

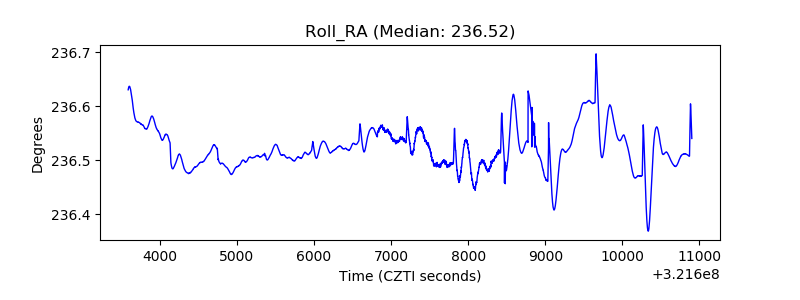

| _Roll_RA |  |
| Veto Counter |  |
