| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24071cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24071cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,377,920 | 133,306,560 |
| Size | 420.0 MB | 127.1 MB |
| Events in quadrant A | 3,035,770 | 921,990 |
| Events in quadrant B | 3,158,485 | 936,950 |
| Events in quadrant C | 3,079,348 | 897,929 |
| Events in quadrant D | 3,672,876 | 879,107 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12435 | 1 |
| B | 0 | 12771 | 1 |
| C | 0 | 12742 | 1 |
| D | 0 | 14995 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5753 | 62 | 1.077699% |
| B | 5753 | 55 | 0.956023% |
| C | 5753 | 112 | 1.946810% |
| D | 5753 | 62 | 1.077699% |

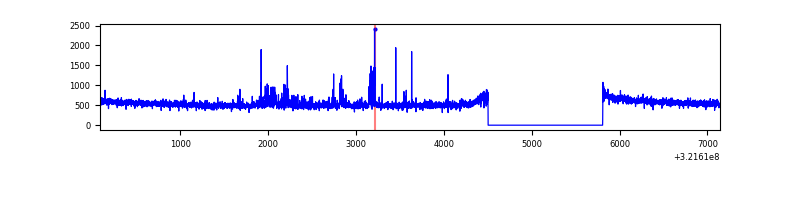

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7058 | 5753 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7058 | 5754 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7058 | 5754 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7058 | 5754 | 9 | 9 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9586 | 56.67 | 787 | 774 | 155.5 |
| A | 0 | 226 | 6957 | 39.76 | 787 | 774 | 155.5 |
| A | 3 | 137 | 5962 | 33.36 | 787 | 774 | 155.5 |
| B | 0 | 229 | 34612 | 239.28 | 775 | 761 | 141.5 |
| B | 0 | 197 | 33901 | 234.25 | 775 | 761 | 141.5 |
| B | 0 | 189 | 27457 | 188.7 | 775 | 761 | 141.5 |
| C | 14 | 238 | 123692 | 718.89 | 754 | 761 | 171.0 |
| C | 7 | 247 | 9377 | 50.39 | 754 | 761 | 171.0 |
| C | 13 | 61 | 5241 | 26.2 | 754 | 761 | 171.0 |
| D | 8 | 195 | 600760 | 3276.09 | 768 | 749 | 183.1 |
| D | 1 | 52 | 107556 | 583.17 | 768 | 749 | 183.1 |
| D | 2 | 234 | 26170 | 138.8 | 768 | 749 | 183.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

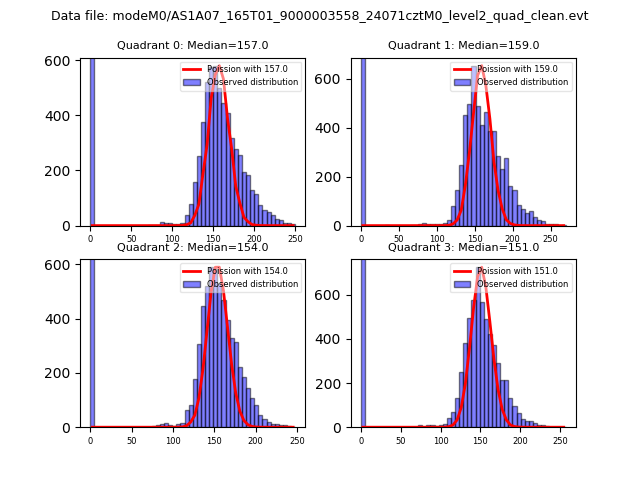

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

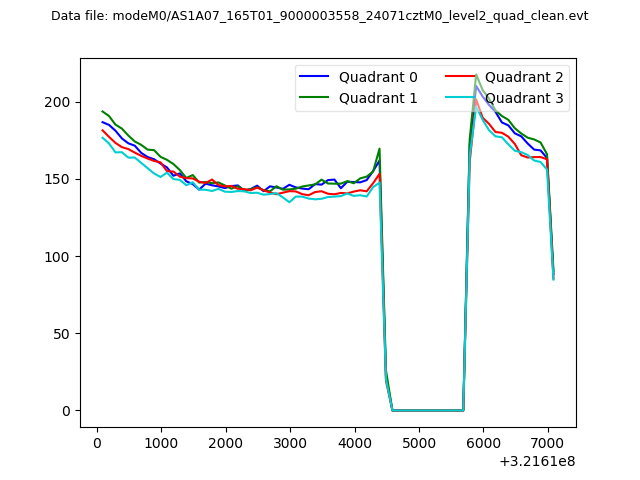

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

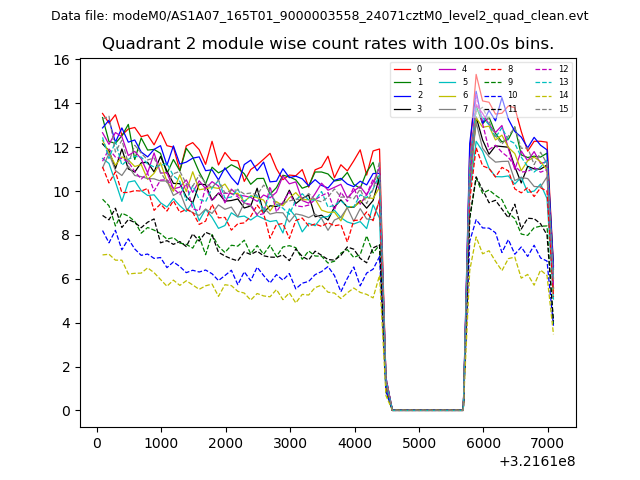

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

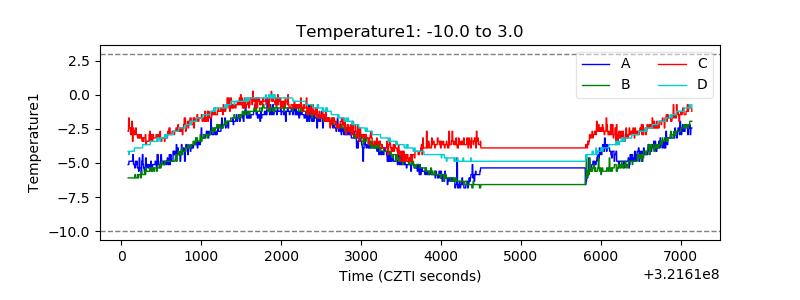

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

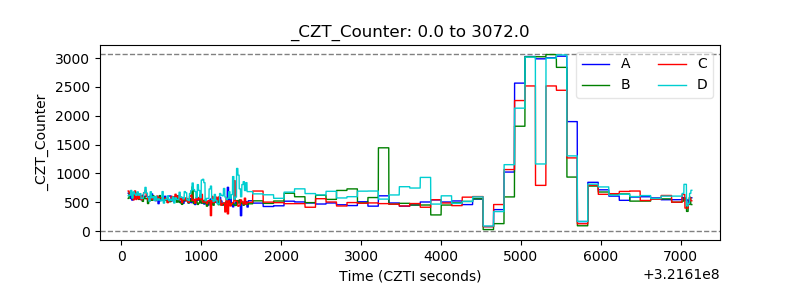

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

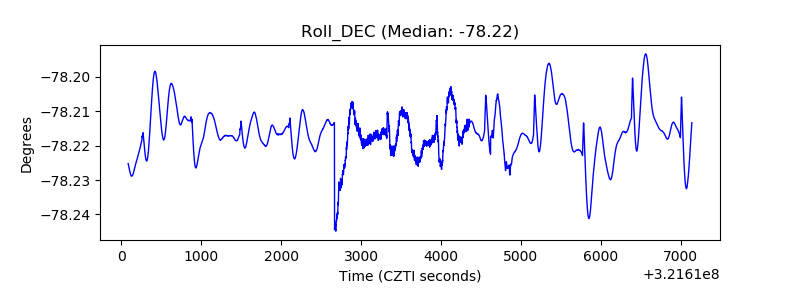

| _Roll_DEC |  |

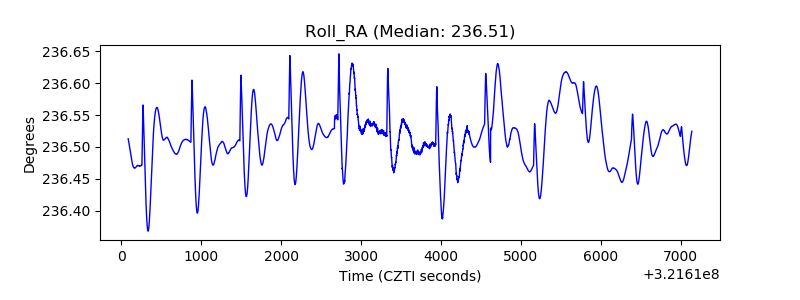

| _Roll_RA |  |
| Veto Counter |  |
