| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_165T01_9000003558_24074cztM0_level2.evt | modeM0/AS1A07_165T01_9000003558_24074cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,218,880 | 129,666,240 |
| Size | 446.5 MB | 123.7 MB |
| Events in quadrant A | 3,080,697 | 882,232 |
| Events in quadrant B | 3,244,262 | 891,553 |
| Events in quadrant C | 3,145,540 | 859,257 |
| Events in quadrant D | 4,269,225 | 842,244 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13319 | 1 |
| B | 0 | 13715 | 1 |
| C | 0 | 13418 | 2 |
| D | 0 | 16956 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6478 | 121 | 1.867860% |
| B | 6479 | 158 | 2.438648% |
| C | 6478 | 164 | 2.531646% |
| D | 6478 | 157 | 2.423588% |

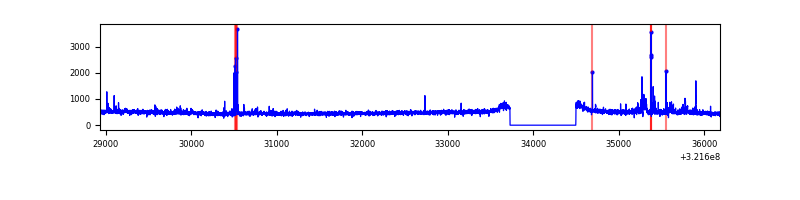

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7248 | 6478 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7249 | 6479 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7248 | 6478 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7248 | 6478 | 38 | 38 | 0.52% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10832 | 62.93 | 796 | 779 | 159.7 |
| A | 0 | 226 | 6925 | 38.47 | 796 | 779 | 159.7 |
| A | 3 | 137 | 6746 | 37.35 | 796 | 779 | 159.7 |
| B | 0 | 229 | 48407 | 324.69 | 790 | 772 | 146.7 |
| B | 0 | 189 | 44671 | 299.23 | 790 | 772 | 146.7 |
| B | 15 | 33 | 35967 | 239.9 | 790 | 772 | 146.7 |
| C | 14 | 238 | 123107 | 700.27 | 761 | 765 | 174.7 |
| C | 0 | 239 | 27266 | 151.69 | 761 | 765 | 174.7 |
| C | 7 | 247 | 19600 | 107.81 | 761 | 765 | 174.7 |
| D | 8 | 195 | 876629 | 4714.41 | 775 | 752 | 185.8 |
| D | 1 | 52 | 430583 | 2313.57 | 775 | 752 | 185.8 |
| D | 2 | 234 | 32311 | 169.87 | 775 | 752 | 185.8 |

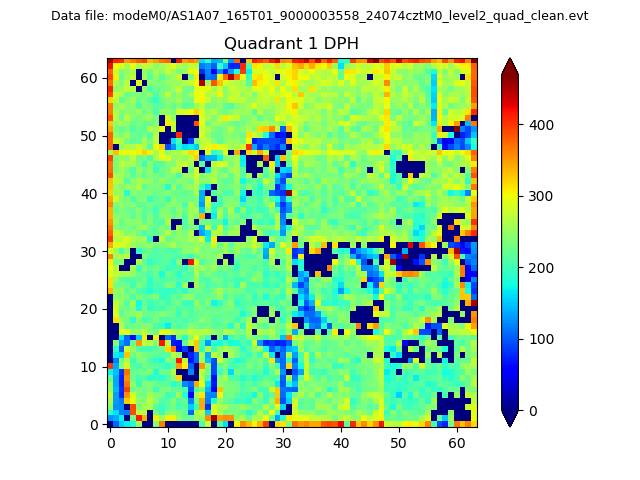

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

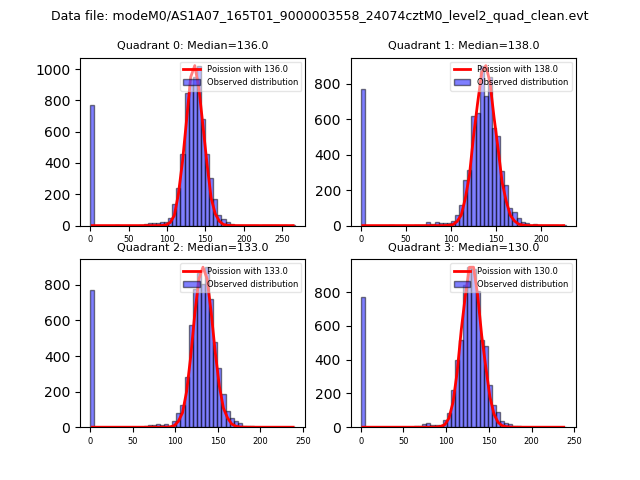

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

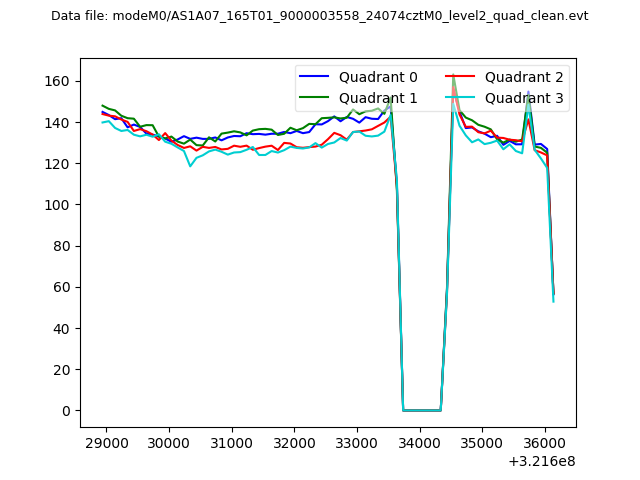

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

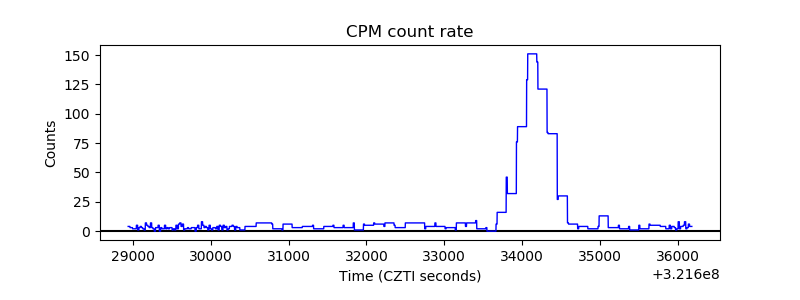

| _CPM_Rate |  |

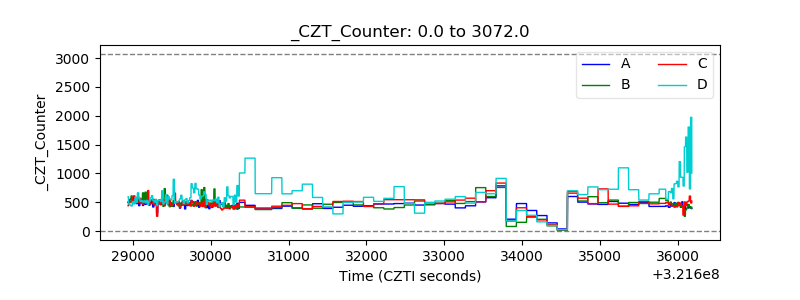

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

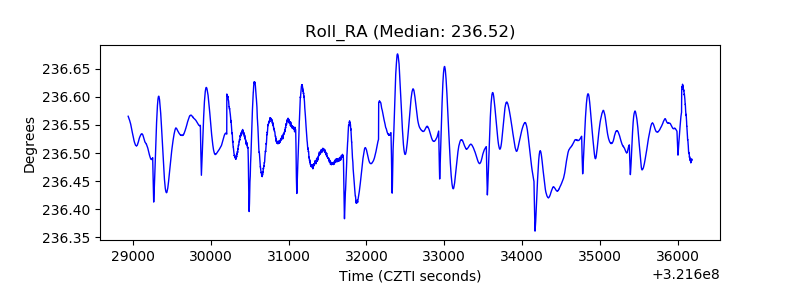

| _Roll_RA |  |
| Veto Counter |  |
