| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_182T01_9000003560_24080cztM0_level2.evt | modeM0/AS1T03_182T01_9000003560_24080cztM0_level2_quad_clean.evt |
| Size (bytes) | 736,038,720 | 143,809,920 |
| Size | 701.9 MB | 137.1 MB |
| Events in quadrant A | 4,961,727 | 917,521 |
| Events in quadrant B | 5,232,267 | 935,231 |
| Events in quadrant C | 5,247,459 | 901,335 |
| Events in quadrant D | 6,139,598 | 875,682 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 212 | 0 |
| B | 0 | 212 | 0 |
| C | 0 | 212 | 0 |
| D | 0 | 212 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21468 | 2 |
| B | 0 | 22318 | 2 |
| C | 0 | 21827 | 2 |
| D | 0 | 25288 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10487 | 58 | 0.553066% |
| B | 10486 | 90 | 0.858287% |
| C | 10486 | 117 | 1.115773% |
| D | 10486 | 79 | 0.753385% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

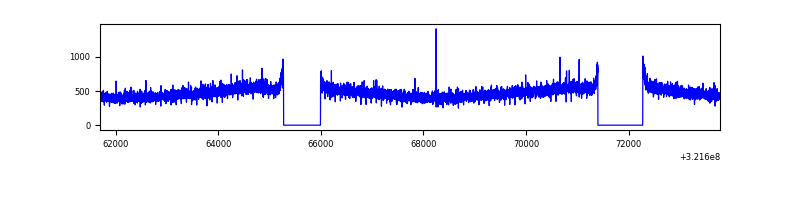

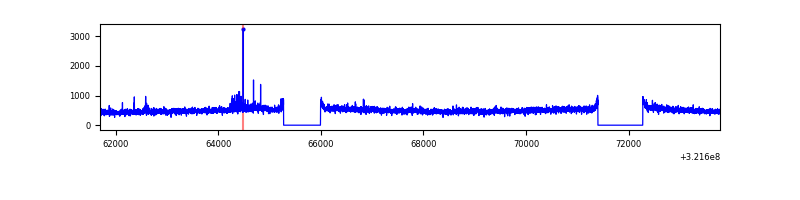

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12082 | 10489 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12081 | 10487 | 3 | 3 | 0.02% | 0.03% |  |
| C | 12081 | 10487 | 1 | 1 | 0.01% | 0.01% |  |
| D | 12081 | 10488 | 14 | 14 | 0.12% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 17332 | 62.17 | 1285 | 1255 | 258.6 |
| A | 3 | 137 | 11313 | 38.89 | 1285 | 1255 | 258.6 |
| A | 0 | 226 | 10873 | 37.19 | 1285 | 1255 | 258.6 |
| B | 0 | 197 | 75467 | 304.07 | 1279 | 1247 | 244.1 |
| B | 0 | 189 | 42358 | 168.43 | 1279 | 1247 | 244.1 |
| B | 12 | 111 | 29686 | 116.51 | 1279 | 1247 | 244.1 |
| C | 14 | 238 | 197355 | 670.61 | 1241 | 1250 | 292.4 |
| C | 7 | 247 | 176206 | 598.29 | 1241 | 1250 | 292.4 |
| C | 0 | 239 | 18592 | 59.3 | 1241 | 1250 | 292.4 |
| D | 8 | 195 | 1111521 | 3641.05 | 1251 | 1214 | 304.9 |
| D | 1 | 52 | 179331 | 584.1 | 1251 | 1214 | 304.9 |
| D | 11 | 176 | 69432 | 223.71 | 1251 | 1214 | 304.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

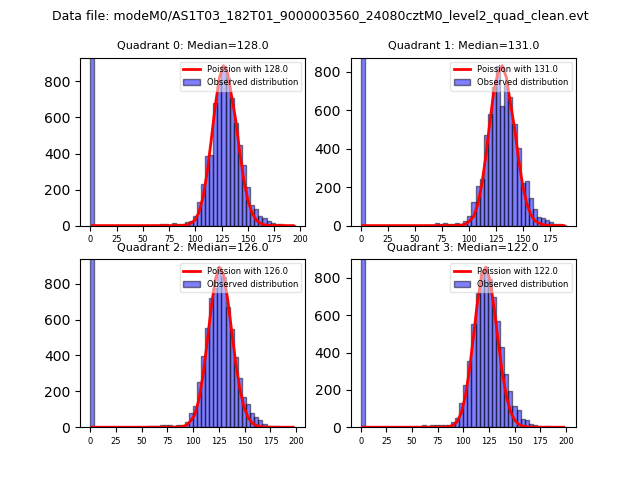

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

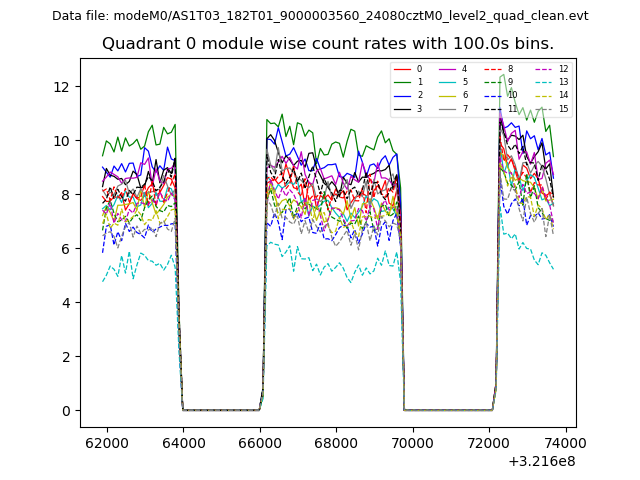

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

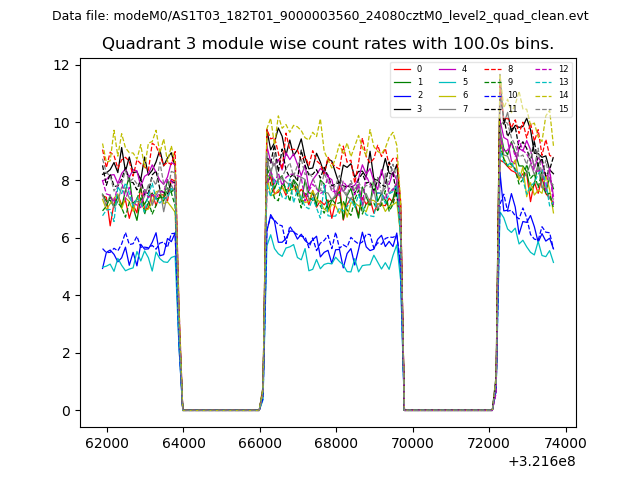

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

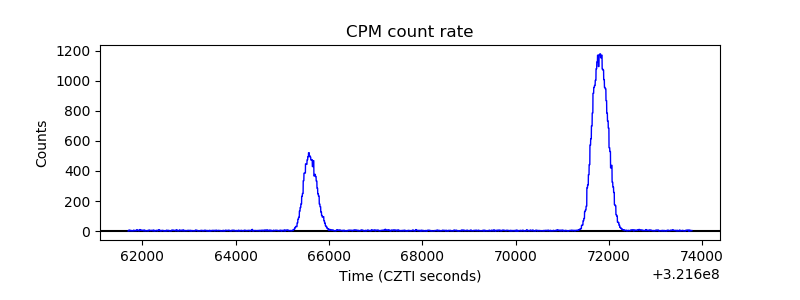

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

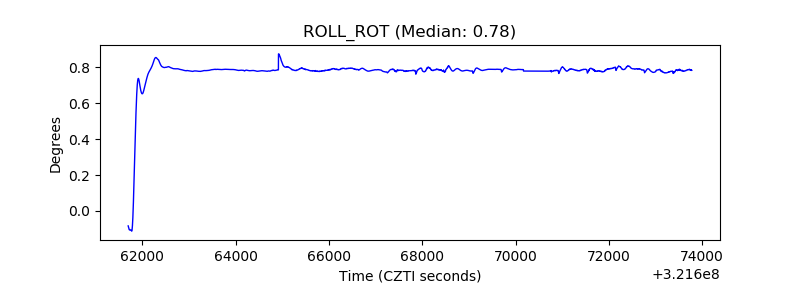

| _ROLL_ROT |  |

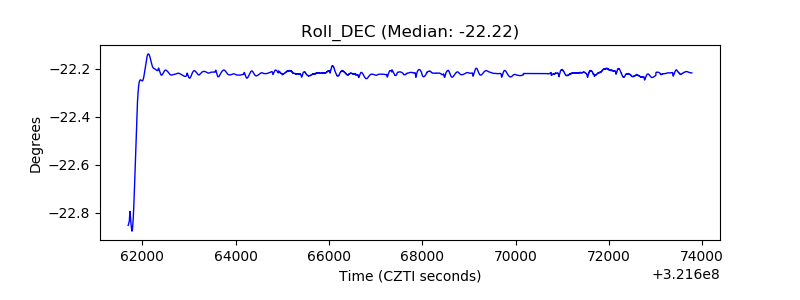

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
