| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_182T01_9000003560_24081cztM0_level2.evt | modeM0/AS1T03_182T01_9000003560_24081cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,668,160 | 101,018,880 |
| Size | 481.3 MB | 96.3 MB |
| Events in quadrant A | 3,444,943 | 646,573 |
| Events in quadrant B | 3,531,891 | 661,940 |
| Events in quadrant C | 3,543,137 | 641,304 |
| Events in quadrant D | 4,285,625 | 618,902 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14595 | 2 |
| B | 0 | 14835 | 2 |
| C | 0 | 14786 | 2 |
| D | 0 | 17410 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7041 | 42 | 0.596506% |
| B | 7042 | 54 | 0.766828% |
| C | 7042 | 85 | 1.207043% |
| D | 7042 | 230 | 3.266118% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8936 | 7043 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8937 | 7044 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8937 | 7044 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8937 | 7044 | 172 | 172 | 1.92% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11915 | 61.44 | 889 | 869 | 179.8 |
| A | 2 | 250 | 10506 | 53.61 | 889 | 869 | 179.8 |
| A | 3 | 137 | 7703 | 38.01 | 889 | 869 | 179.8 |
| B | 12 | 111 | 20312 | 113.97 | 893 | 871 | 170.6 |
| B | 11 | 111 | 17635 | 98.28 | 893 | 871 | 170.6 |
| B | 14 | 111 | 15278 | 84.46 | 893 | 871 | 170.6 |
| C | 14 | 238 | 135634 | 658.77 | 866 | 873 | 204.6 |
| C | 7 | 247 | 23345 | 109.85 | 866 | 873 | 204.6 |
| C | 3 | 233 | 7264 | 31.24 | 866 | 873 | 204.6 |
| D | 11 | 176 | 508144 | 2370.52 | 866 | 841 | 214.0 |
| D | 8 | 195 | 372605 | 1737.18 | 866 | 841 | 214.0 |
| D | 1 | 52 | 91352 | 422.94 | 866 | 841 | 214.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

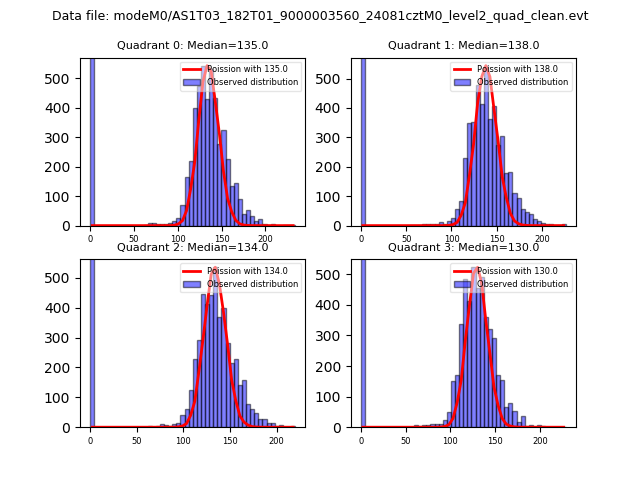

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

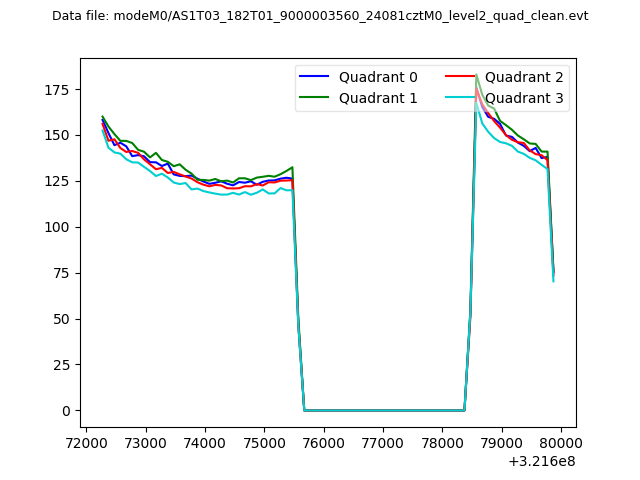

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

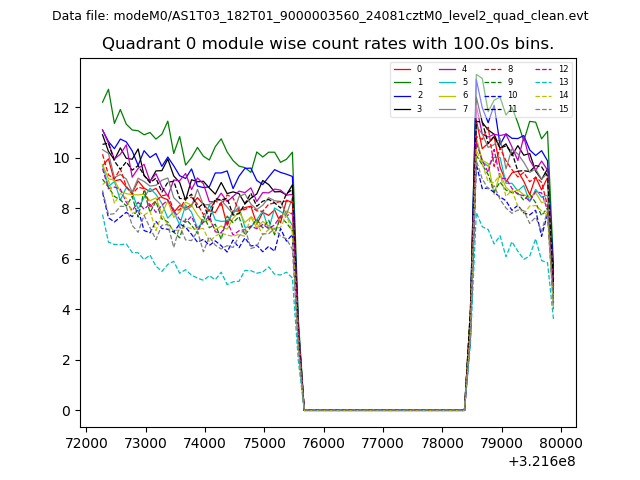

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

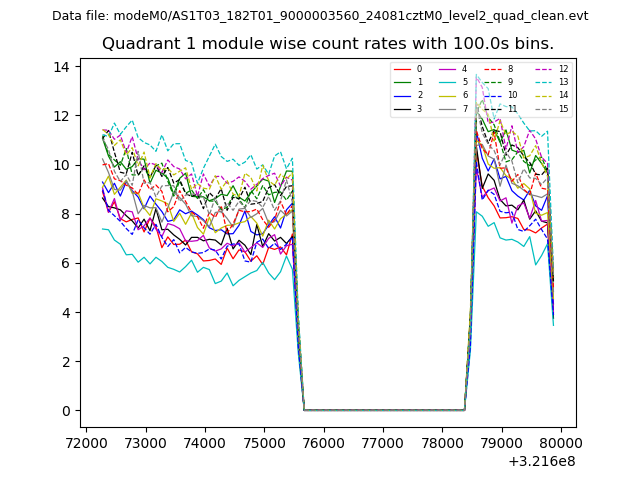

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

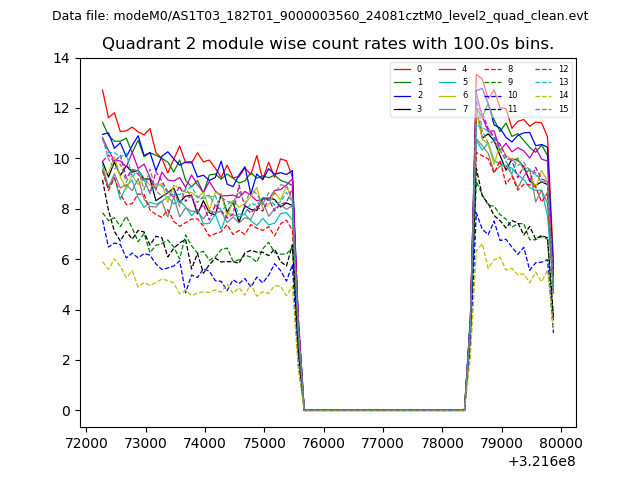

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

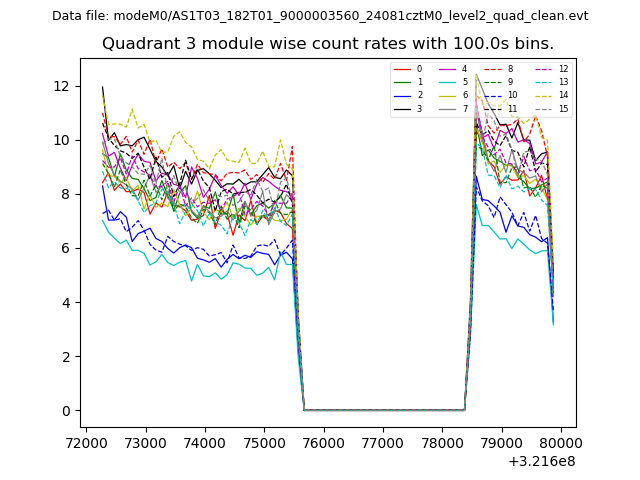

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

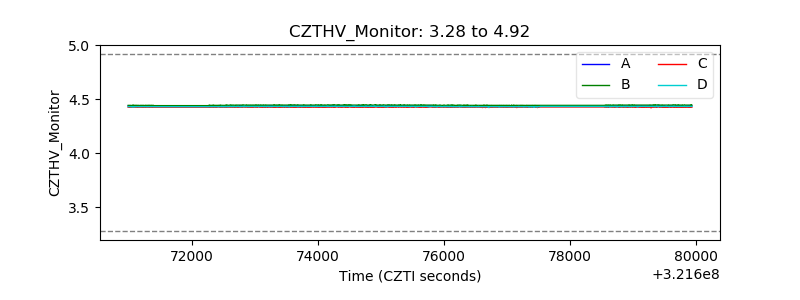

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

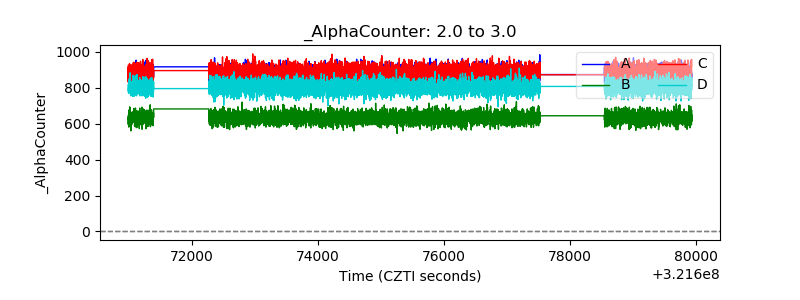

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
