| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_182T01_9000003560_24085cztM0_level2.evt | modeM0/AS1T03_182T01_9000003560_24085cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,637,440 | 83,079,360 |
| Size | 458.4 MB | 79.2 MB |
| Events in quadrant A | 2,987,021 | 544,489 |
| Events in quadrant B | 3,697,628 | 547,614 |
| Events in quadrant C | 3,007,673 | 523,488 |
| Events in quadrant D | 4,483,699 | 508,078 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11989 | 1 |
| B | 0 | 14326 | 1 |
| C | 0 | 12038 | 1 |
| D | 0 | 17275 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5607 | 26 | 0.463706% |
| B | 5608 | 205 | 3.655492% |
| C | 5608 | 55 | 0.980742% |
| D | 5608 | 91 | 1.622682% |

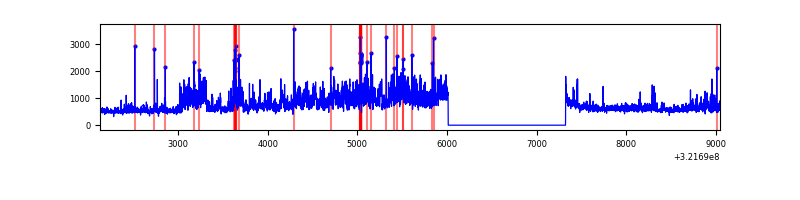

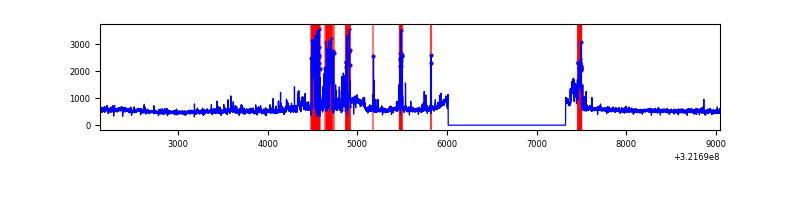

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6917 | 5608 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6918 | 5609 | 136 | 136 | 1.97% | 2.42% |  |
| C | 6918 | 5609 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6918 | 5609 | 40 | 40 | 0.58% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 250 | 12147 | 73.46 | 771 | 759 | 155.0 |
| A | 13 | 254 | 8864 | 52.28 | 771 | 759 | 155.0 |
| A | 0 | 226 | 6844 | 39.25 | 771 | 759 | 155.0 |
| B | 0 | 197 | 360429 | 2585.99 | 750 | 736 | 139.1 |
| B | 0 | 245 | 320655 | 2300.03 | 750 | 736 | 139.1 |
| B | 0 | 189 | 25986 | 181.53 | 750 | 736 | 139.1 |
| C | 14 | 238 | 117434 | 685.16 | 735 | 741 | 170.3 |
| C | 7 | 247 | 16176 | 90.63 | 735 | 741 | 170.3 |
| C | 3 | 233 | 5288 | 26.7 | 735 | 741 | 170.3 |
| D | 8 | 195 | 909218 | 5025.06 | 749 | 730 | 180.8 |
| D | 1 | 52 | 475339 | 2625.17 | 749 | 730 | 180.8 |
| D | 12 | 218 | 110081 | 604.85 | 749 | 730 | 180.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

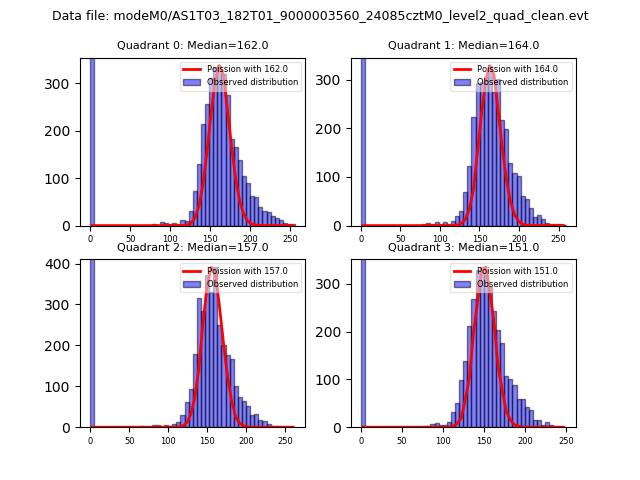

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

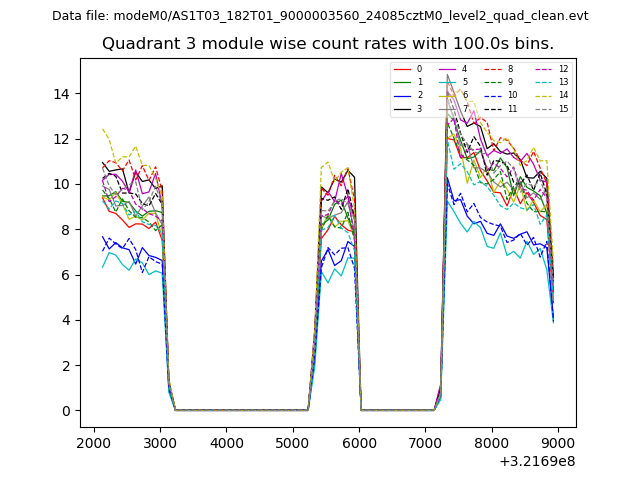

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

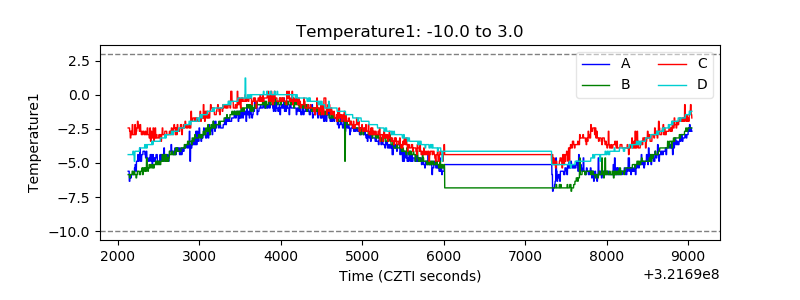

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

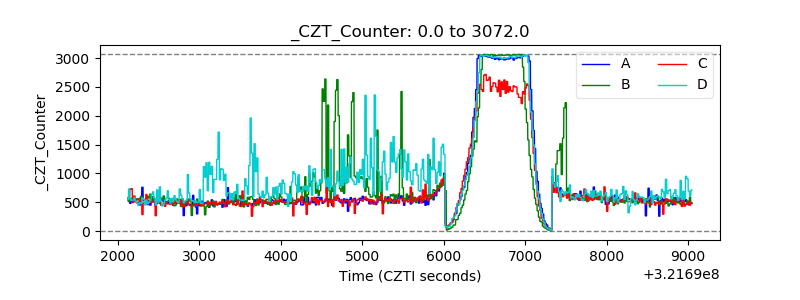

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
