| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T15_9000003562_24101cztM0_level2.evt | modeM0/AS1A07_027T15_9000003562_24101cztM0_level2_quad_clean.evt |
| Size (bytes) | 336,579,840 | 43,545,600 |
| Size | 321.0 MB | 41.5 MB |
| Events in quadrant A | 2,139,869 | 266,142 |
| Events in quadrant B | 2,136,864 | 268,009 |
| Events in quadrant C | 2,114,234 | 254,685 |
| Events in quadrant D | 3,536,905 | 254,185 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8673 | 1 |
| B | 0 | 8629 | 1 |
| C | 0 | 8541 | 1 |
| D | 0 | 13363 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3896 | 18 | 0.462012% |
| B | 3896 | 16 | 0.410678% |
| C | 3896 | 31 | 0.795688% |
| D | 3896 | 339 | 8.701232% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3896 | 3896 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3896 | 3896 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3896 | 3896 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3896 | 3896 | 279 | 279 | 7.16% | 7.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 250 | 13322 | 116.26 | 551 | 542 | 109.9 |
| A | 13 | 254 | 6789 | 56.83 | 551 | 542 | 109.9 |
| A | 0 | 226 | 4917 | 39.8 | 551 | 542 | 109.9 |
| B | 15 | 33 | 13220 | 125.5 | 538 | 528 | 101.1 |
| B | 12 | 111 | 11425 | 107.75 | 538 | 528 | 101.1 |
| B | 0 | 190 | 10089 | 94.54 | 538 | 528 | 101.1 |
| C | 14 | 238 | 84639 | 700.36 | 519 | 525 | 120.1 |
| C | 7 | 247 | 4315 | 31.56 | 519 | 525 | 120.1 |
| C | 13 | 61 | 3766 | 26.99 | 519 | 525 | 120.1 |
| D | 8 | 195 | 844995 | 6791.44 | 515 | 501 | 124.3 |
| D | 12 | 233 | 698331 | 5611.96 | 515 | 501 | 124.3 |
| D | 2 | 234 | 16152 | 125.87 | 515 | 501 | 124.3 |

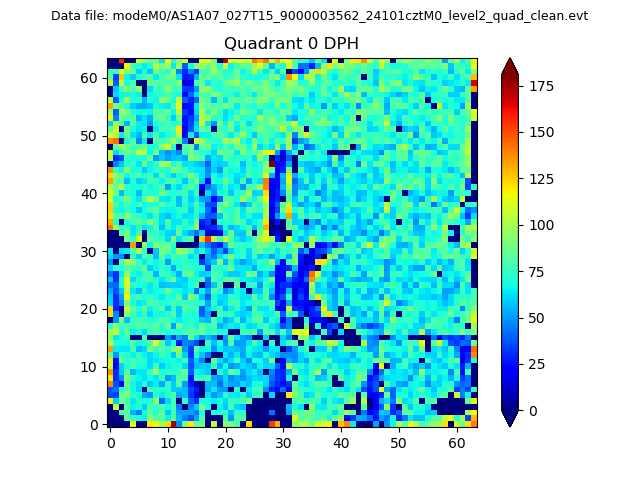

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

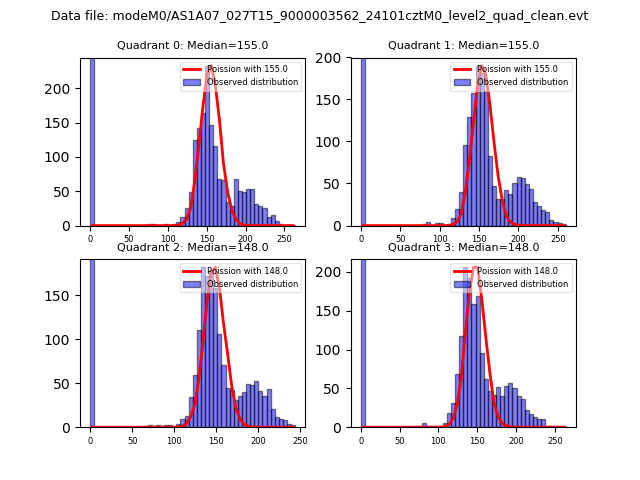

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

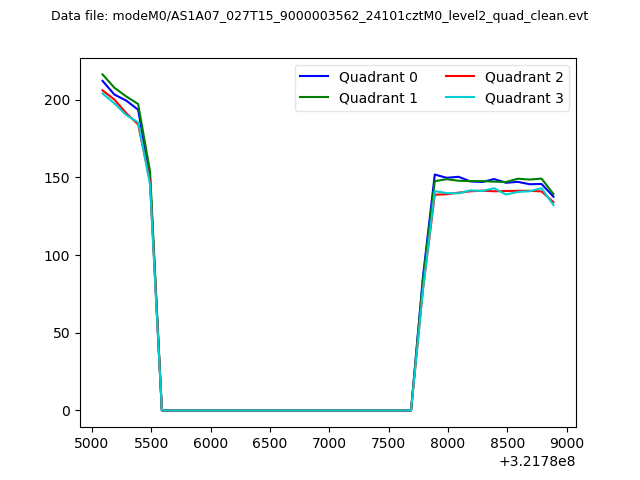

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

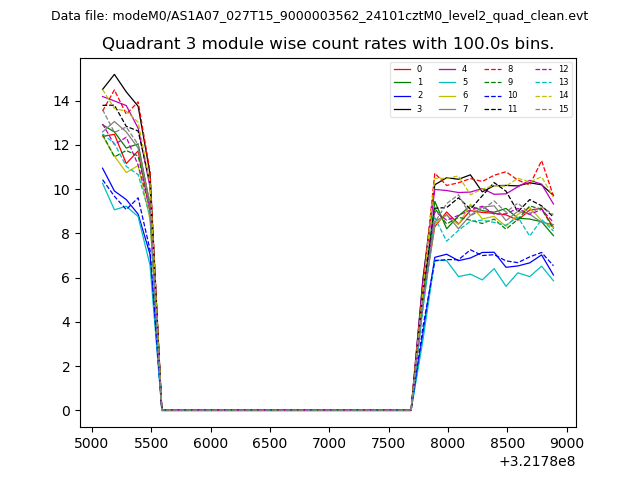

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

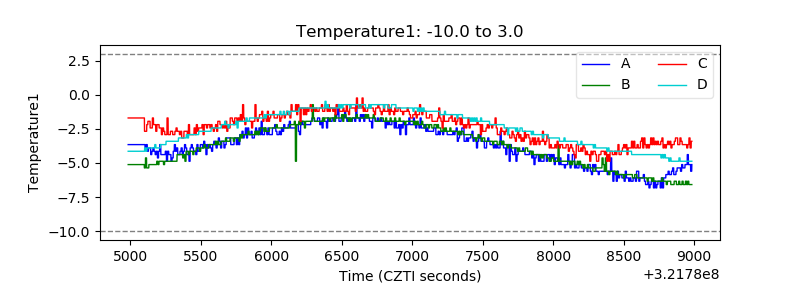

| Temperature 1 |  |

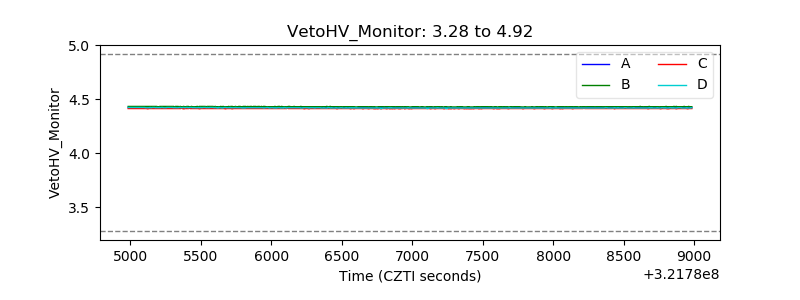

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

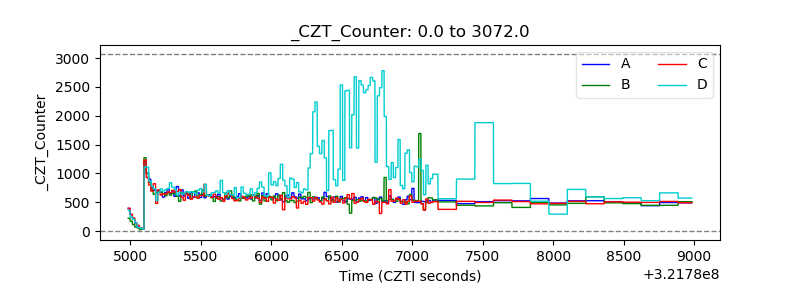

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
