| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C05_012T04_9000003564_24105cztM0_level2.evt | modeM0/AS1C05_012T04_9000003564_24105cztM0_level2_quad_clean.evt |
| Size (bytes) | 509,829,120 | 129,565,440 |
| Size | 486.2 MB | 123.6 MB |
| Events in quadrant A | 3,195,324 | 881,441 |
| Events in quadrant B | 3,377,044 | 889,146 |
| Events in quadrant C | 3,236,244 | 848,870 |
| Events in quadrant D | 5,164,984 | 825,800 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14089 | 1 |
| B | 0 | 14577 | 5 |
| C | 0 | 14116 | 1 |
| D | 0 | 20077 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6879 | 52 | 0.755924% |
| B | 6878 | 118 | 1.715615% |
| C | 6879 | 144 | 2.093328% |
| D | 6879 | 240 | 3.488879% |

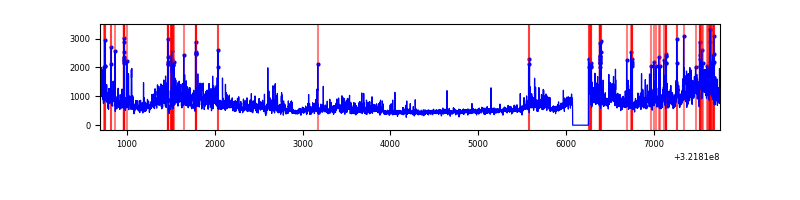

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7059 | 6880 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7058 | 6879 | 21 | 21 | 0.30% | 0.31% |  |
| C | 7059 | 6880 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7059 | 6880 | 106 | 106 | 1.50% | 1.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13477 | 76.25 | 824 | 806 | 166.2 |
| A | 4 | 2 | 9769 | 53.93 | 824 | 806 | 166.2 |
| A | 3 | 137 | 7208 | 38.52 | 824 | 806 | 166.2 |
| B | 5 | 172 | 73576 | 463.15 | 820 | 798 | 157.1 |
| B | 0 | 229 | 45863 | 286.79 | 820 | 798 | 157.1 |
| B | 12 | 111 | 18583 | 113.18 | 820 | 798 | 157.1 |
| C | 14 | 238 | 123951 | 666.57 | 790 | 794 | 184.8 |
| C | 7 | 247 | 9951 | 49.56 | 790 | 794 | 184.8 |
| C | 8 | 128 | 8913 | 43.94 | 790 | 794 | 184.8 |
| D | 8 | 195 | 1561763 | 8012.37 | 798 | 772 | 194.8 |
| D | 12 | 233 | 153599 | 784.44 | 798 | 772 | 194.8 |
| D | 1 | 52 | 152869 | 780.69 | 798 | 772 | 194.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

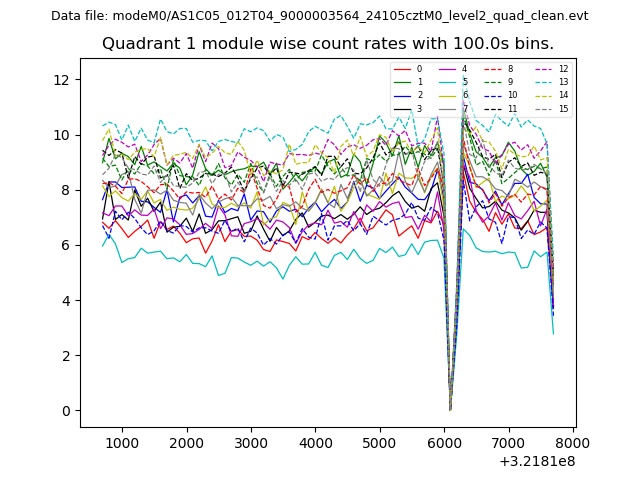

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

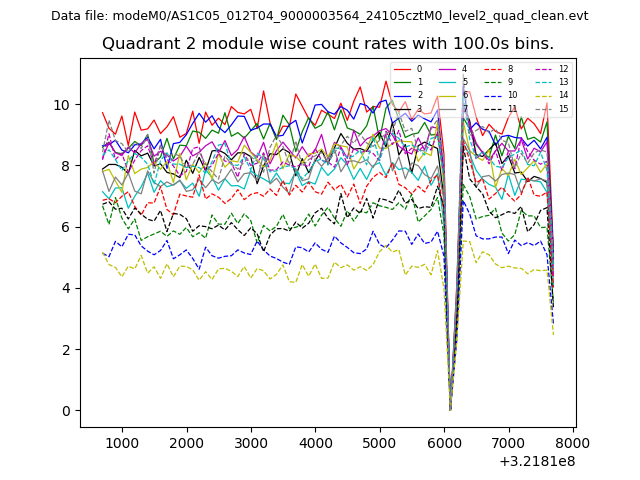

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

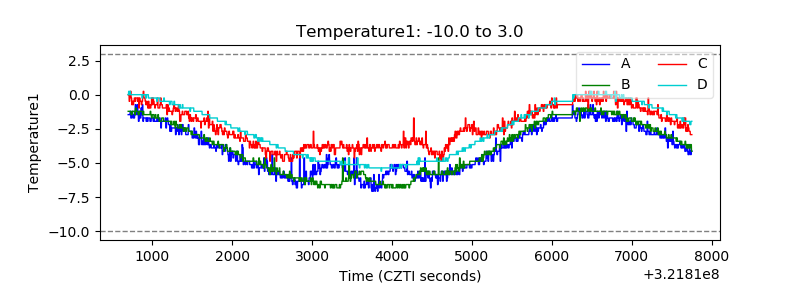

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

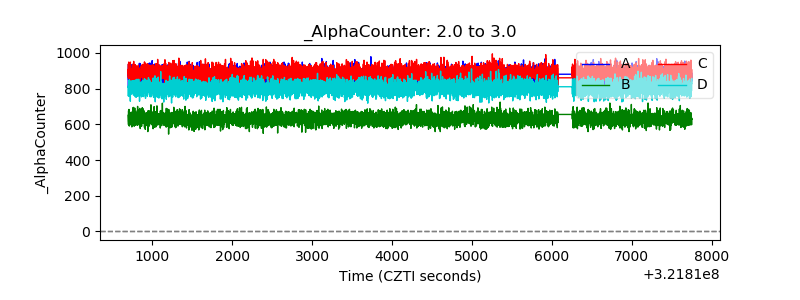

| Alpha Counter |  |
| _CPM_Rate |  |

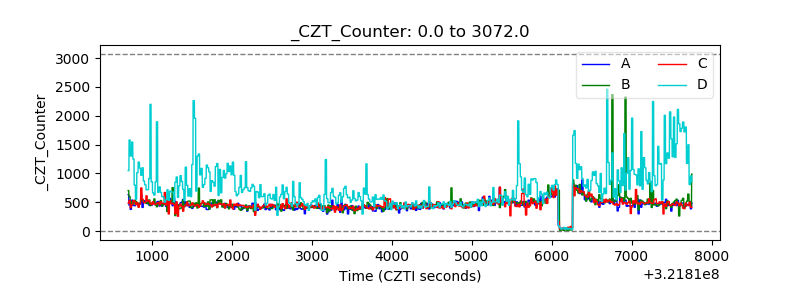

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

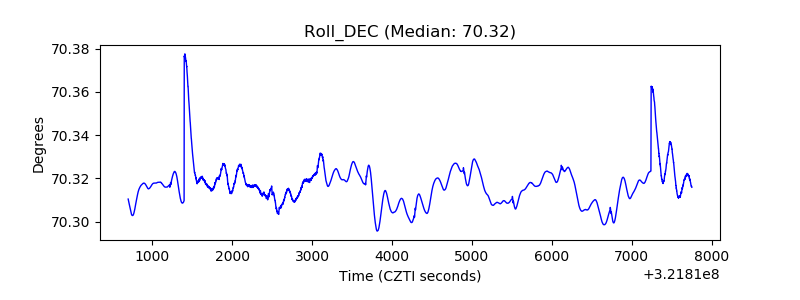

| _Roll_DEC |  |

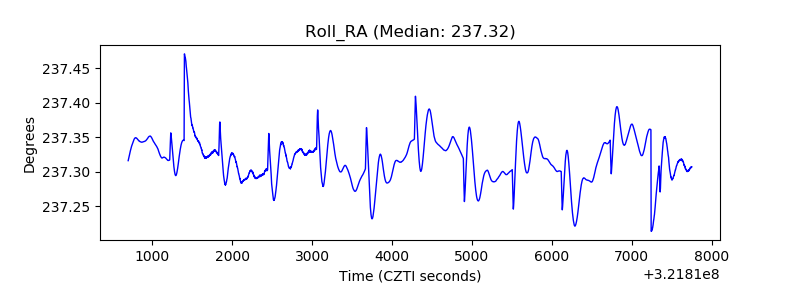

| _Roll_RA |  |
| Veto Counter |  |
