| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_069T01_9000003570_24130cztM0_level2.evt | modeM0/AS1A07_069T01_9000003570_24130cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,847,360 | 76,176,000 |
| Size | 497.7 MB | 72.6 MB |
| Events in quadrant A | 3,564,479 | 483,658 |
| Events in quadrant B | 3,639,177 | 490,221 |
| Events in quadrant C | 4,324,928 | 452,263 |
| Events in quadrant D | 3,845,922 | 438,248 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14243 | 2 |
| B | 0 | 14563 | 2 |
| C | 0 | 16783 | 2 |
| D | 0 | 15270 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6339 | 100 | 1.577536% |
| B | 6339 | 135 | 2.129673% |
| C | 6339 | 392 | 6.183941% |
| D | 6339 | 152 | 2.397855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7639 | 6339 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7639 | 6339 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7639 | 6339 | 175 | 175 | 2.29% | 2.76% |  |
| D | 7639 | 6340 | 71 | 71 | 0.93% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 250 | 10941 | 55.32 | 918 | 903 | 181.4 |
| A | 13 | 254 | 10580 | 53.33 | 918 | 903 | 181.4 |
| A | 3 | 1 | 9469 | 47.21 | 918 | 903 | 181.4 |
| B | 10 | 247 | 42393 | 245.49 | 910 | 893 | 169.1 |
| B | 12 | 111 | 19680 | 111.13 | 910 | 893 | 169.1 |
| B | 11 | 111 | 17479 | 98.11 | 910 | 893 | 169.1 |
| C | 0 | 239 | 771807 | 3980.73 | 842 | 851 | 193.7 |
| C | 14 | 238 | 135088 | 693.12 | 842 | 851 | 193.7 |
| C | 2 | 16 | 107562 | 550.99 | 842 | 851 | 193.7 |
| D | 8 | 195 | 335915 | 1593.29 | 864 | 839 | 210.3 |
| D | 12 | 218 | 162929 | 770.74 | 864 | 839 | 210.3 |
| D | 1 | 52 | 29081 | 134.29 | 864 | 839 | 210.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

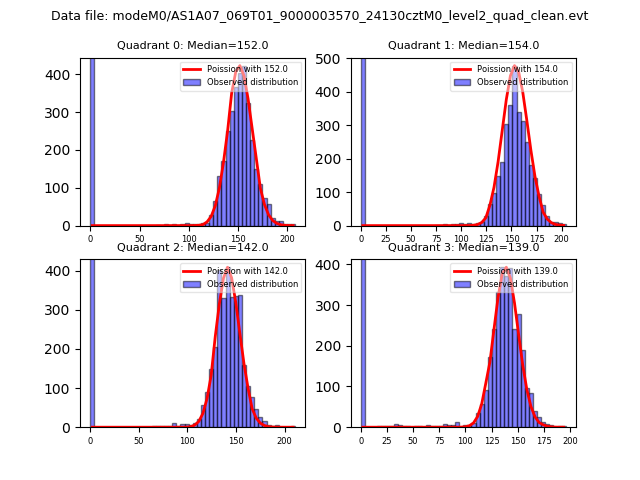

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

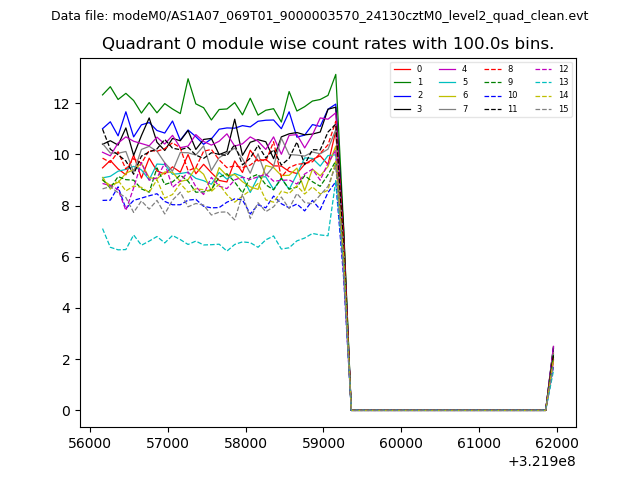

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

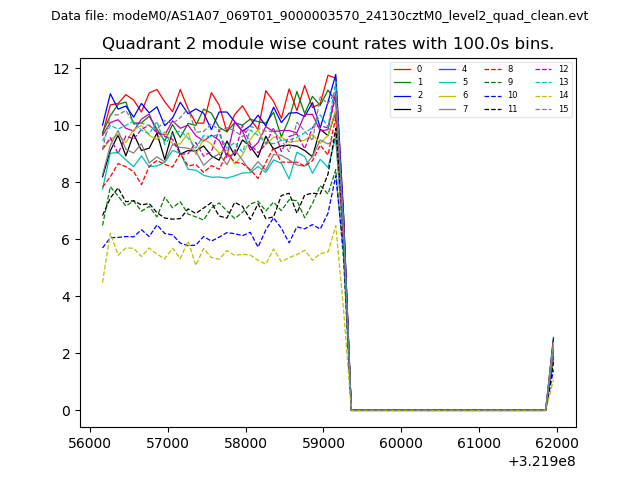

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

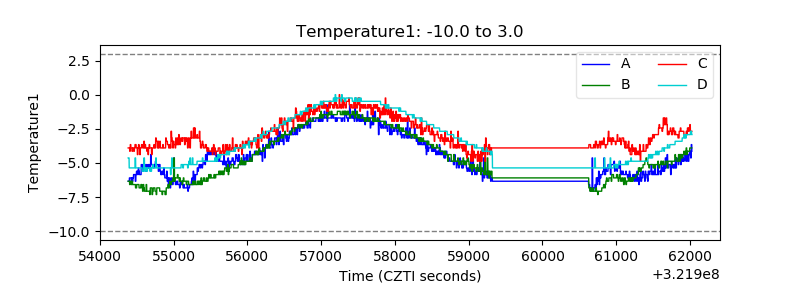

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

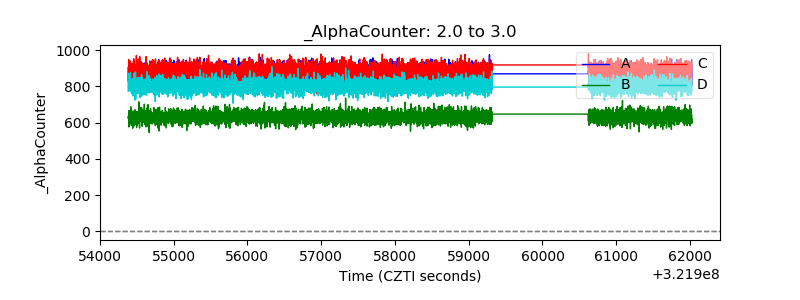

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

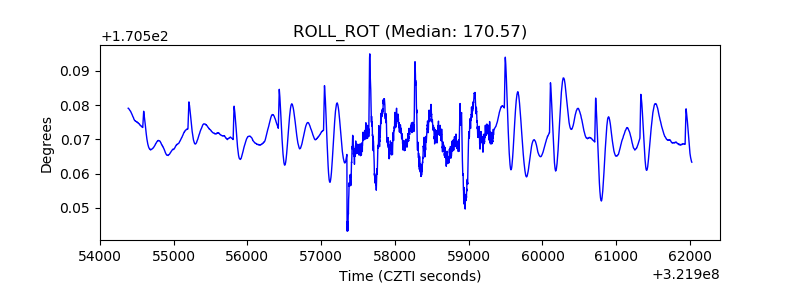

| _ROLL_ROT |  |
| _Roll_DEC |  |

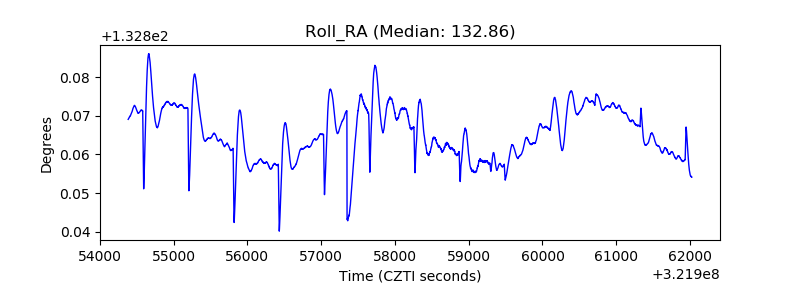

| _Roll_RA |  |
| Veto Counter |  |
