| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_069T01_9000003570_24132cztM0_level2.evt | modeM0/AS1A07_069T01_9000003570_24132cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,508,480 | 91,920,960 |
| Size | 517.4 MB | 87.7 MB |
| Events in quadrant A | 3,678,714 | 600,219 |
| Events in quadrant B | 4,683,362 | 556,861 |
| Events in quadrant C | 3,603,259 | 572,774 |
| Events in quadrant D | 3,987,715 | 564,434 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14996 | 2 |
| B | 0 | 18056 | 2 |
| C | 0 | 14876 | 2 |
| D | 0 | 16021 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7025 | 238 | 3.387900% |
| B | 7025 | 711 | 10.120996% |
| C | 7025 | 271 | 3.857651% |
| D | 7025 | 212 | 3.017794% |

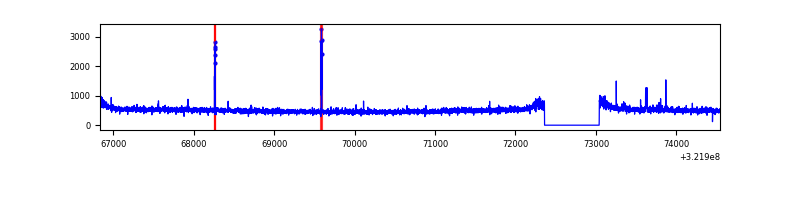

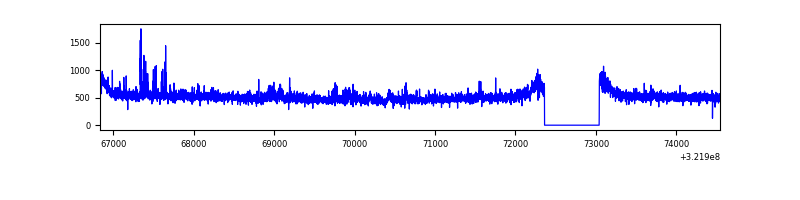

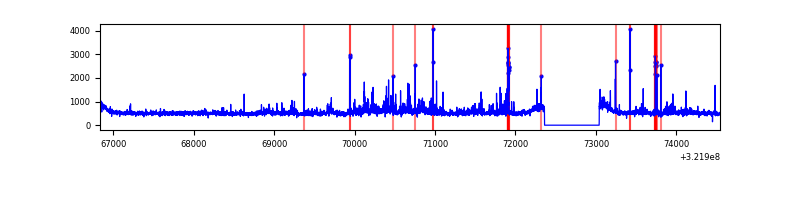

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

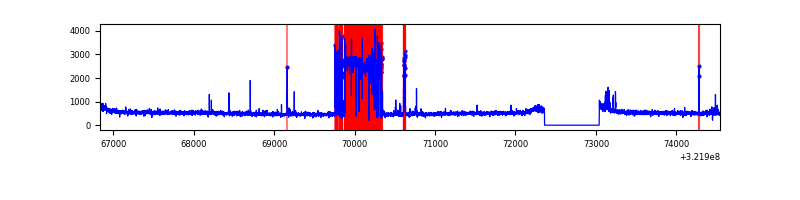

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7706 | 7026 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7706 | 7026 | 452 | 452 | 5.87% | 6.43% |  |
| C | 7706 | 7026 | 9 | 9 | 0.12% | 0.13% |  |
| D | 7706 | 7026 | 31 | 31 | 0.40% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 122204 | 657.04 | 920 | 900 | 184.6 |
| A | 13 | 254 | 11746 | 58.75 | 920 | 900 | 184.6 |
| A | 3 | 137 | 8010 | 38.51 | 920 | 900 | 184.6 |
| B | 0 | 245 | 1228824 | 7420.55 | 869 | 849 | 165.5 |
| B | 12 | 111 | 20152 | 116.65 | 869 | 849 | 165.5 |
| B | 6 | 36 | 18304 | 105.48 | 869 | 849 | 165.5 |
| C | 14 | 238 | 139569 | 684.37 | 867 | 872 | 202.7 |
| C | 2 | 16 | 39002 | 188.14 | 867 | 872 | 202.7 |
| C | 0 | 239 | 18010 | 84.56 | 867 | 872 | 202.7 |
| D | 1 | 52 | 290164 | 1336.03 | 891 | 865 | 216.5 |
| D | 8 | 195 | 233493 | 1074.32 | 891 | 865 | 216.5 |
| D | 12 | 227 | 51556 | 234.1 | 891 | 865 | 216.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

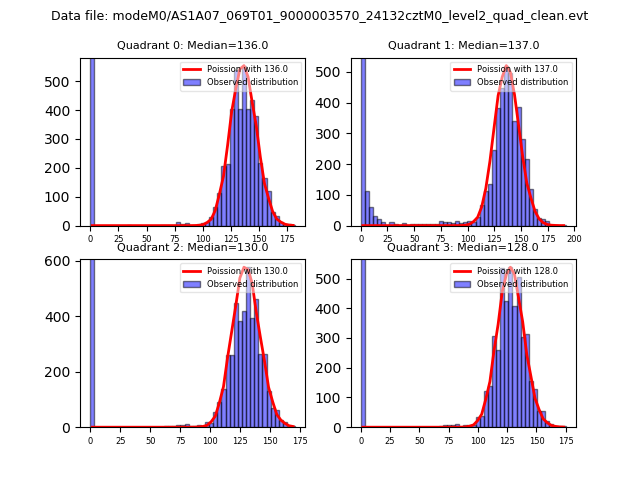

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

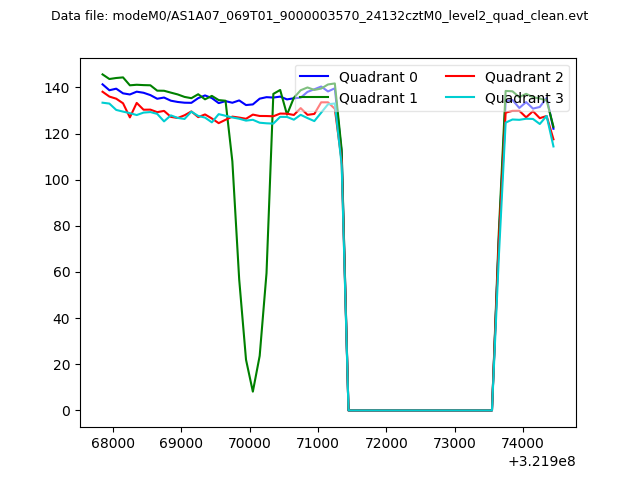

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

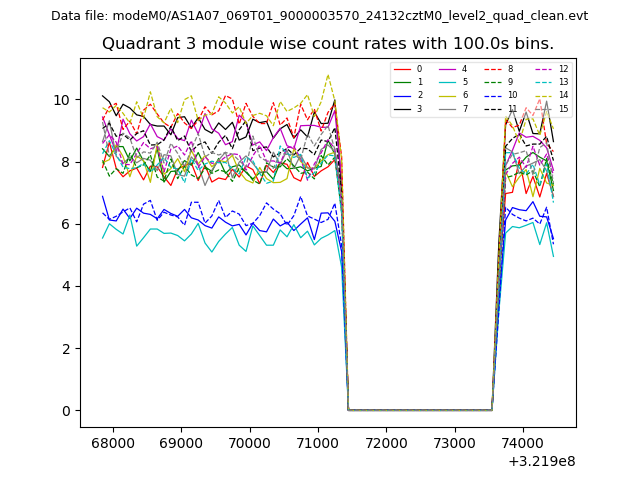

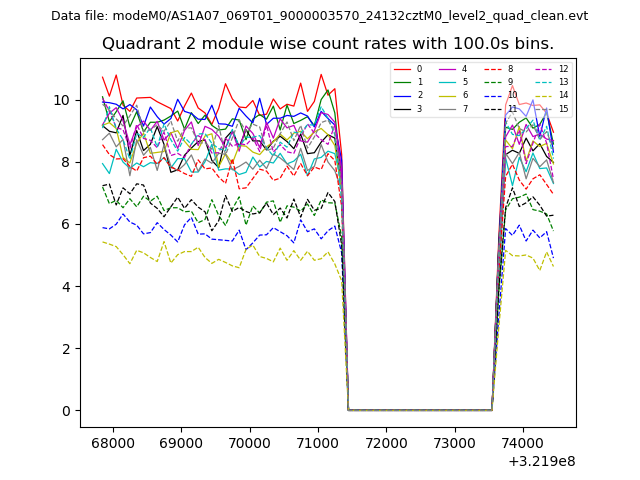

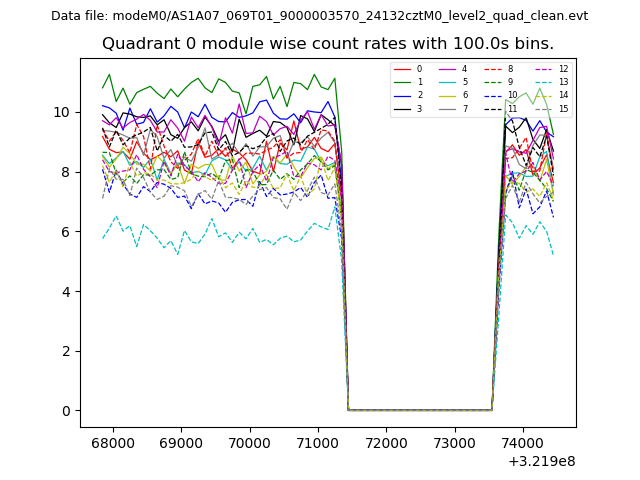

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

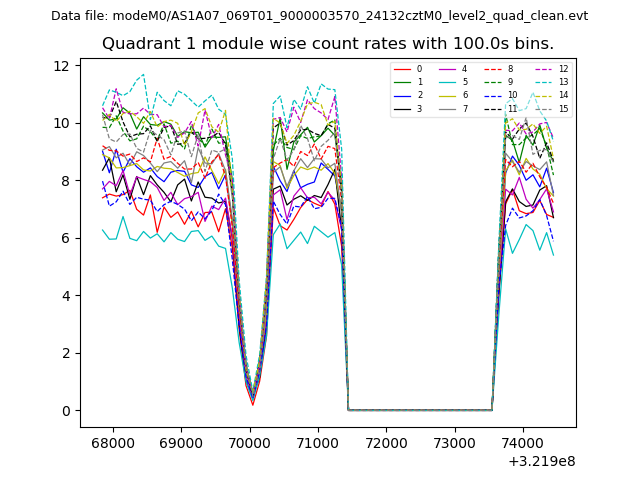

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

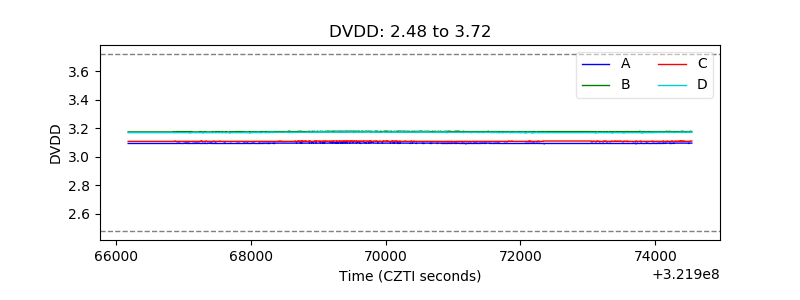

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

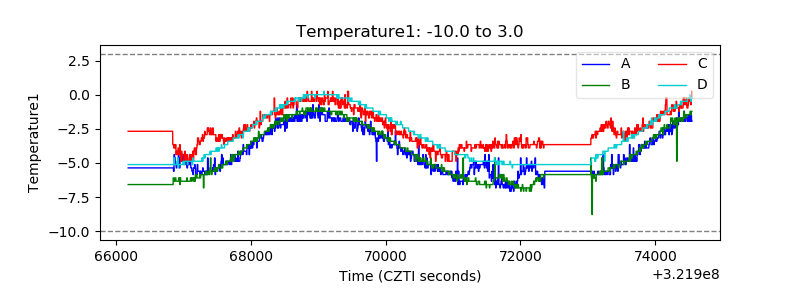

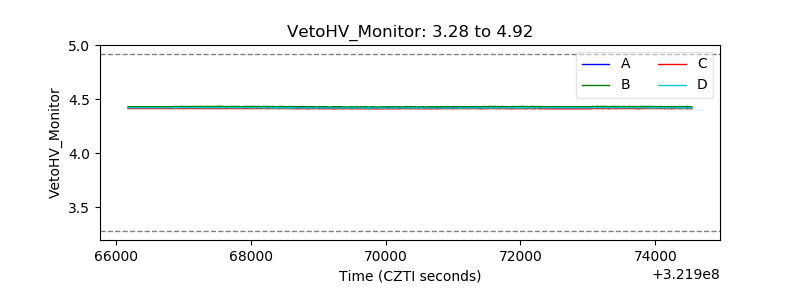

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

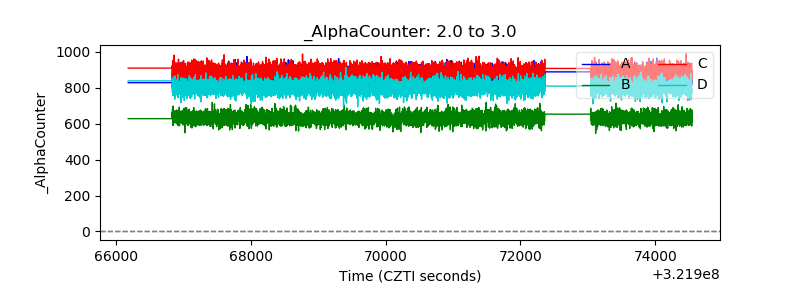

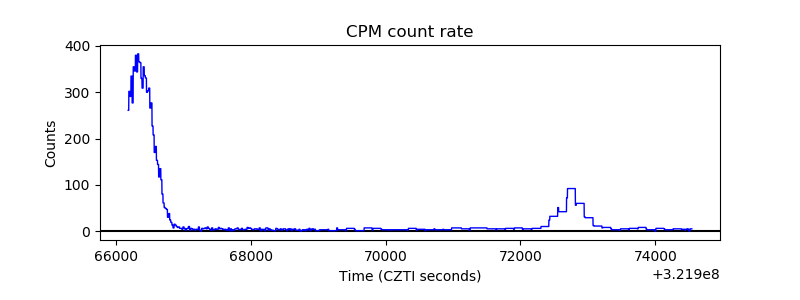

| Alpha Counter |  |
| _CPM_Rate |  |

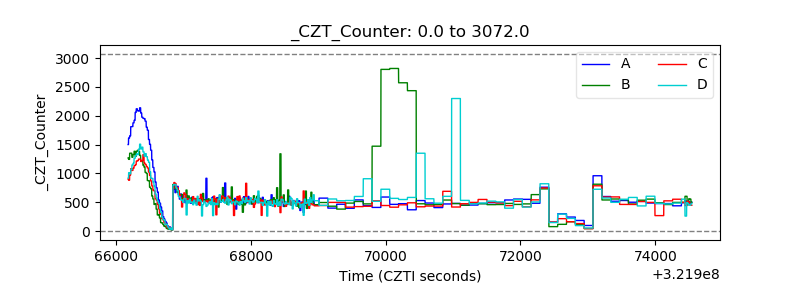

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

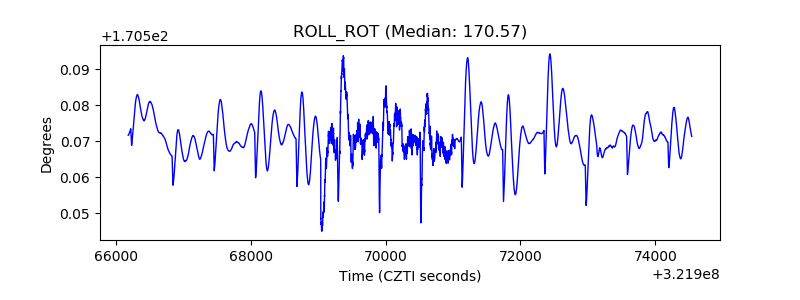

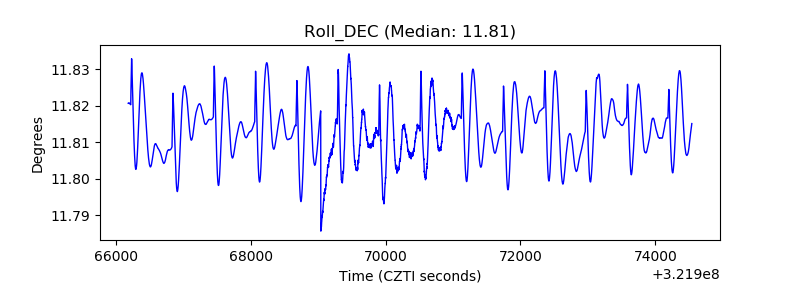

| _ROLL_ROT |  |
| _Roll_DEC |  |

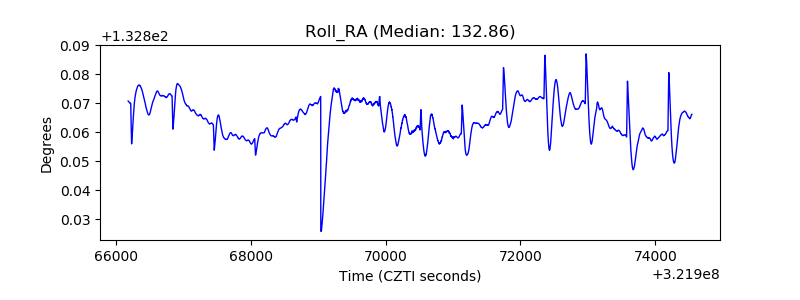

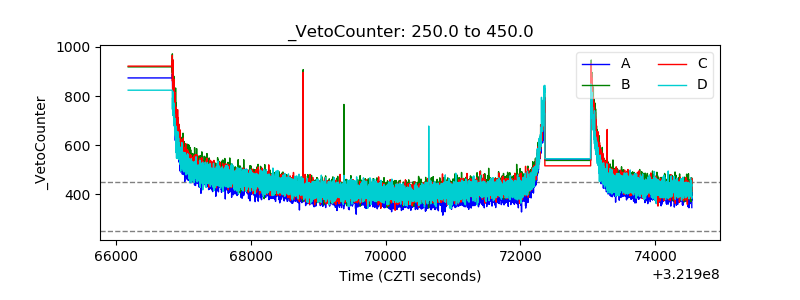

| _Roll_RA |  |
| Veto Counter |  |
