| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_047T02_9000003574_24149cztM0_level2.evt | modeM0/AS1A07_047T02_9000003574_24149cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,254,400 | 126,728,640 |
| Size | 509.5 MB | 120.9 MB |
| Events in quadrant A | 3,132,501 | 874,819 |
| Events in quadrant B | 3,364,106 | 872,281 |
| Events in quadrant C | 3,274,596 | 828,654 |
| Events in quadrant D | 5,947,773 | 789,117 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13843 | 1 |
| B | 0 | 14454 | 1 |
| C | 0 | 14215 | 1 |
| D | 0 | 22201 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6791 | 49 | 0.721543% |
| B | 6792 | 139 | 2.046525% |
| C | 6792 | 71 | 1.045347% |
| D | 6792 | 609 | 8.966431% |

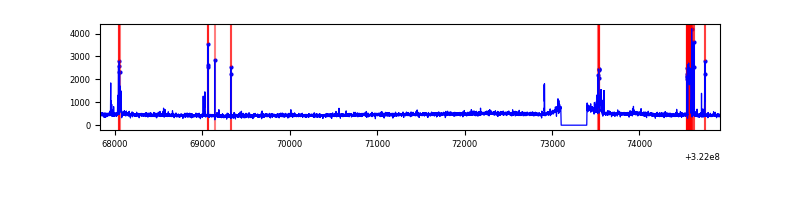

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7086 | 6792 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7087 | 6793 | 55 | 55 | 0.78% | 0.81% |  |
| C | 7087 | 6793 | 8 | 8 | 0.11% | 0.12% |  |
| D | 7087 | 6793 | 571 | 571 | 8.06% | 8.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11798 | 67.78 | 810 | 793 | 162.4 |
| A | 3 | 1 | 7216 | 39.56 | 810 | 793 | 162.4 |
| A | 3 | 137 | 7187 | 39.38 | 810 | 793 | 162.4 |
| B | 0 | 245 | 130780 | 857.3 | 798 | 778 | 151.6 |
| B | 5 | 172 | 60438 | 393.43 | 798 | 778 | 151.6 |
| B | 12 | 32 | 22668 | 144.35 | 798 | 778 | 151.6 |
| C | 14 | 238 | 122011 | 681.4 | 763 | 766 | 177.9 |
| C | 0 | 207 | 54949 | 304.51 | 763 | 766 | 177.9 |
| C | 0 | 239 | 49725 | 275.15 | 763 | 766 | 177.9 |
| D | 7 | 238 | 1850411 | 10111.55 | 760 | 739 | 182.9 |
| D | 1 | 52 | 717787 | 3919.86 | 760 | 739 | 182.9 |
| D | 6 | 112 | 244507 | 1332.6 | 760 | 739 | 182.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

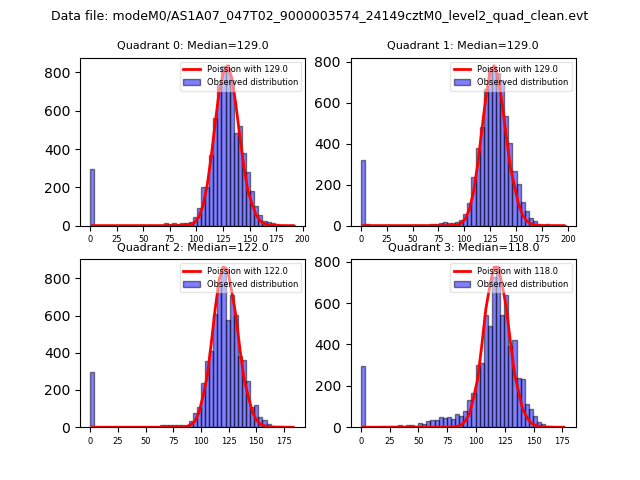

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

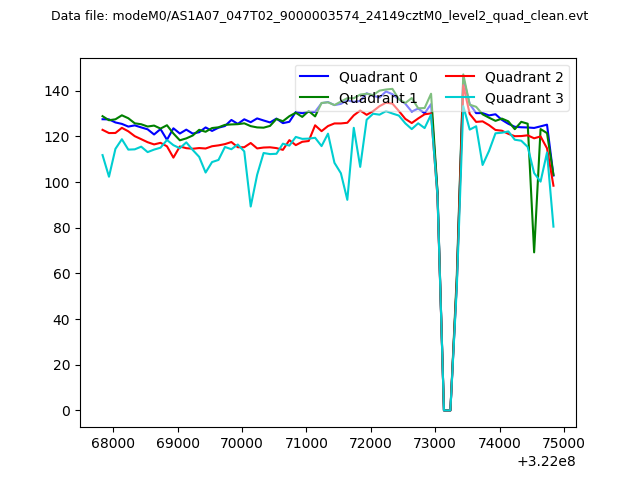

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

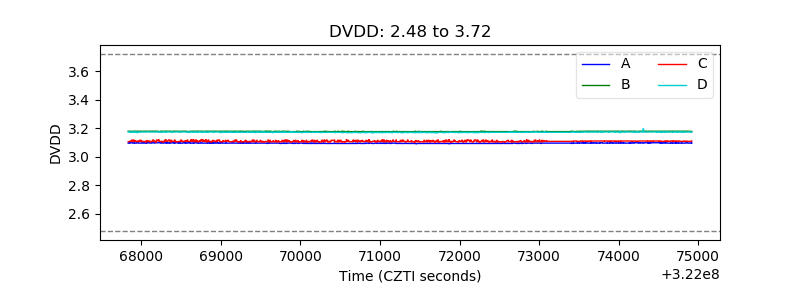

| D_VDD |  |

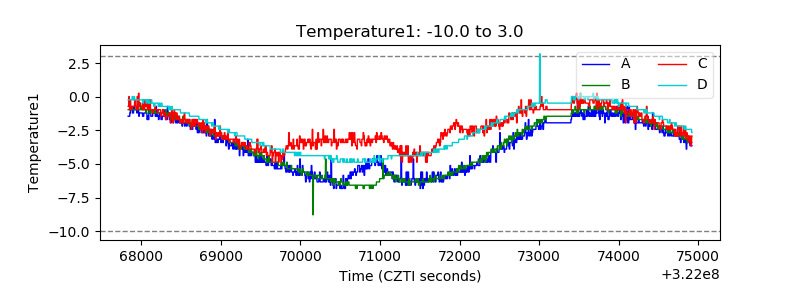

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

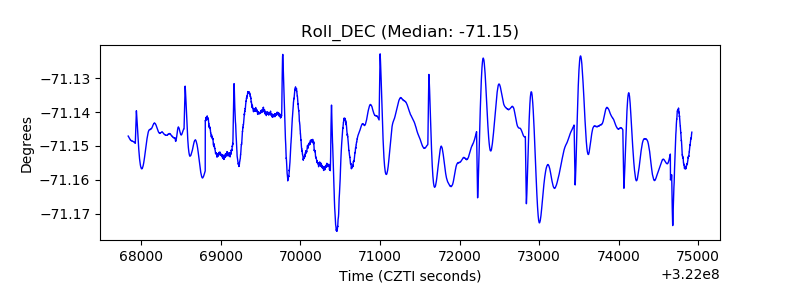

| _Roll_DEC |  |

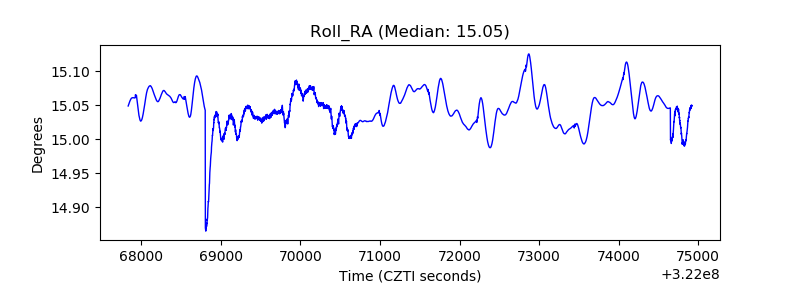

| _Roll_RA |  |

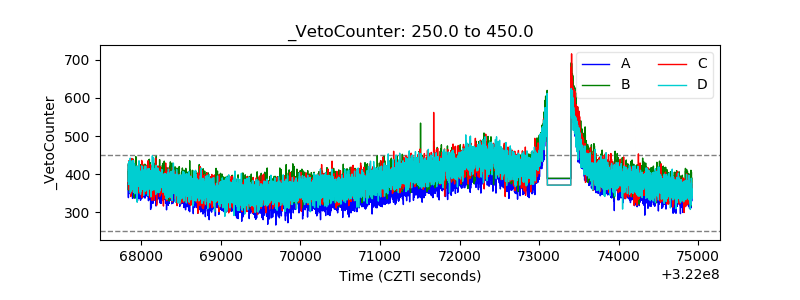

| Veto Counter |  |
