| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_047T06_9000003576_24153cztM0_level2.evt | modeM0/AS1A07_047T06_9000003576_24153cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,342,720 | 131,601,600 |
| Size | 446.6 MB | 125.5 MB |
| Events in quadrant A | 3,173,670 | 902,477 |
| Events in quadrant B | 3,321,515 | 913,764 |
| Events in quadrant C | 3,292,044 | 855,997 |
| Events in quadrant D | 3,937,357 | 842,766 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13766 | 2 |
| B | 0 | 14139 | 2 |
| C | 0 | 13975 | 2 |
| D | 0 | 16270 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6749 | 32 | 0.474144% |
| B | 6749 | 66 | 0.977923% |
| C | 6749 | 68 | 1.007557% |
| D | 6749 | 119 | 1.763224% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7734 | 6749 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7734 | 6750 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7734 | 6749 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7734 | 6749 | 78 | 78 | 1.01% | 1.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12045 | 68.34 | 821 | 804 | 164.5 |
| A | 3 | 137 | 7224 | 39.03 | 821 | 804 | 164.5 |
| A | 0 | 226 | 7041 | 37.92 | 821 | 804 | 164.5 |
| B | 0 | 189 | 50329 | 321.35 | 820 | 802 | 154.1 |
| B | 5 | 172 | 24452 | 153.45 | 820 | 802 | 154.1 |
| B | 0 | 229 | 20691 | 129.05 | 820 | 802 | 154.1 |
| C | 14 | 238 | 125458 | 684.61 | 783 | 788 | 182.1 |
| C | 3 | 233 | 40171 | 216.27 | 783 | 788 | 182.1 |
| C | 7 | 247 | 21402 | 113.2 | 783 | 788 | 182.1 |
| D | 7 | 238 | 646750 | 3403.29 | 789 | 768 | 189.8 |
| D | 1 | 52 | 145113 | 760.47 | 789 | 768 | 189.8 |
| D | 8 | 195 | 137670 | 721.25 | 789 | 768 | 189.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

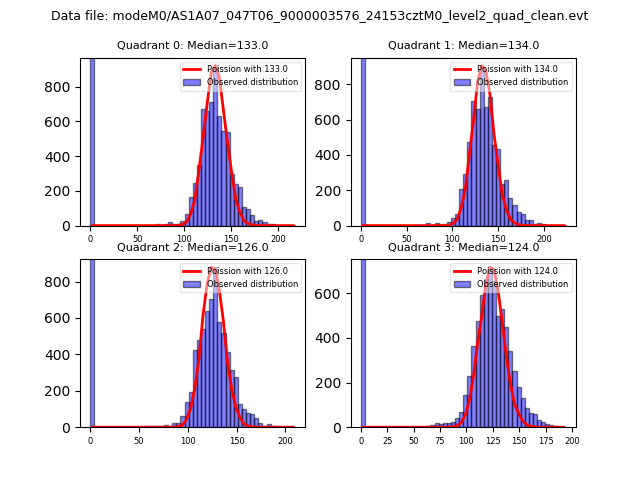

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

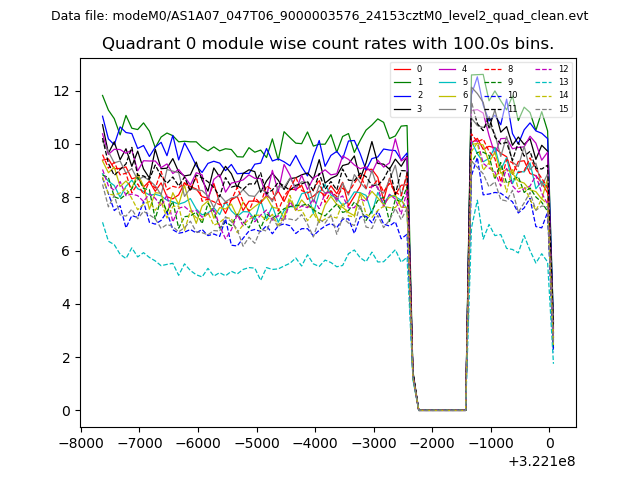

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

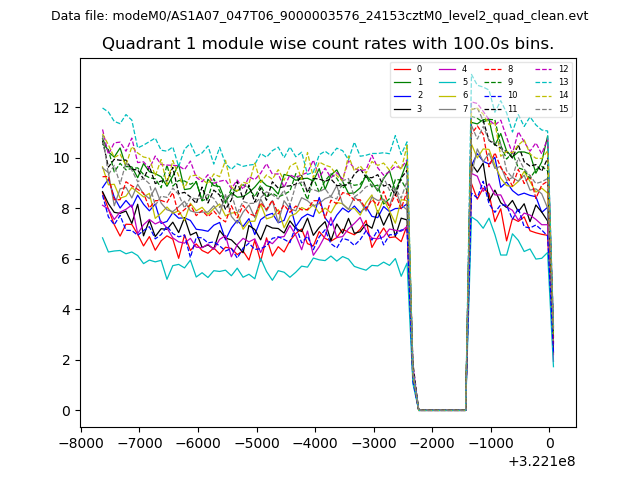

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

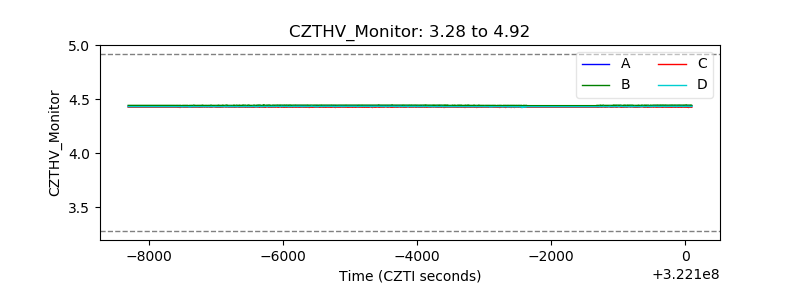

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

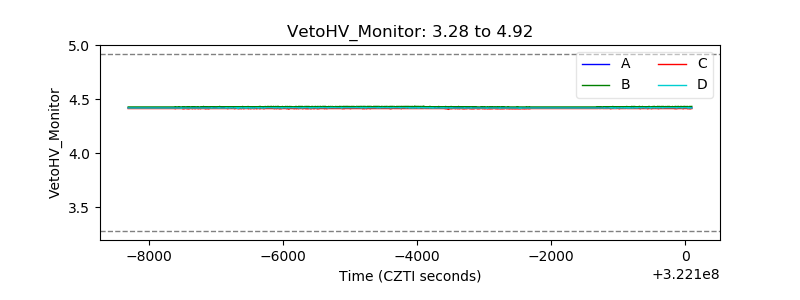

| Veto HV Monitor |  |

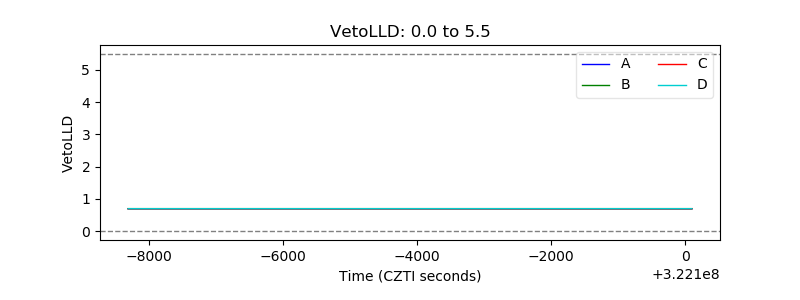

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

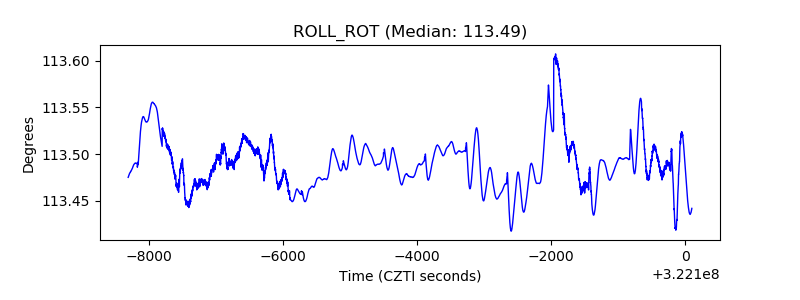

| _ROLL_ROT |  |
| _Roll_DEC |  |

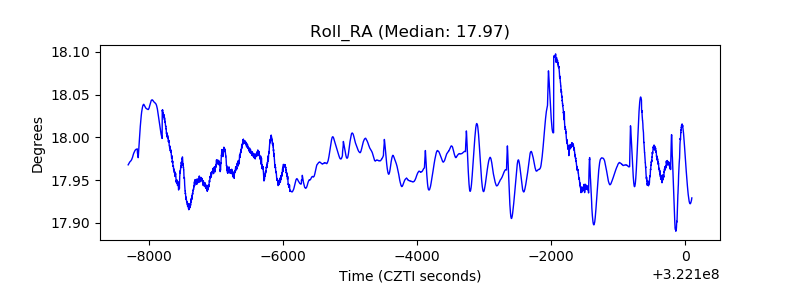

| _Roll_RA |  |
| Veto Counter |  |
