| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_047T06_9000003576_24157cztM0_level2.evt | modeM0/AS1A07_047T06_9000003576_24157cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,039,780,160 | 569,580,480 |
| Size | 1.9 GB | 543.2 MB |
| Events in quadrant A | 13,593,433 | 3,935,129 |
| Events in quadrant B | 14,410,165 | 3,963,993 |
| Events in quadrant C | 14,498,818 | 3,745,264 |
| Events in quadrant D | 17,378,090 | 3,679,864 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52 | 0 |
| B | 0 | 52 | 0 |
| C | 0 | 52 | 0 |
| D | 0 | 52 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 574 | 0 |
| B | 0 | 574 | 0 |
| C | 0 | 574 | 0 |
| D | 0 | 574 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58545 | 7 |
| B | 0 | 60791 | 6 |
| C | 0 | 61085 | 6 |
| D | 0 | 70313 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 28063 | 196 | 0.698429% |
| B | 28063 | 412 | 1.468125% |
| C | 28063 | 450 | 1.603535% |
| D | 28063 | 623 | 2.220005% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

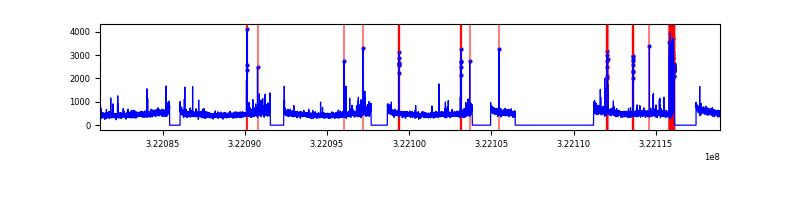

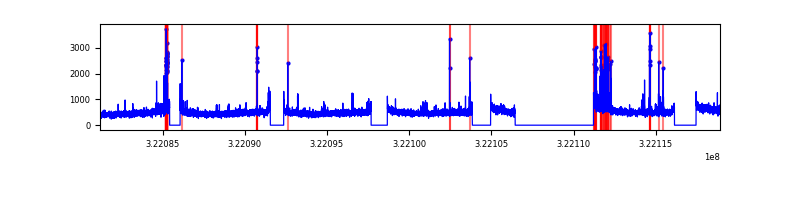

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 37708 | 28064 | 0 | 0 | 0.00% | 0.00% |  |
| B | 37708 | 28065 | 134 | 134 | 0.36% | 0.48% |  |
| C | 37708 | 28065 | 86 | 86 | 0.23% | 0.31% |  |
| D | 37708 | 28065 | 404 | 404 | 1.07% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 49080 | 65.64 | 3521 | 3452 | 695.1 |
| A | 0 | 226 | 30365 | 38.72 | 3521 | 3452 | 695.1 |
| A | 3 | 137 | 29542 | 37.53 | 3521 | 3452 | 695.1 |
| B | 0 | 245 | 383455 | 591.11 | 3490 | 3406 | 642.9 |
| B | 0 | 189 | 134908 | 204.53 | 3490 | 3406 | 642.9 |
| B | 5 | 172 | 84496 | 126.12 | 3490 | 3406 | 642.9 |
| C | 14 | 238 | 547434 | 707.7 | 3373 | 3402 | 768.7 |
| C | 2 | 16 | 217863 | 278.98 | 3373 | 3402 | 768.7 |
| C | 0 | 207 | 187957 | 240.08 | 3373 | 3402 | 768.7 |
| D | 7 | 238 | 3300195 | 4045.45 | 3414 | 3317 | 815.0 |
| D | 8 | 195 | 662716 | 809.12 | 3414 | 3317 | 815.0 |
| D | 1 | 52 | 318310 | 386.51 | 3414 | 3317 | 815.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

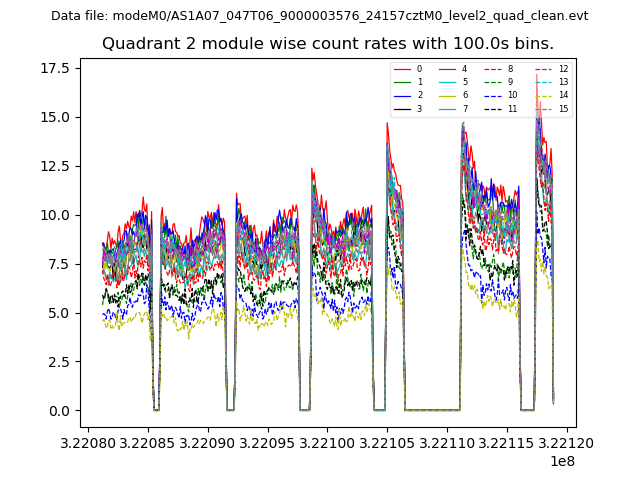

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

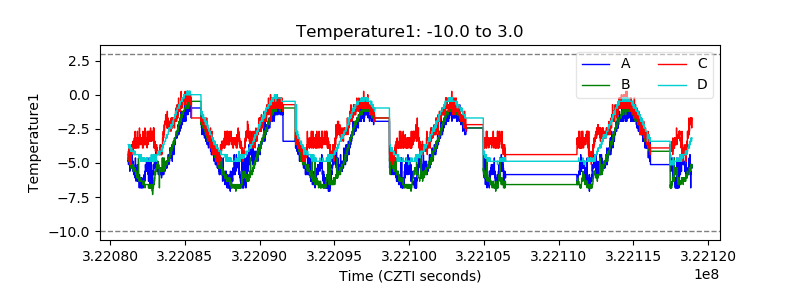

| Temperature 1 |  |
| Veto HV Monitor |  |

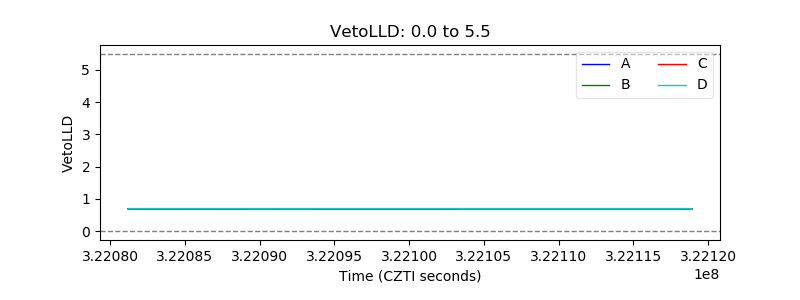

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

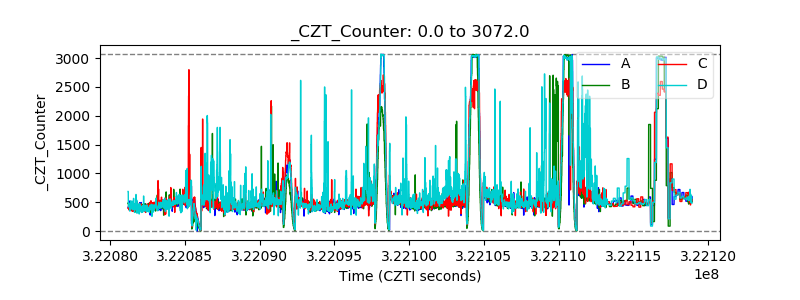

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

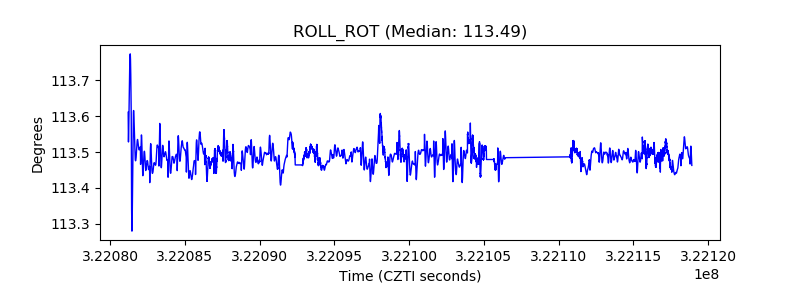

| _ROLL_ROT |  |
| _Roll_DEC |  |

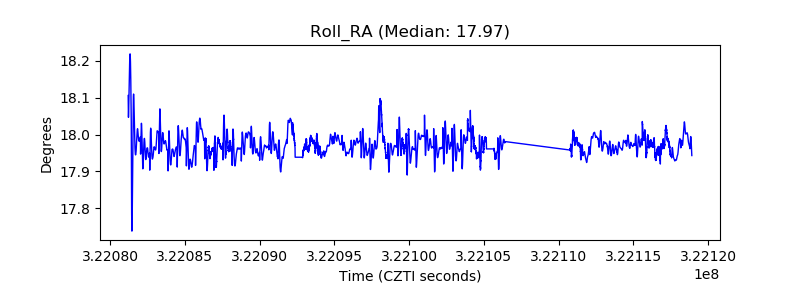

| _Roll_RA |  |
| Veto Counter |  |
