| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_067T01_9000003578_24160cztM0_level2.evt | modeM0/AS1A07_067T01_9000003578_24160cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,703,040 | 85,913,280 |
| Size | 433.6 MB | 81.9 MB |
| Events in quadrant A | 3,234,697 | 544,938 |
| Events in quadrant B | 3,316,814 | 554,395 |
| Events in quadrant C | 3,349,300 | 533,449 |
| Events in quadrant D | 3,438,472 | 525,757 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13073 | 1 |
| B | 0 | 13350 | 1 |
| C | 0 | 13518 | 1 |
| D | 0 | 13948 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6346 | 77 | 1.213363% |
| B | 6347 | 110 | 1.733102% |
| C | 6347 | 106 | 1.670080% |
| D | 6346 | 59 | 0.929720% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7456 | 6346 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7457 | 6348 | 27 | 27 | 0.36% | 0.43% |  |
| C | 7457 | 6347 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7456 | 6346 | 9 | 9 | 0.12% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10992 | 60.71 | 839 | 824 | 167.5 |
| A | 0 | 226 | 7430 | 39.44 | 839 | 824 | 167.5 |
| A | 3 | 137 | 6895 | 36.25 | 839 | 824 | 167.5 |
| B | 5 | 172 | 74051 | 470.66 | 825 | 804 | 155.6 |
| B | 12 | 111 | 18209 | 111.84 | 825 | 804 | 155.6 |
| B | 11 | 111 | 16199 | 98.92 | 825 | 804 | 155.6 |
| C | 14 | 238 | 129130 | 701.76 | 795 | 802 | 182.9 |
| C | 2 | 16 | 54768 | 295.11 | 795 | 802 | 182.9 |
| C | 3 | 233 | 36363 | 194.46 | 795 | 802 | 182.9 |
| D | 7 | 238 | 110025 | 549.51 | 816 | 794 | 198.8 |
| D | 8 | 195 | 95001 | 473.93 | 816 | 794 | 198.8 |
| D | 1 | 52 | 77641 | 386.59 | 816 | 794 | 198.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

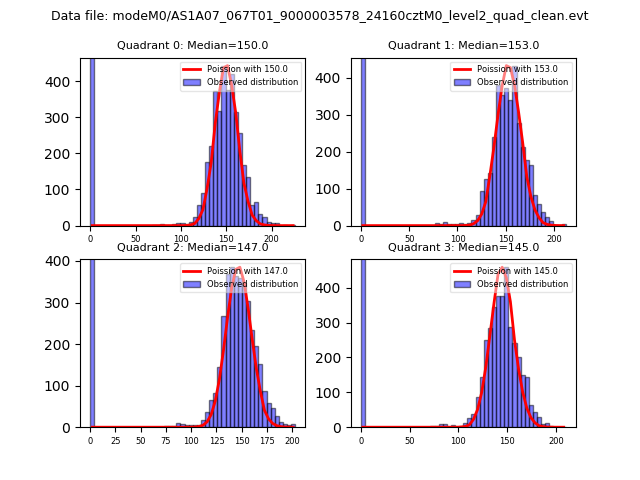

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

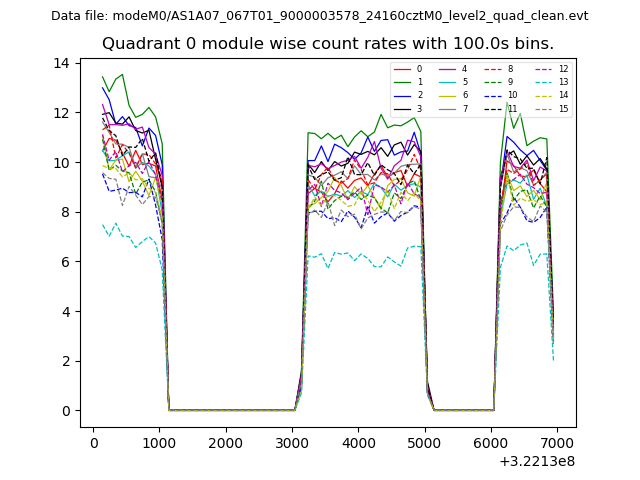

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

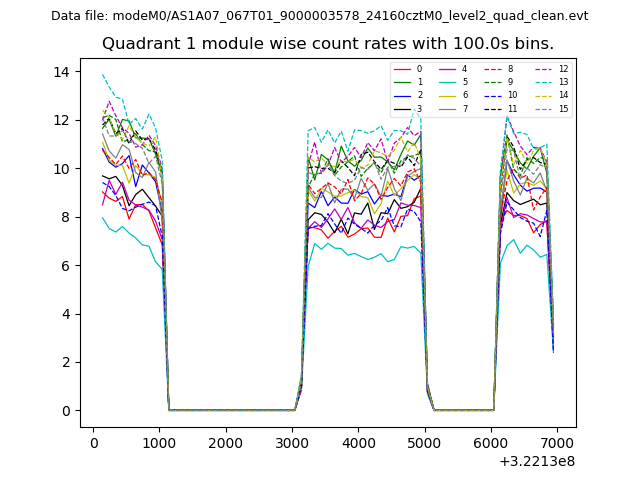

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

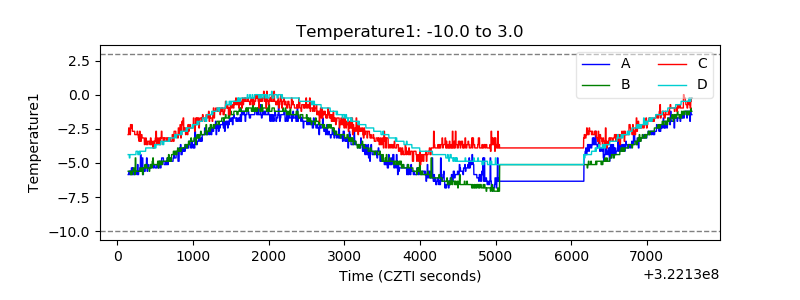

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
