| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_067T01_9000003578_24191cztM0_level2.evt | modeM0/AS1A07_067T01_9000003578_24191cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,928,000 | 78,367,680 |
| Size | 549.2 MB | 74.7 MB |
| Events in quadrant A | 3,457,429 | 475,773 |
| Events in quadrant B | 3,471,365 | 483,740 |
| Events in quadrant C | 5,441,290 | 454,777 |
| Events in quadrant D | 4,584,350 | 457,920 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14787 | 1 |
| B | 0 | 14784 | 1 |
| C | 0 | 20634 | 1 |
| D | 0 | 18168 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7187 | 162 | 2.254070% |
| B | 7188 | 168 | 2.337229% |
| C | 7188 | 583 | 8.110740% |
| D | 7188 | 283 | 3.937117% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7447 | 7187 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7448 | 7188 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7448 | 7188 | 250 | 250 | 3.36% | 3.48% |  |
| D | 7448 | 7188 | 128 | 128 | 1.72% | 1.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10442 | 52.85 | 893 | 873 | 181.0 |
| A | 3 | 1 | 8385 | 41.49 | 893 | 873 | 181.0 |
| A | 3 | 137 | 8235 | 40.66 | 893 | 873 | 181.0 |
| B | 12 | 111 | 20996 | 118.26 | 881 | 857 | 170.3 |
| B | 11 | 111 | 18797 | 105.35 | 881 | 857 | 170.3 |
| B | 14 | 111 | 16337 | 90.9 | 881 | 857 | 170.3 |
| C | 2 | 16 | 1606059 | 8227.33 | 833 | 835 | 195.1 |
| C | 7 | 247 | 454523 | 2325.31 | 833 | 835 | 195.1 |
| C | 14 | 238 | 129850 | 661.25 | 833 | 835 | 195.1 |
| D | 7 | 238 | 740251 | 3524.59 | 861 | 835 | 209.8 |
| D | 1 | 52 | 425801 | 2025.69 | 861 | 835 | 209.8 |
| D | 8 | 195 | 152877 | 724.74 | 861 | 835 | 209.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

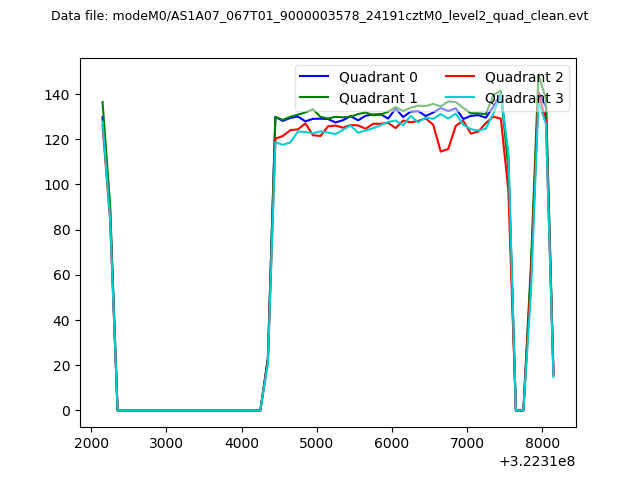

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

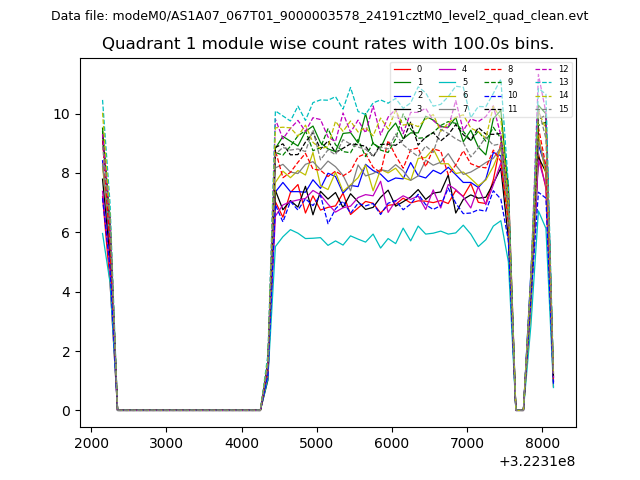

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

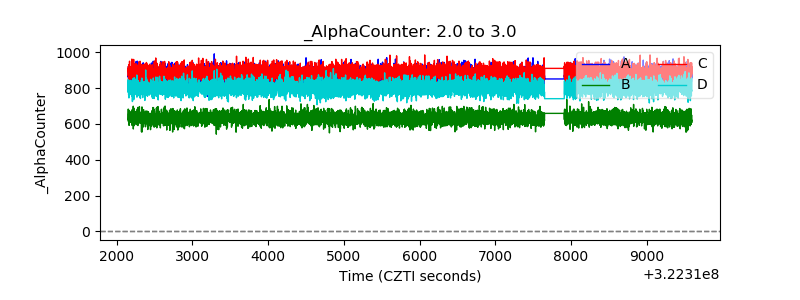

| Alpha Counter |  |

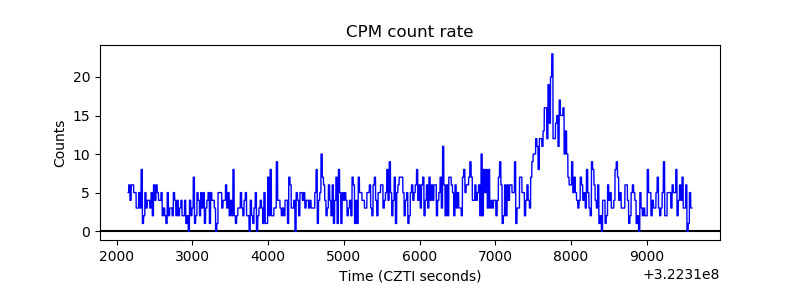

| _CPM_Rate |  |

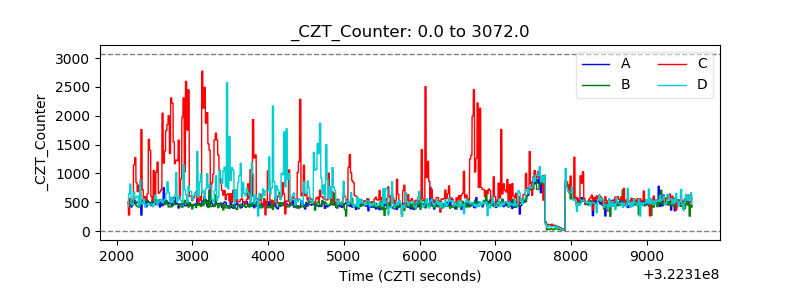

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
