| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_067T01_9000003578_24197cztM0_level2.evt | modeM0/AS1A07_067T01_9000003578_24197cztM0_level2_quad_clean.evt |
| Size (bytes) | 378,656,640 | 85,072,320 |
| Size | 361.1 MB | 81.1 MB |
| Events in quadrant A | 2,681,682 | 547,285 |
| Events in quadrant B | 2,751,259 | 562,047 |
| Events in quadrant C | 2,880,860 | 541,281 |
| Events in quadrant D | 2,766,812 | 528,072 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11765 | 2 |
| B | 0 | 11978 | 2 |
| C | 0 | 12543 | 2 |
| D | 0 | 12289 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5677 | 17 | 0.299454% |
| B | 5677 | 40 | 0.704597% |
| C | 5677 | 71 | 1.250661% |
| D | 5677 | 37 | 0.651753% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

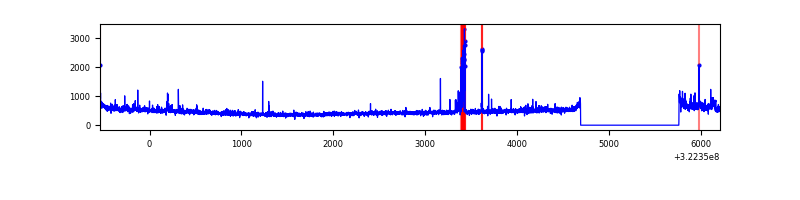

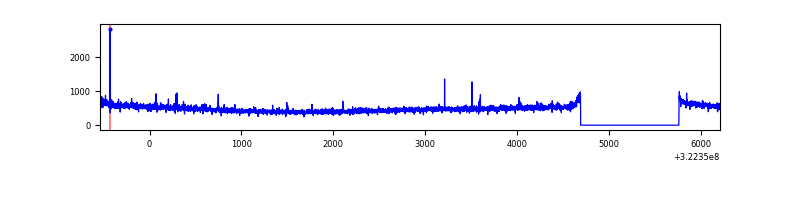

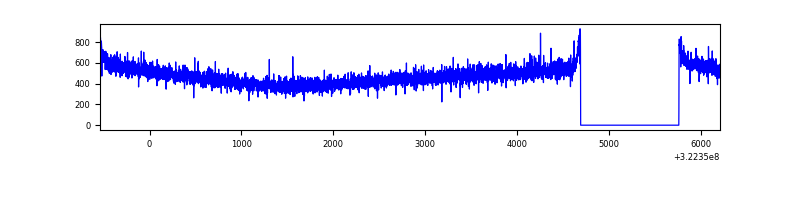

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6747 | 5678 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6747 | 5677 | 1 | 1 | 0.01% | 0.02% |  |
| C | 6747 | 5678 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6747 | 5678 | 24 | 24 | 0.36% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9272 | 61.45 | 695 | 679 | 139.8 |
| A | 3 | 137 | 6138 | 39.04 | 695 | 679 | 139.8 |
| A | 0 | 226 | 5877 | 37.17 | 695 | 679 | 139.8 |
| B | 12 | 111 | 16455 | 117.38 | 697 | 678 | 134.4 |
| B | 11 | 111 | 14319 | 101.49 | 697 | 678 | 134.4 |
| B | 14 | 111 | 12792 | 90.12 | 697 | 678 | 134.4 |
| C | 7 | 247 | 148015 | 932.35 | 672 | 676 | 158.0 |
| C | 14 | 238 | 105709 | 664.64 | 672 | 676 | 158.0 |
| C | 2 | 16 | 6693 | 38.08 | 672 | 676 | 158.0 |
| D | 12 | 218 | 124111 | 750.56 | 676 | 656 | 164.5 |
| D | 7 | 238 | 43049 | 257.73 | 676 | 656 | 164.5 |
| D | 8 | 195 | 31869 | 189.76 | 676 | 656 | 164.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

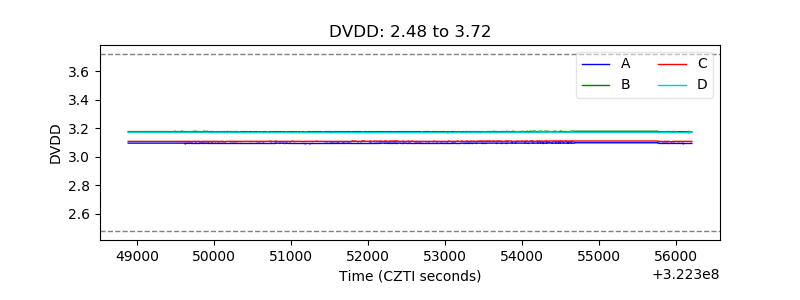

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

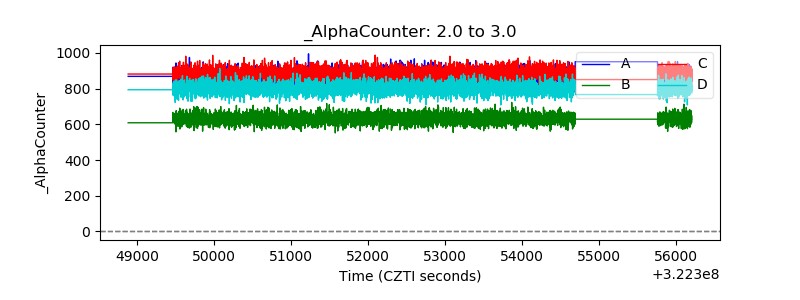

| Alpha Counter |  |

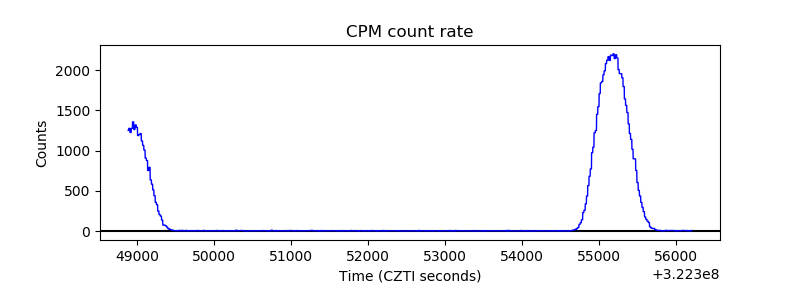

| _CPM_Rate |  |

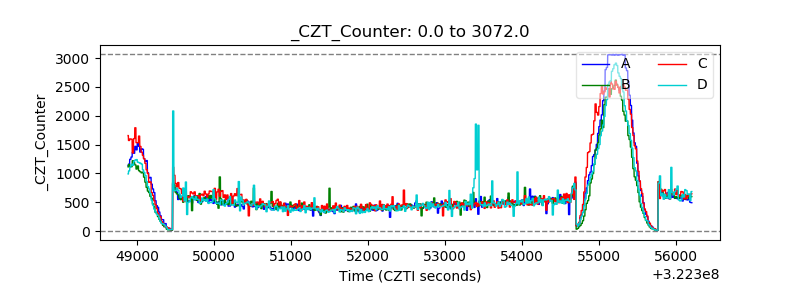

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

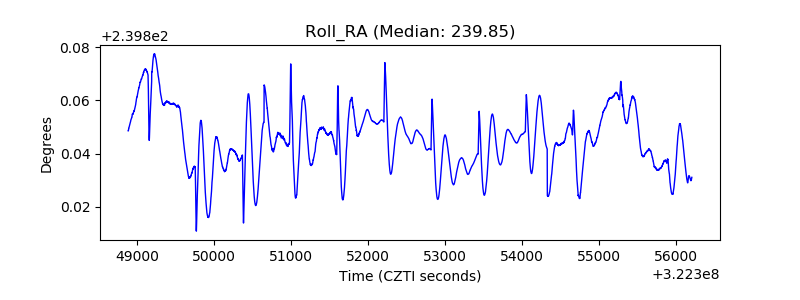

| _Roll_RA |  |
