| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_160T05_9000003580_24207cztM0_level2.evt | modeM0/AS1A07_160T05_9000003580_24207cztM0_level2_quad_clean.evt |
| Size (bytes) | 635,895,360 | 109,422,720 |
| Size | 606.4 MB | 104.4 MB |
| Events in quadrant A | 3,480,231 | 738,930 |
| Events in quadrant B | 3,524,438 | 741,732 |
| Events in quadrant C | 5,539,540 | 653,448 |
| Events in quadrant D | 6,216,035 | 667,859 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15106 | 0 |
| B | 0 | 15194 | 0 |
| C | 0 | 20870 | 0 |
| D | 0 | 23488 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7361 | 114 | 1.548703% |
| B | 7362 | 121 | 1.643575% |
| C | 7362 | 742 | 10.078783% |
| D | 7362 | 399 | 5.419723% |

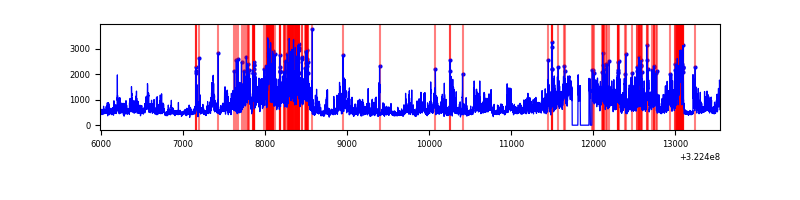

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

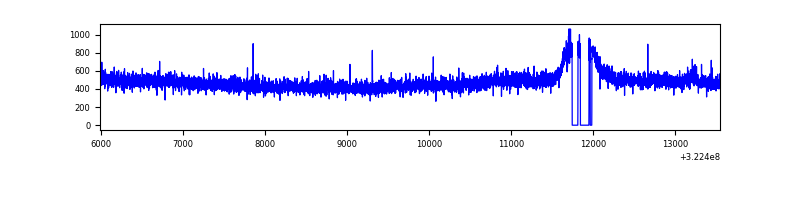

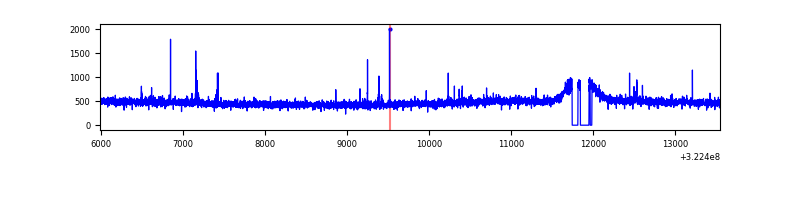

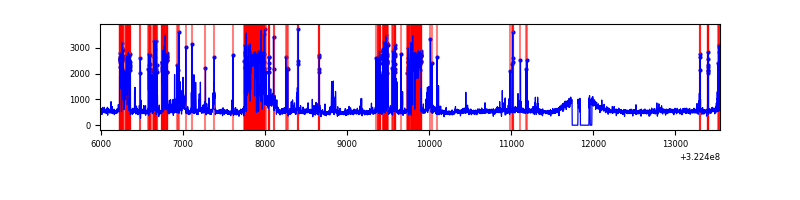

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7556 | 7363 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7557 | 7364 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7556 | 7362 | 480 | 480 | 6.35% | 6.52% |  |
| D | 7557 | 7363 | 223 | 223 | 2.95% | 3.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 16516 | 86.01 | 898 | 878 | 181.8 |
| A | 13 | 254 | 11968 | 60.99 | 898 | 878 | 181.8 |
| A | 3 | 137 | 8141 | 39.94 | 898 | 878 | 181.8 |
| B | 12 | 111 | 20878 | 117.66 | 887 | 866 | 170.1 |
| B | 11 | 111 | 18409 | 103.15 | 887 | 866 | 170.1 |
| B | 14 | 111 | 16115 | 89.66 | 887 | 866 | 170.1 |
| C | 2 | 16 | 1811018 | 9454.68 | 820 | 825 | 191.5 |
| C | 7 | 247 | 394472 | 2056.03 | 820 | 825 | 191.5 |
| C | 14 | 238 | 128323 | 665.92 | 820 | 825 | 191.5 |
| D | 8 | 195 | 2414949 | 11642.24 | 856 | 830 | 207.4 |
| D | 7 | 238 | 475788 | 2290.51 | 856 | 830 | 207.4 |
| D | 2 | 234 | 34738 | 163.52 | 856 | 830 | 207.4 |

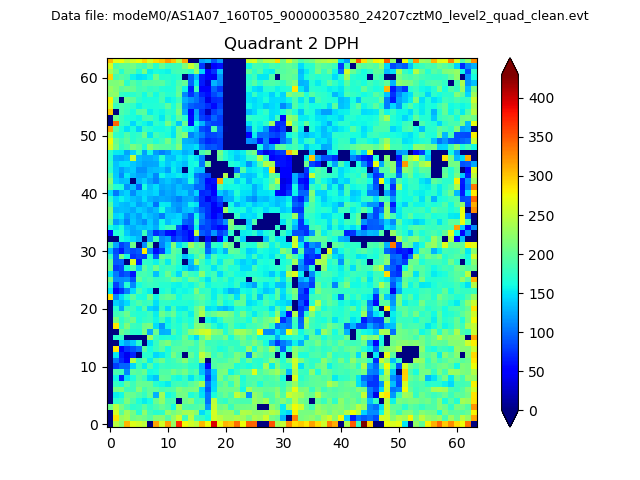

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

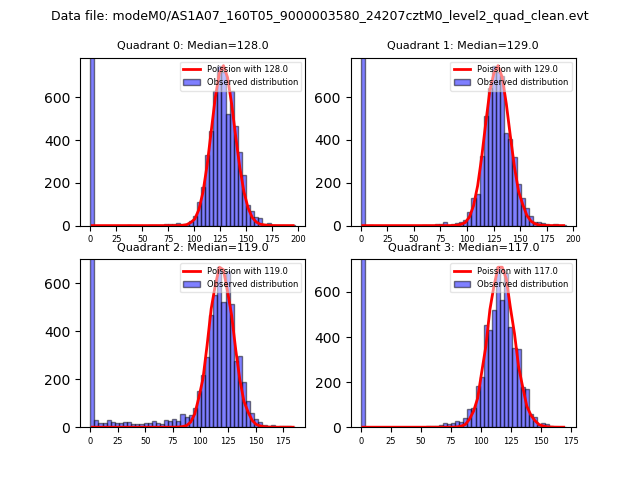

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

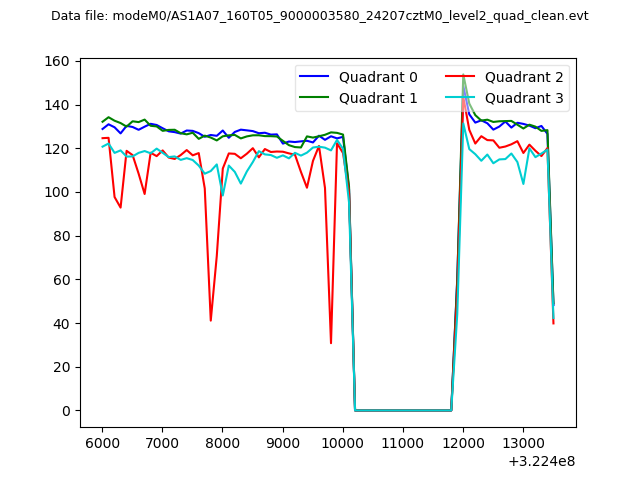

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

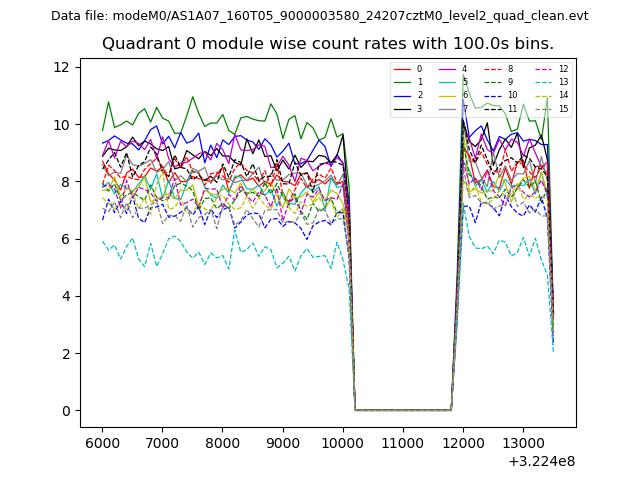

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

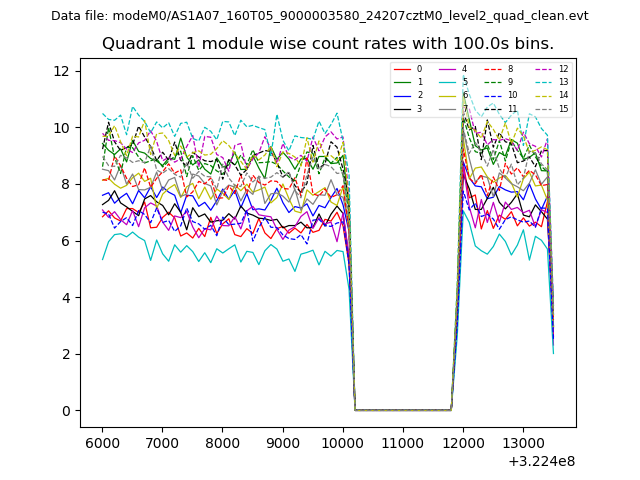

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

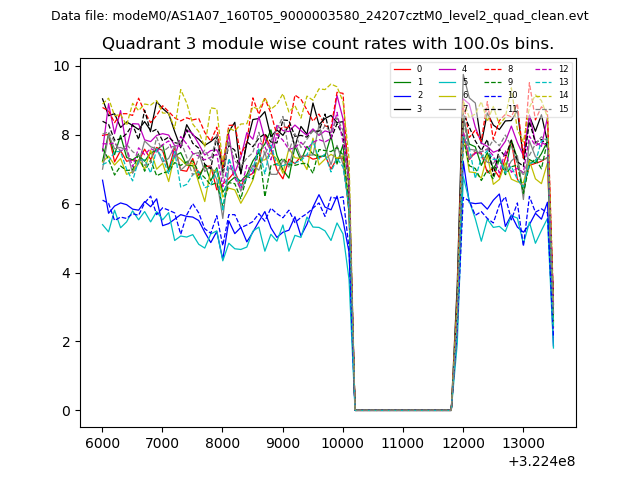

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

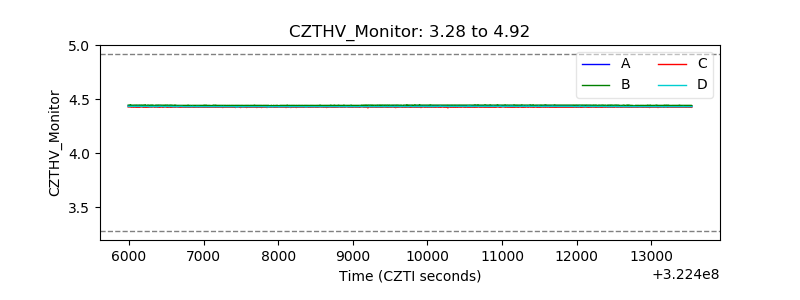

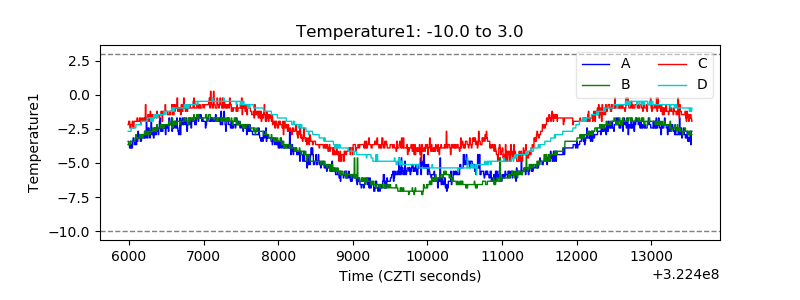

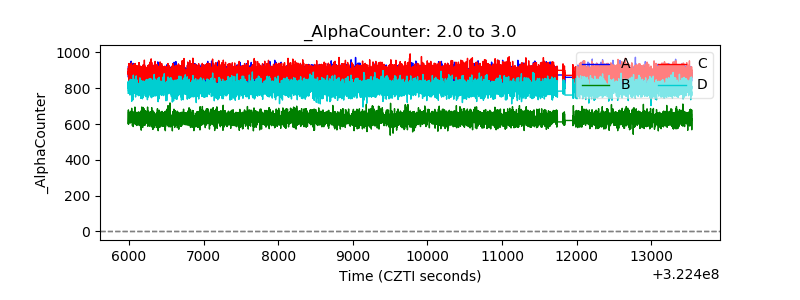

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

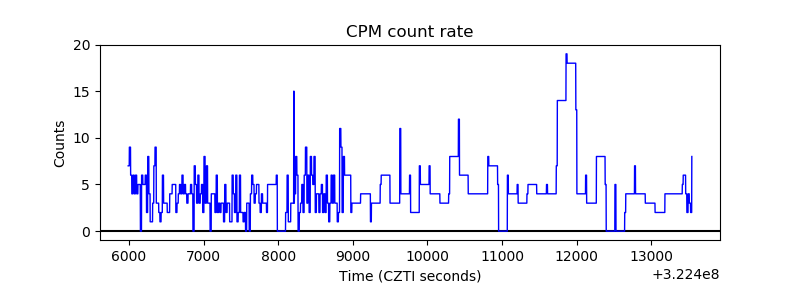

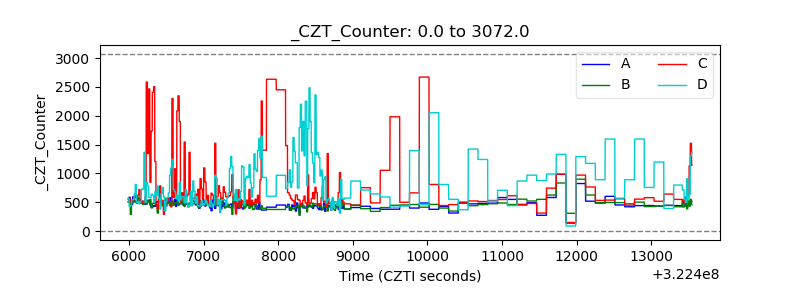

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

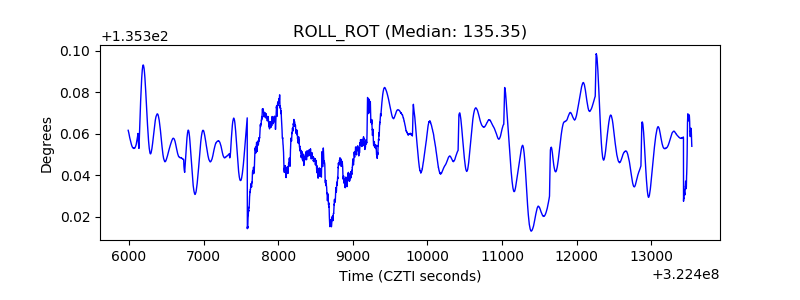

| _ROLL_ROT |  |

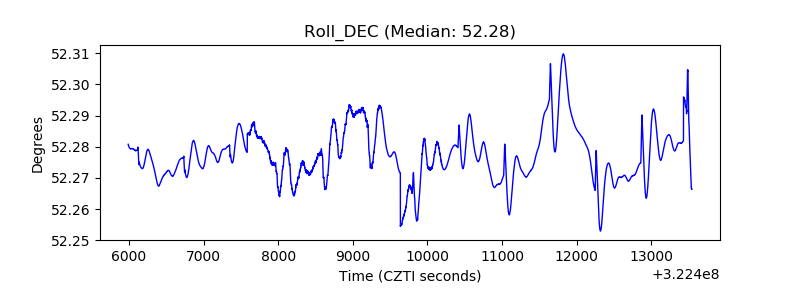

| _Roll_DEC |  |

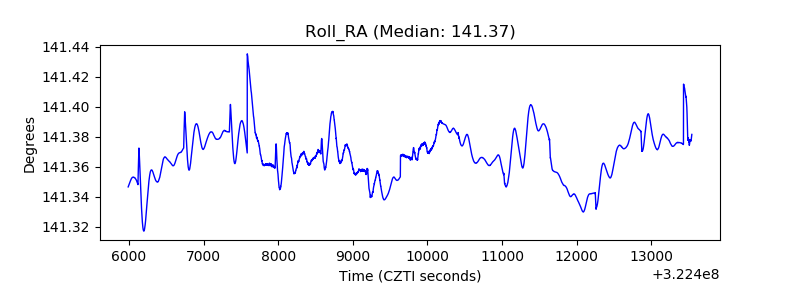

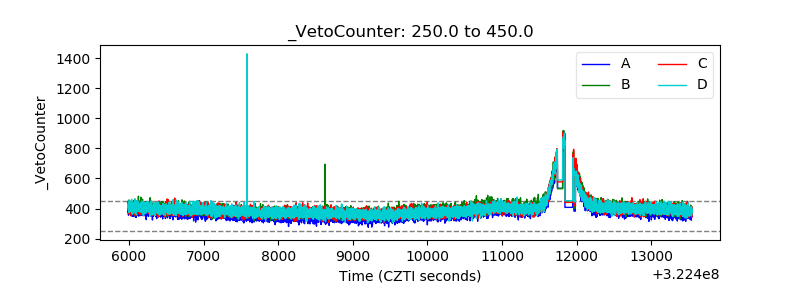

| _Roll_RA |  |
| Veto Counter |  |
