| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_010T12_9000003582_24211cztM0_level2.evt | modeM0/AS1A07_010T12_9000003582_24211cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,392,320 | 95,719,680 |
| Size | 480.1 MB | 91.3 MB |
| Events in quadrant A | 3,120,716 | 625,951 |
| Events in quadrant B | 3,216,594 | 636,107 |
| Events in quadrant C | 3,133,672 | 606,313 |
| Events in quadrant D | 5,330,490 | 574,133 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13533 | 2 |
| B | 0 | 13711 | 2 |
| C | 0 | 13455 | 2 |
| D | 0 | 20405 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6538 | 36 | 0.550627% |
| B | 6538 | 25 | 0.382380% |
| C | 6537 | 51 | 0.780174% |
| D | 6537 | 256 | 3.916169% |

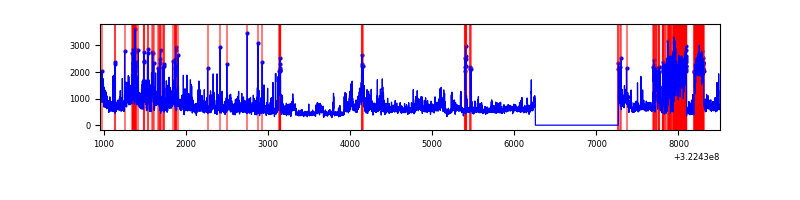

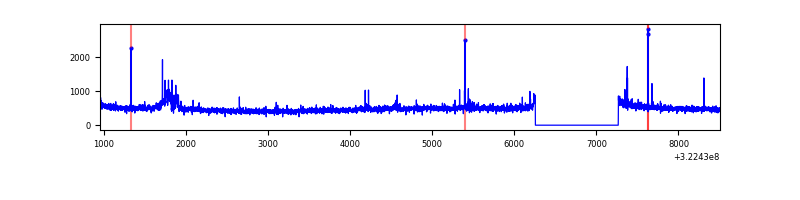

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7548 | 6539 | 8 | 8 | 0.11% | 0.12% |  |
| B | 7548 | 6539 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7547 | 6538 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7547 | 6538 | 276 | 276 | 3.66% | 4.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 79331 | 493.21 | 788 | 772 | 159.3 |
| A | 13 | 254 | 10967 | 64.01 | 788 | 772 | 159.3 |
| A | 0 | 226 | 6930 | 38.66 | 788 | 772 | 159.3 |
| B | 0 | 229 | 73131 | 483.08 | 789 | 769 | 149.8 |
| B | 0 | 245 | 22103 | 142.42 | 789 | 769 | 149.8 |
| B | 12 | 111 | 17971 | 114.84 | 789 | 769 | 149.8 |
| C | 14 | 238 | 121918 | 694.26 | 749 | 754 | 174.5 |
| C | 2 | 16 | 54710 | 309.16 | 749 | 754 | 174.5 |
| C | 7 | 247 | 17736 | 97.31 | 749 | 754 | 174.5 |
| D | 1 | 52 | 990878 | 5360.24 | 750 | 727 | 184.7 |
| D | 8 | 195 | 912715 | 4937.1 | 750 | 727 | 184.7 |
| D | 7 | 238 | 531165 | 2871.56 | 750 | 727 | 184.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

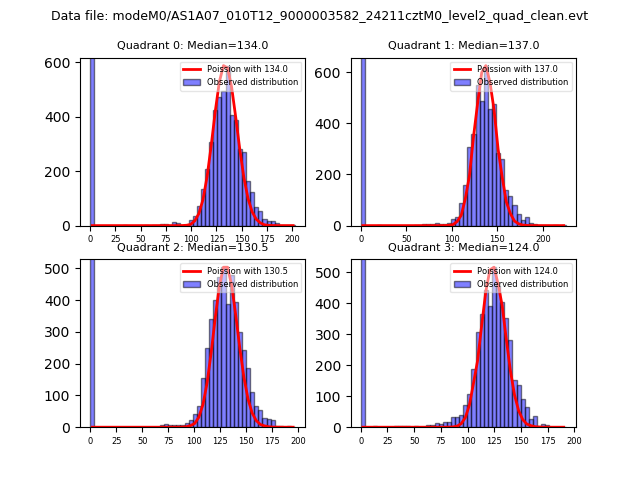

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

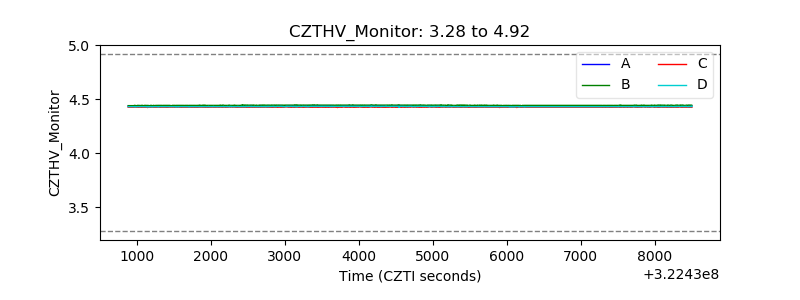

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

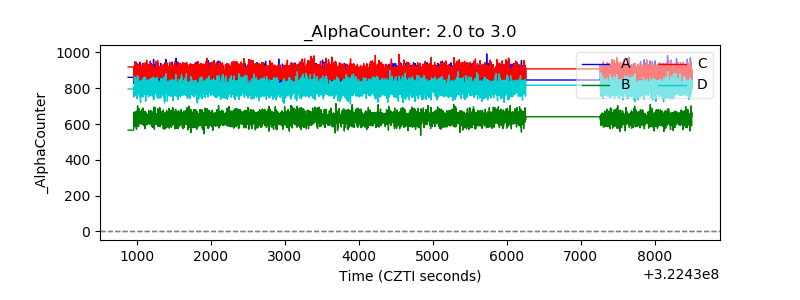

| Alpha Counter |  |
| _CPM_Rate |  |

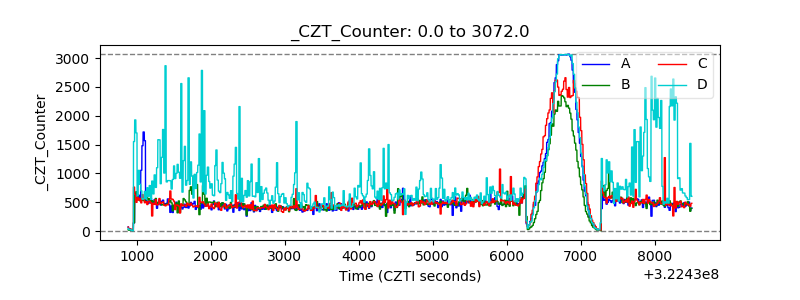

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

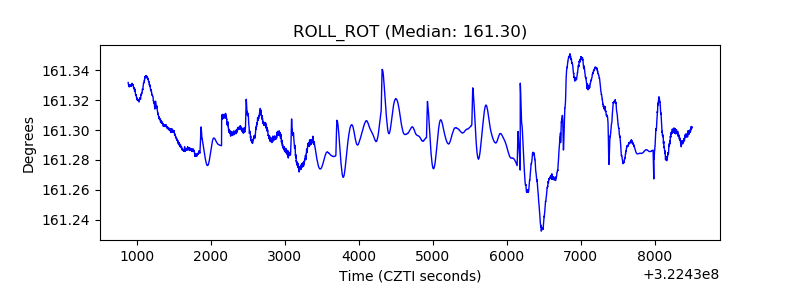

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
