| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_010T12_9000003582_24215cztM0_level2.evt | modeM0/AS1A07_010T12_9000003582_24215cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,934,400 | 76,089,600 |
| Size | 514.0 MB | 72.6 MB |
| Events in quadrant A | 3,427,014 | 471,597 |
| Events in quadrant B | 3,686,197 | 480,958 |
| Events in quadrant C | 3,669,086 | 466,694 |
| Events in quadrant D | 5,107,212 | 439,470 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13933 | 1 |
| B | 0 | 14833 | 1 |
| C | 0 | 14900 | 1 |
| D | 0 | 19782 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6380 | 32 | 0.501567% |
| B | 6380 | 96 | 1.504702% |
| C | 6380 | 92 | 1.442006% |
| D | 6380 | 226 | 3.542320% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6381 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7735 | 6381 | 27 | 27 | 0.35% | 0.42% |  |
| C | 7735 | 6381 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7735 | 6381 | 168 | 168 | 2.17% | 2.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10077 | 52.45 | 889 | 873 | 175.5 |
| A | 0 | 226 | 7814 | 39.55 | 889 | 873 | 175.5 |
| A | 3 | 137 | 6755 | 33.52 | 889 | 873 | 175.5 |
| B | 0 | 245 | 118193 | 738.08 | 887 | 870 | 159.0 |
| B | 5 | 172 | 43630 | 269.0 | 887 | 870 | 159.0 |
| B | 12 | 17 | 34105 | 209.08 | 887 | 870 | 159.0 |
| C | 14 | 238 | 143511 | 728.94 | 867 | 874 | 195.7 |
| C | 2 | 16 | 109157 | 553.38 | 867 | 874 | 195.7 |
| C | 7 | 247 | 24194 | 119.18 | 867 | 874 | 195.7 |
| D | 8 | 195 | 819141 | 3968.67 | 862 | 839 | 206.2 |
| D | 7 | 238 | 658693 | 3190.51 | 862 | 839 | 206.2 |
| D | 12 | 218 | 236547 | 1143.16 | 862 | 839 | 206.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

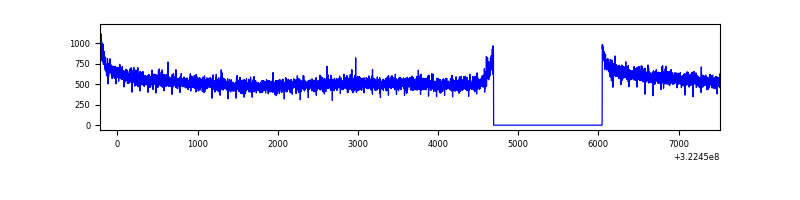

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

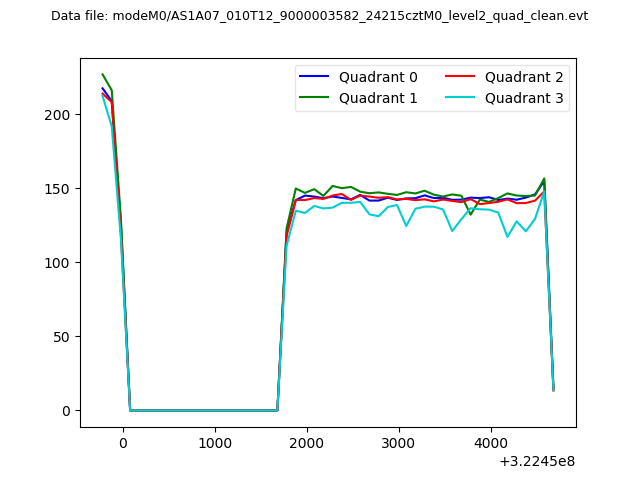

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

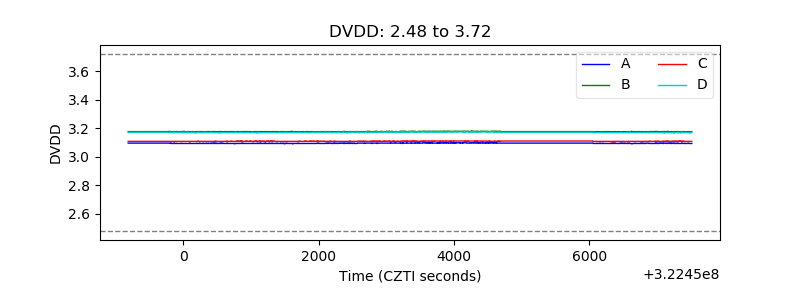

| D_VDD |  |

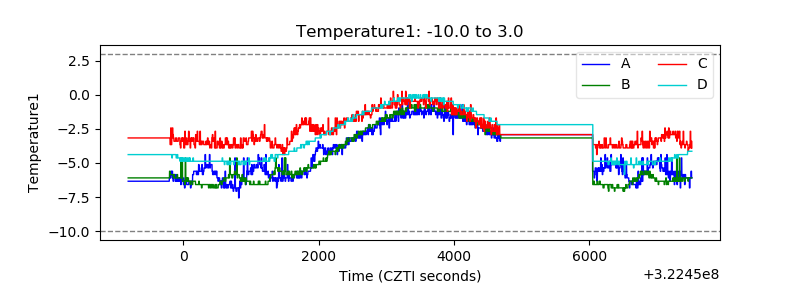

| Temperature 1 |  |
| Veto HV Monitor |  |

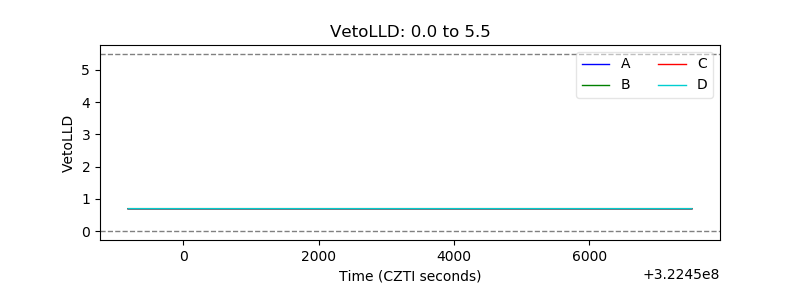

| Veto LLD |  |

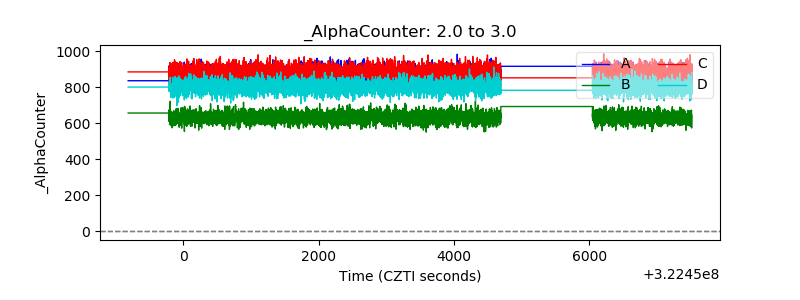

| Alpha Counter |  |
| _CPM_Rate |  |

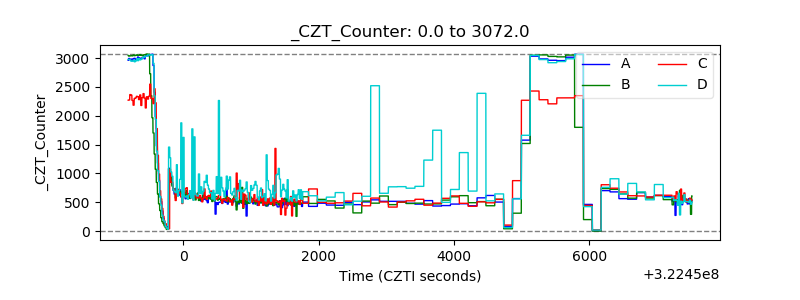

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

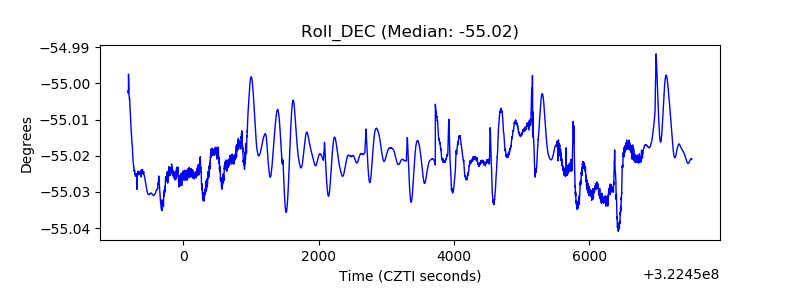

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
