| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_010T12_9000003582_24216cztM0_level2.evt | modeM0/AS1A07_010T12_9000003582_24216cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,259,520 | 83,269,440 |
| Size | 484.7 MB | 79.4 MB |
| Events in quadrant A | 3,387,684 | 527,585 |
| Events in quadrant B | 3,546,449 | 536,951 |
| Events in quadrant C | 3,589,624 | 522,325 |
| Events in quadrant D | 4,449,855 | 503,388 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13667 | 2 |
| B | 0 | 14285 | 1 |
| C | 0 | 14576 | 1 |
| D | 0 | 17633 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6178 | 108 | 1.748139% |
| B | 6178 | 157 | 2.541275% |
| C | 6178 | 170 | 2.751700% |
| D | 6178 | 166 | 2.686954% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

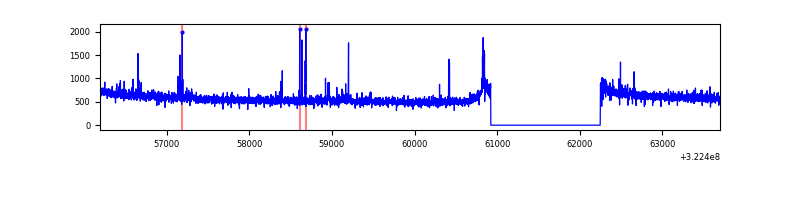

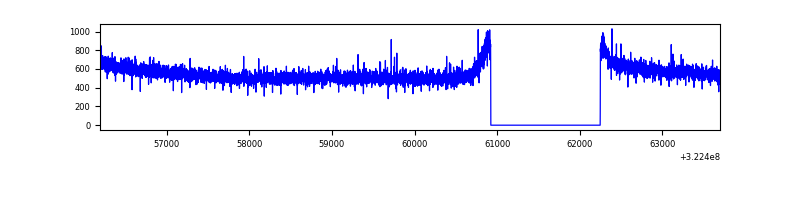

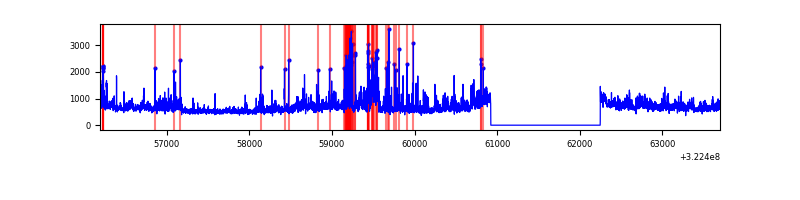

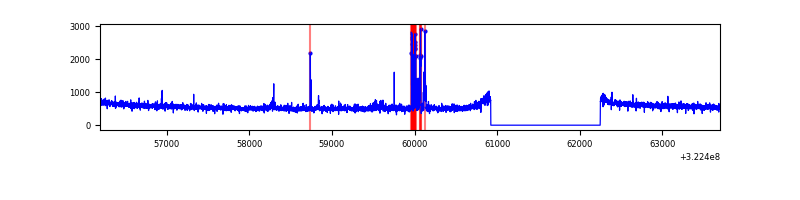

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7503 | 6178 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7503 | 6178 | 24 | 24 | 0.32% | 0.39% |  |
| C | 7503 | 6178 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7503 | 6178 | 68 | 68 | 0.91% | 1.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9944 | 53.03 | 879 | 863 | 171.2 |
| A | 0 | 226 | 7632 | 39.53 | 879 | 863 | 171.2 |
| A | 3 | 137 | 6871 | 35.09 | 879 | 863 | 171.2 |
| B | 0 | 245 | 100896 | 631.46 | 872 | 856 | 158.4 |
| B | 12 | 111 | 17724 | 106.47 | 872 | 856 | 158.4 |
| B | 15 | 33 | 17087 | 102.45 | 872 | 856 | 158.4 |
| C | 14 | 238 | 141479 | 735.61 | 853 | 861 | 191.2 |
| C | 2 | 16 | 83793 | 433.84 | 853 | 861 | 191.2 |
| C | 7 | 247 | 27722 | 140.52 | 853 | 861 | 191.2 |
| D | 7 | 238 | 638183 | 3093.22 | 864 | 843 | 206.0 |
| D | 8 | 195 | 468264 | 2268.55 | 864 | 843 | 206.0 |
| D | 1 | 52 | 63608 | 304.62 | 864 | 843 | 206.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

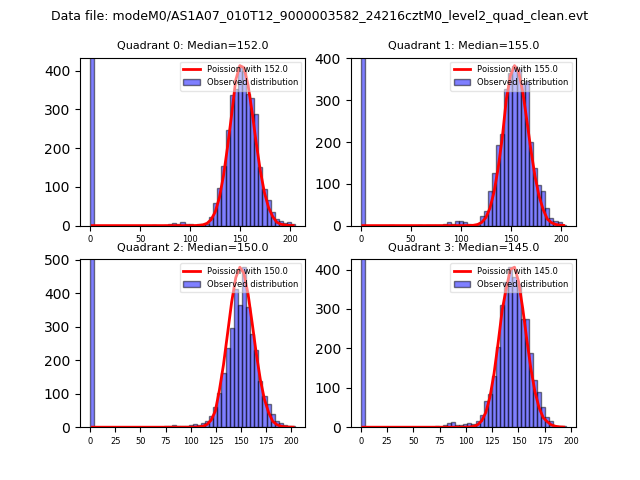

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

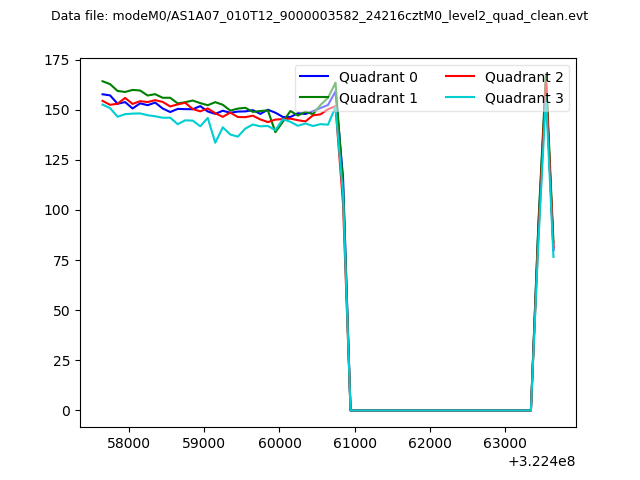

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

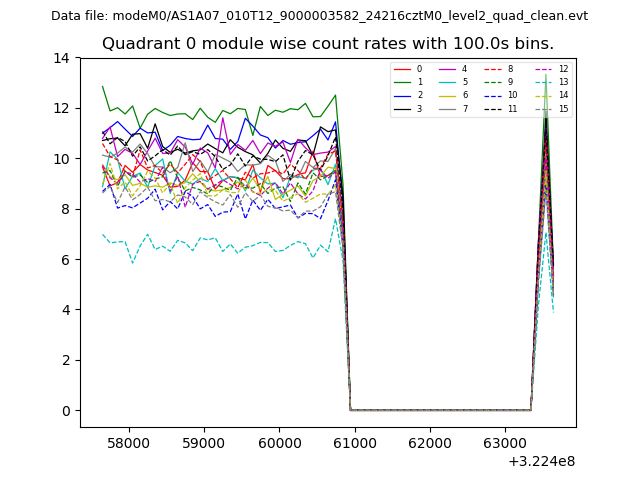

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

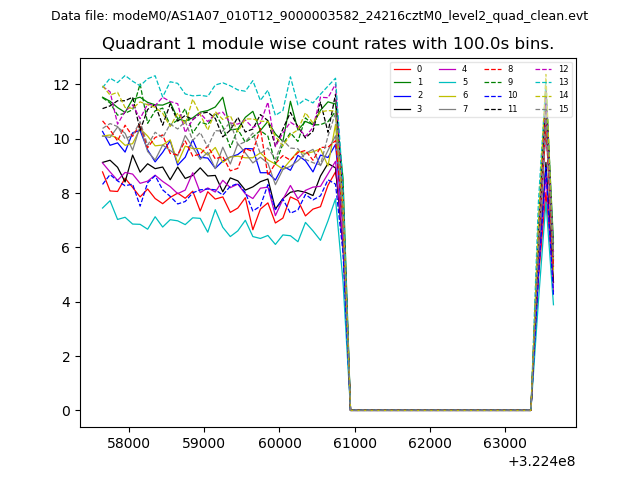

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

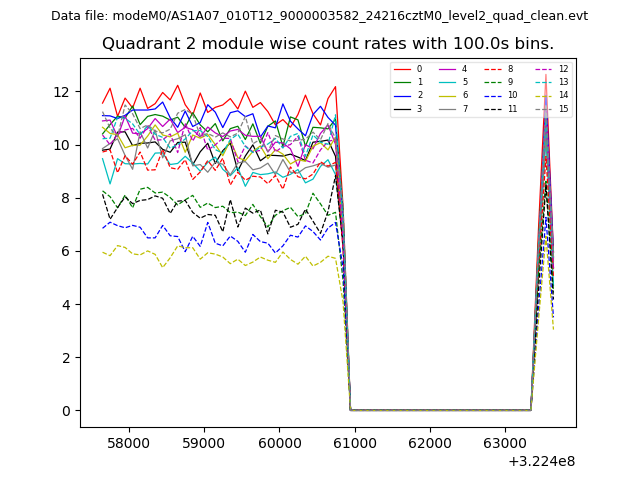

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

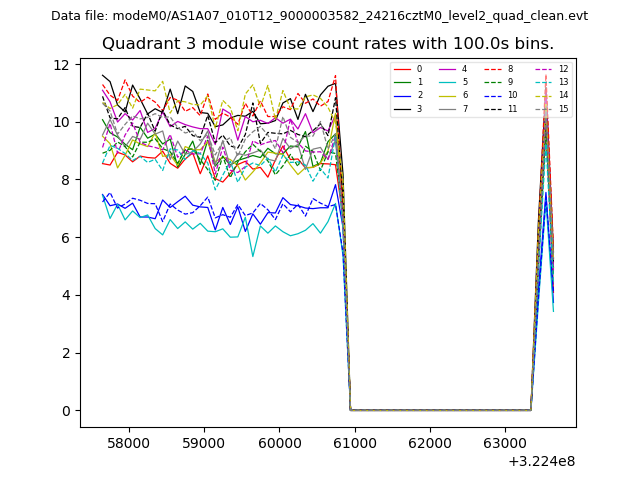

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

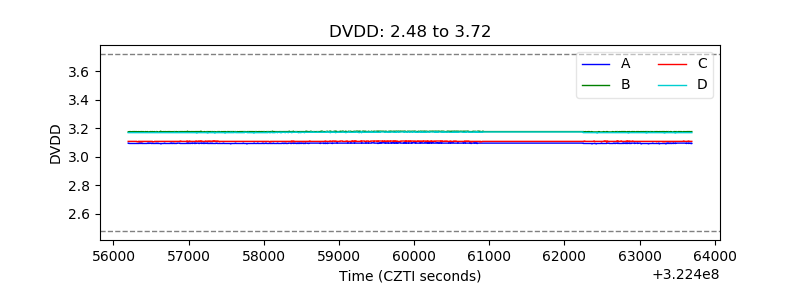

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

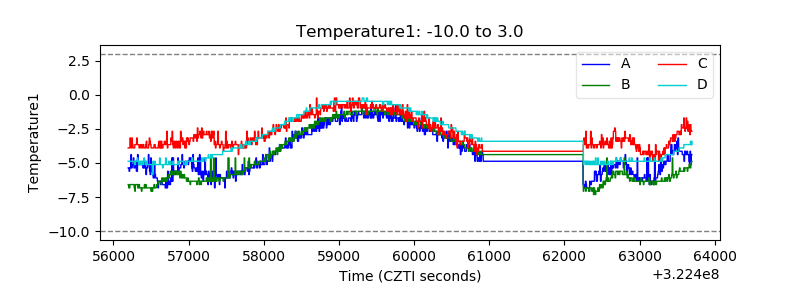

| Temperature 1 |  |

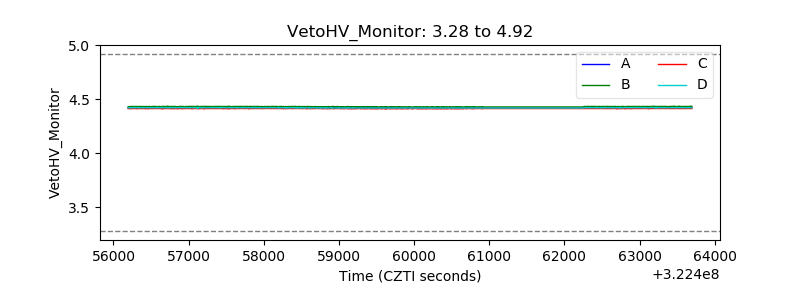

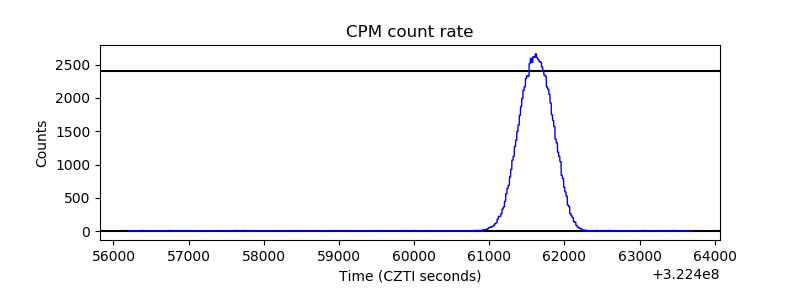

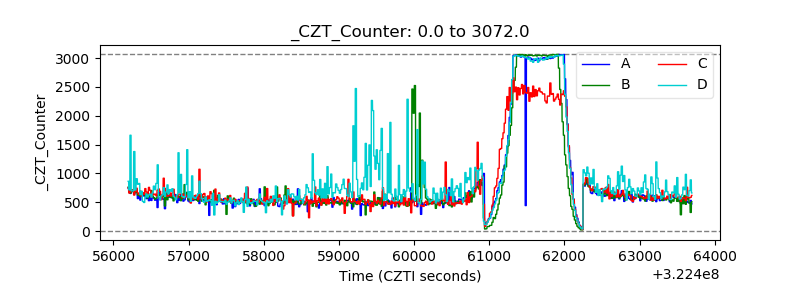

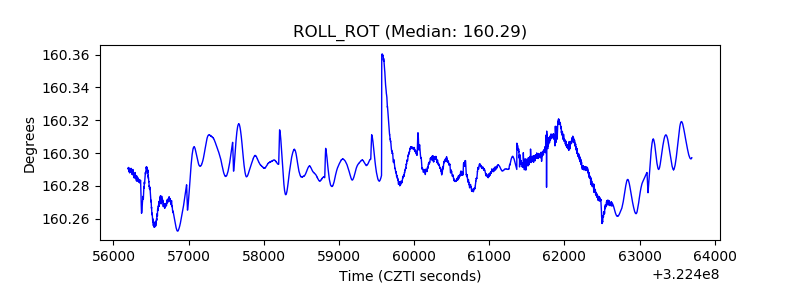

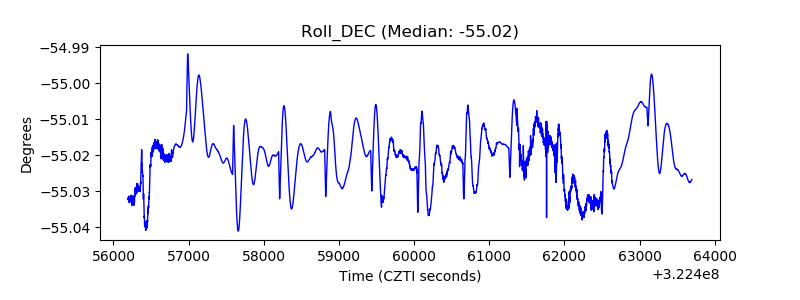

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

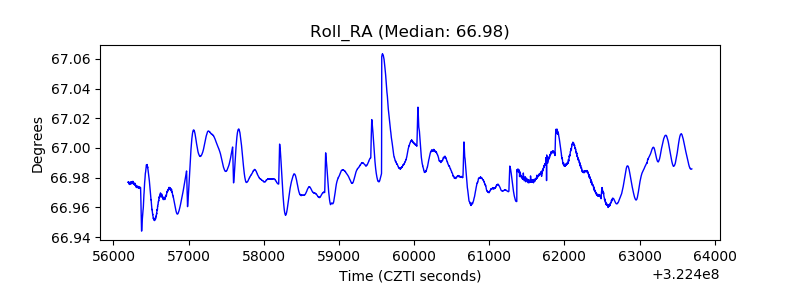

| _Roll_RA |  |

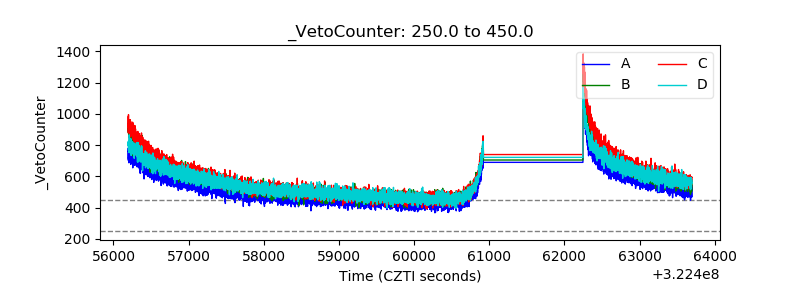

| Veto Counter |  |
