| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_118T01_9000003586_24234cztM0_level2.evt | modeM0/AS1A07_118T01_9000003586_24234cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,932,800 | 89,516,160 |
| Size | 529.2 MB | 85.4 MB |
| Events in quadrant A | 3,257,277 | 565,313 |
| Events in quadrant B | 3,652,815 | 579,985 |
| Events in quadrant C | 3,792,880 | 550,996 |
| Events in quadrant D | 5,641,121 | 539,493 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13969 | 2 |
| B | 0 | 15173 | 2 |
| C | 0 | 15236 | 2 |
| D | 0 | 21431 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6809 | 128 | 1.879865% |
| B | 6809 | 186 | 2.731679% |
| C | 6809 | 220 | 3.231018% |
| D | 6810 | 464 | 6.813510% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

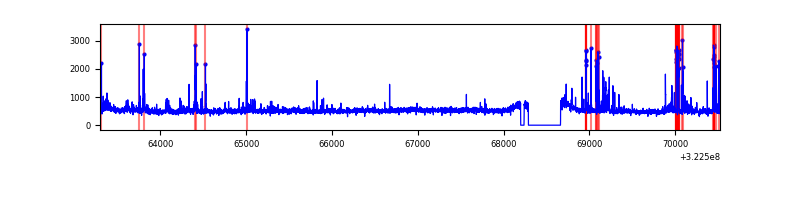

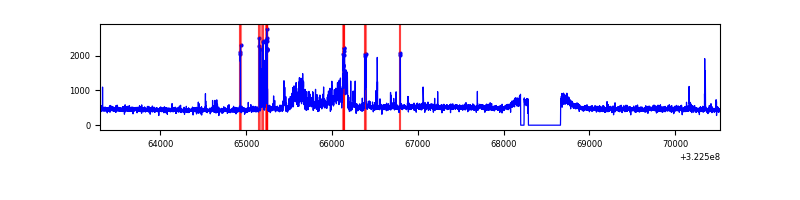

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7224 | 6810 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7224 | 6810 | 27 | 27 | 0.37% | 0.40% |  |
| C | 7224 | 6810 | 55 | 55 | 0.76% | 0.81% |  |
| D | 7225 | 6810 | 339 | 339 | 4.69% | 4.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11962 | 65.45 | 842 | 820 | 170.2 |
| A | 3 | 1 | 10026 | 54.08 | 842 | 820 | 170.2 |
| A | 0 | 226 | 7324 | 38.21 | 842 | 820 | 170.2 |
| B | 15 | 33 | 215202 | 1342.17 | 833 | 811 | 159.7 |
| B | 12 | 17 | 141577 | 881.25 | 833 | 811 | 159.7 |
| B | 12 | 111 | 19074 | 114.33 | 833 | 811 | 159.7 |
| C | 2 | 16 | 354942 | 1849.15 | 807 | 811 | 191.5 |
| C | 7 | 247 | 158505 | 823.42 | 807 | 811 | 191.5 |
| C | 14 | 238 | 127597 | 662.03 | 807 | 811 | 191.5 |
| D | 12 | 33 | 1496343 | 7515.36 | 808 | 783 | 199.0 |
| D | 7 | 238 | 459452 | 2304.86 | 808 | 783 | 199.0 |
| D | 12 | 233 | 355323 | 1781.6 | 808 | 783 | 199.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

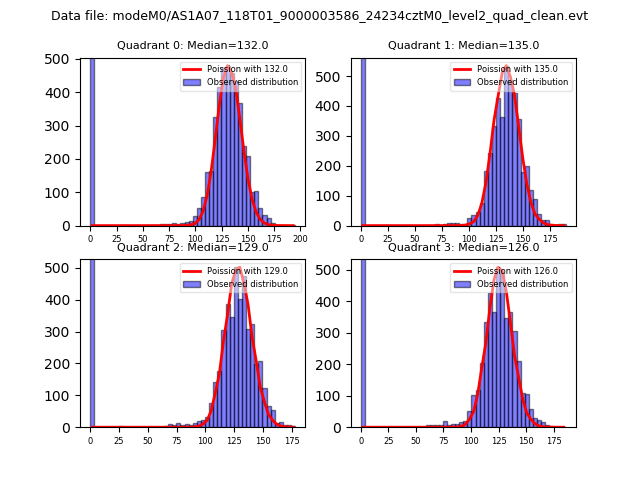

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

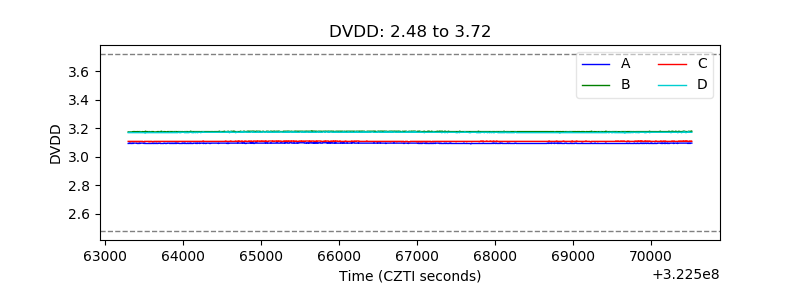

| D_VDD |  |
| Temperature 1 |  |

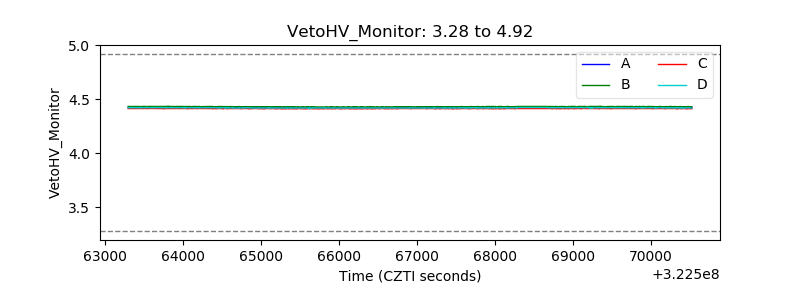

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

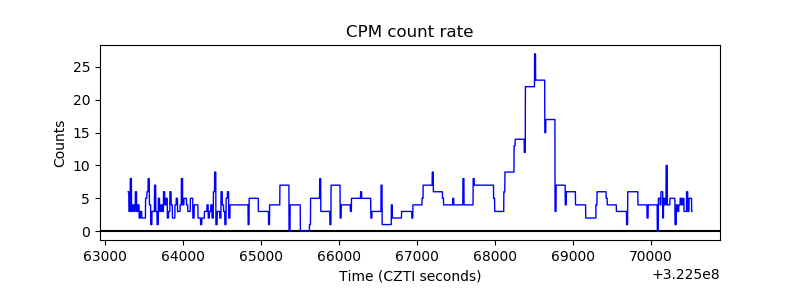

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

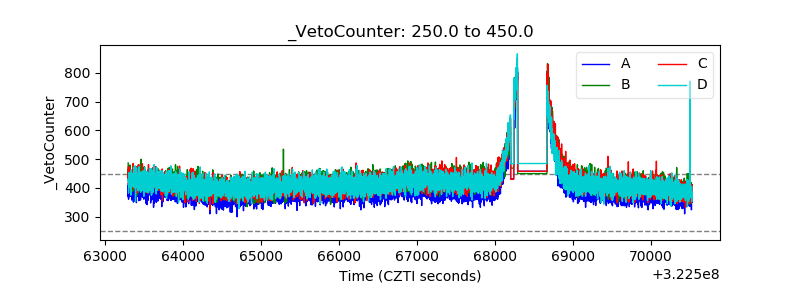

| Veto Counter |  |
