| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_118T01_9000003586_24239cztM0_level2.evt | modeM0/AS1A07_118T01_9000003586_24239cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,433,494,080 | 206,297,280 |
| Size | 1.3 GB | 196.7 MB |
| Events in quadrant A | 8,548,754 | 1,276,963 |
| Events in quadrant B | 9,409,336 | 1,290,303 |
| Events in quadrant C | 9,585,544 | 1,232,877 |
| Events in quadrant D | 14,662,066 | 1,215,117 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36805 | 3 |
| B | 0 | 39285 | 3 |
| C | 0 | 39653 | 3 |
| D | 0 | 55522 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 364 | 0 |
| B | 0 | 364 | 0 |
| C | 0 | 364 | 0 |
| D | 0 | 364 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17880 | 190 | 1.062640% |
| B | 17881 | 433 | 2.421565% |
| C | 17881 | 287 | 1.605056% |
| D | 17881 | 2326 | 13.008221% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

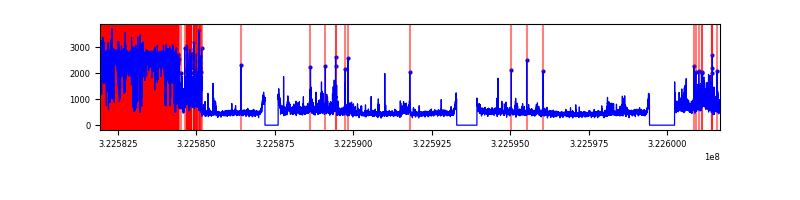

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19745 | 17880 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19746 | 17881 | 71 | 71 | 0.36% | 0.40% |  |
| C | 19746 | 17881 | 6 | 6 | 0.03% | 0.03% |  |
| D | 19746 | 17881 | 2111 | 2111 | 10.69% | 11.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 82359 | 182.33 | 2190 | 2139 | 440.0 |
| A | 13 | 254 | 32260 | 68.46 | 2190 | 2139 | 440.0 |
| A | 3 | 137 | 19655 | 39.81 | 2190 | 2139 | 440.0 |
| B | 0 | 245 | 360753 | 869.03 | 2171 | 2115 | 412.7 |
| B | 12 | 17 | 279171 | 671.35 | 2171 | 2115 | 412.7 |
| B | 15 | 33 | 187728 | 449.77 | 2171 | 2115 | 412.7 |
| C | 7 | 247 | 859143 | 1747.77 | 2101 | 2119 | 490.4 |
| C | 14 | 238 | 331502 | 671.72 | 2101 | 2119 | 490.4 |
| C | 2 | 16 | 165022 | 332.22 | 2101 | 2119 | 490.4 |
| D | 7 | 238 | 5873150 | 11923.94 | 2014 | 1959 | 492.4 |
| D | 8 | 195 | 701035 | 1419.77 | 2014 | 1959 | 492.4 |
| D | 12 | 32 | 208234 | 418.93 | 2014 | 1959 | 492.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

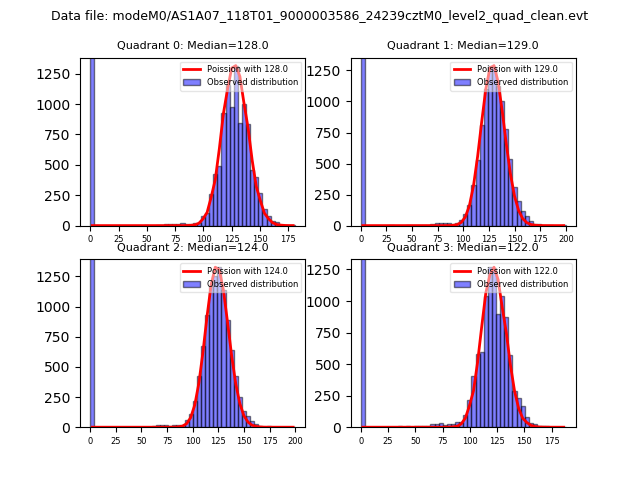

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

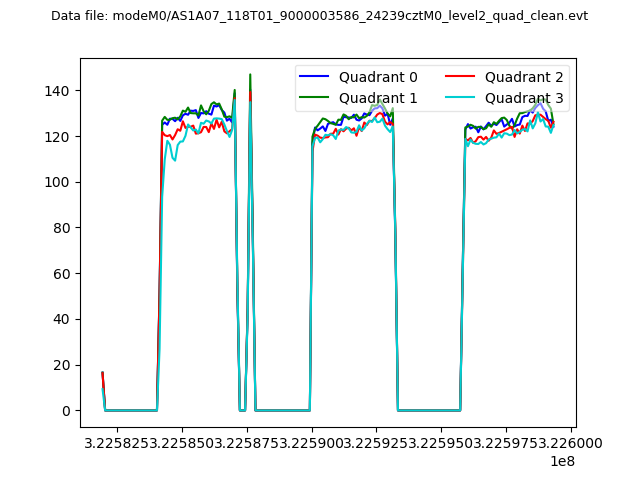

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

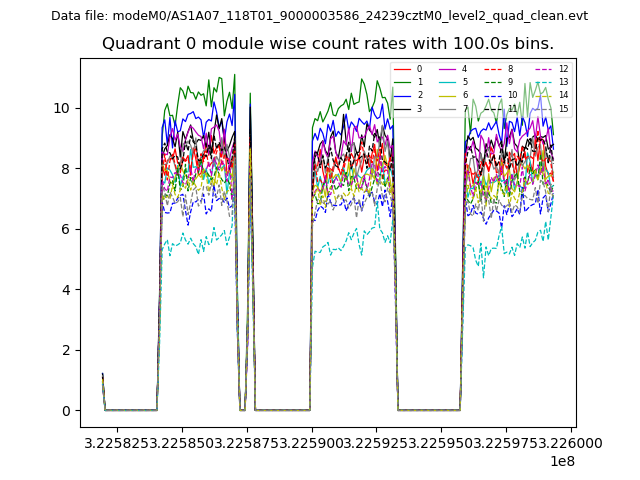

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

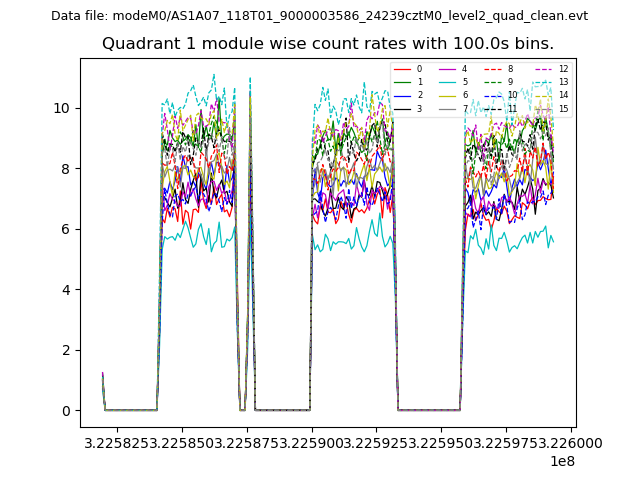

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

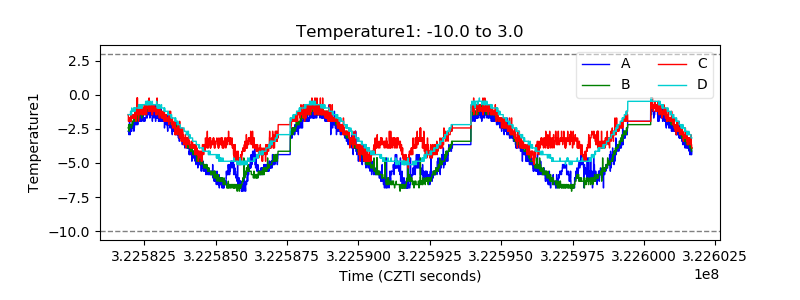

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

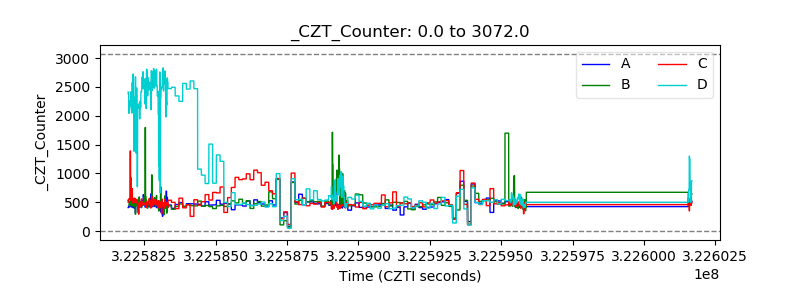

| CZT Counter |  |
| +2.5 Volts monitor |  |

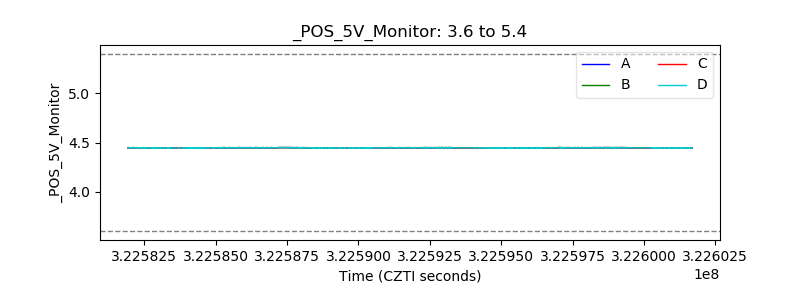

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
