| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_118T01_9000003586_24240cztM0_level2.evt | modeM0/AS1A07_118T01_9000003586_24240cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,821,760 | 83,805,120 |
| Size | 492.9 MB | 79.9 MB |
| Events in quadrant A | 3,407,065 | 524,076 |
| Events in quadrant B | 3,893,846 | 530,741 |
| Events in quadrant C | 3,515,779 | 507,399 |
| Events in quadrant D | 4,371,338 | 499,037 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14480 | 3 |
| B | 0 | 16052 | 2 |
| C | 0 | 14728 | 2 |
| D | 0 | 17590 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6839 | 90 | 1.315982% |
| B | 6840 | 226 | 3.304094% |
| C | 6840 | 137 | 2.002924% |
| D | 6840 | 170 | 2.485380% |

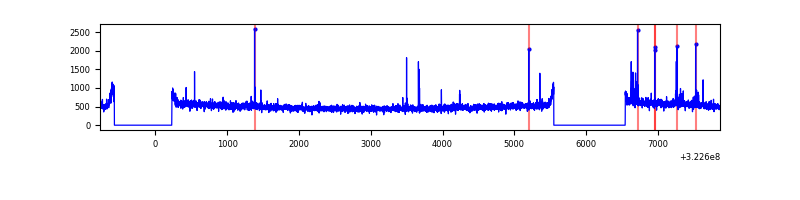

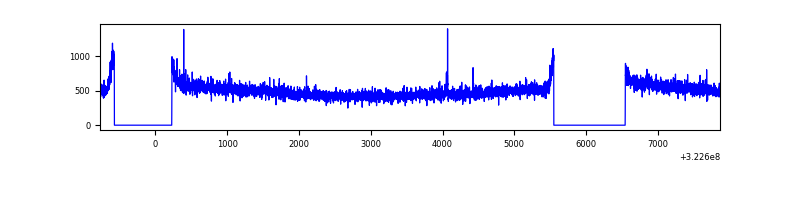

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8634 | 6839 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8635 | 6840 | 74 | 74 | 0.86% | 1.08% |  |
| C | 8635 | 6840 | 7 | 7 | 0.08% | 0.10% |  |
| D | 8635 | 6841 | 92 | 92 | 1.07% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 19642 | 106.65 | 873 | 855 | 176.2 |
| A | 11 | 29 | 14556 | 77.78 | 873 | 855 | 176.2 |
| A | 13 | 254 | 12649 | 66.95 | 873 | 855 | 176.2 |
| B | 0 | 245 | 287343 | 1728.6 | 864 | 842 | 165.7 |
| B | 15 | 33 | 160110 | 960.94 | 864 | 842 | 165.7 |
| B | 12 | 111 | 19640 | 113.42 | 864 | 842 | 165.7 |
| C | 14 | 238 | 131509 | 663.97 | 835 | 839 | 196.8 |
| C | 2 | 16 | 87817 | 441.96 | 835 | 839 | 196.8 |
| C | 7 | 247 | 40995 | 204.04 | 835 | 839 | 196.8 |
| D | 8 | 195 | 584012 | 2783.9 | 847 | 820 | 209.5 |
| D | 7 | 38 | 176061 | 836.52 | 847 | 820 | 209.5 |
| D | 1 | 52 | 174303 | 828.13 | 847 | 820 | 209.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

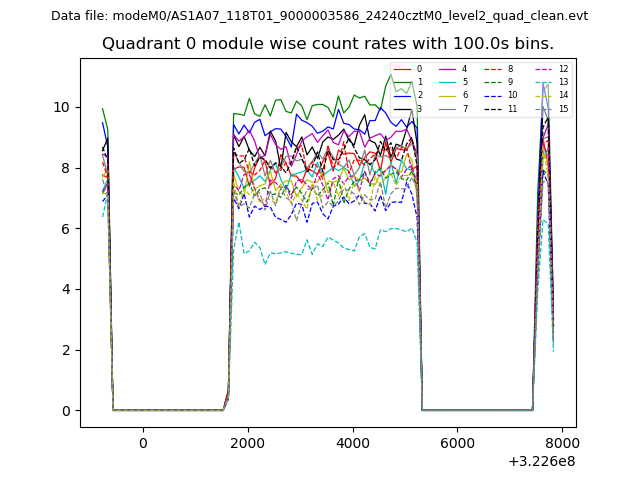

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

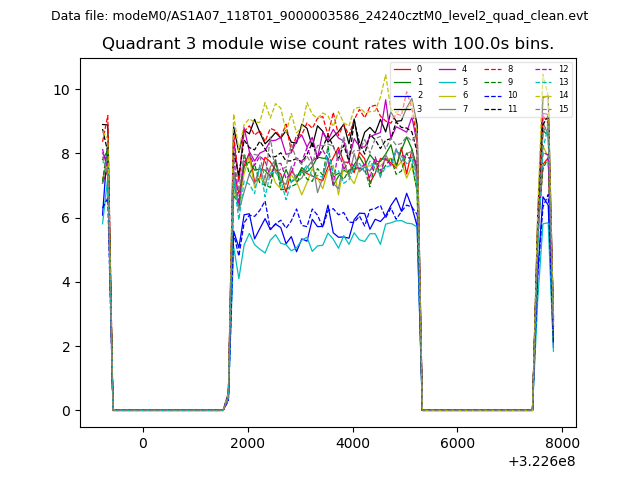

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

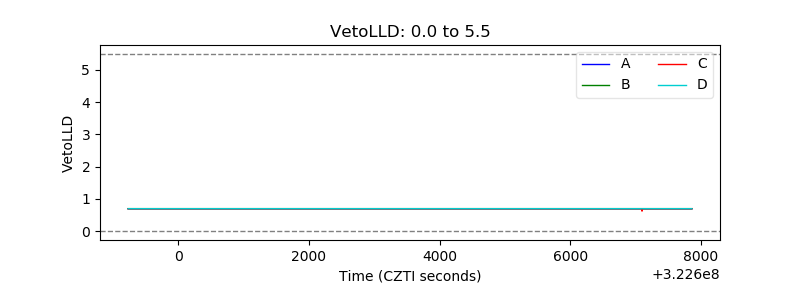

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

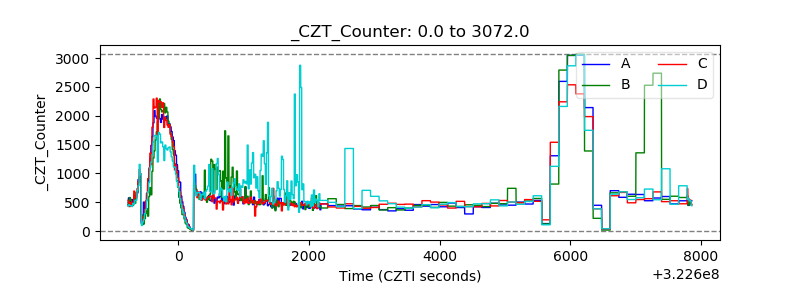

| CZT Counter |  |
| +2.5 Volts monitor |  |

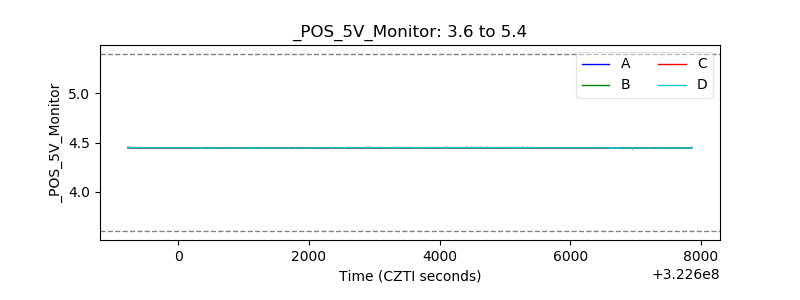

| +5 Volts monitor |  |
| _ROLL_ROT |  |

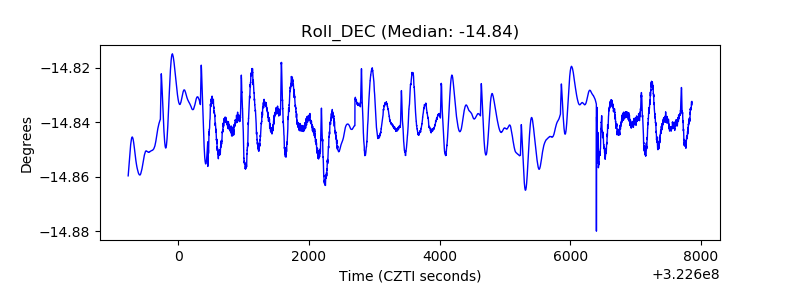

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
