| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_118T01_9000003586_24245cztM0_level2.evt | modeM0/AS1A07_118T01_9000003586_24245cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,588,160 | 109,330,560 |
| Size | 454.5 MB | 104.3 MB |
| Events in quadrant A | 3,244,505 | 723,993 |
| Events in quadrant B | 3,283,075 | 751,110 |
| Events in quadrant C | 3,272,094 | 718,988 |
| Events in quadrant D | 4,223,138 | 694,348 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13284 | 1 |
| B | 0 | 13472 | 1 |
| C | 0 | 13381 | 1 |
| D | 0 | 16654 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6045 | 51 | 0.843672% |
| B | 6046 | 42 | 0.694674% |
| C | 6046 | 57 | 0.942772% |
| D | 6046 | 109 | 1.802845% |

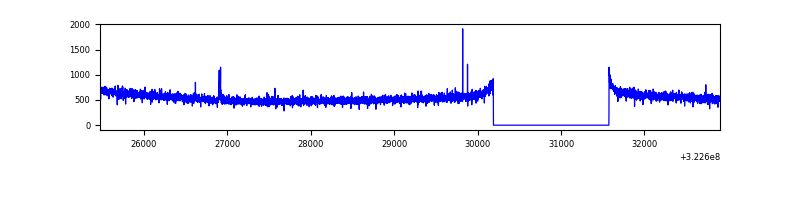

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7430 | 6046 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7431 | 6047 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7431 | 6046 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7431 | 6047 | 56 | 56 | 0.75% | 0.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 96201 | 589.48 | 816 | 802 | 161.8 |
| A | 13 | 254 | 9887 | 56.14 | 816 | 802 | 161.8 |
| A | 0 | 226 | 7080 | 38.79 | 816 | 802 | 161.8 |
| B | 12 | 17 | 32029 | 203.11 | 824 | 805 | 153.7 |
| B | 0 | 230 | 17551 | 108.93 | 824 | 805 | 153.7 |
| B | 12 | 111 | 17534 | 108.82 | 824 | 805 | 153.7 |
| C | 14 | 238 | 128009 | 681.97 | 801 | 809 | 186.5 |
| C | 2 | 16 | 13884 | 70.1 | 801 | 809 | 186.5 |
| C | 7 | 247 | 6594 | 31.01 | 801 | 809 | 186.5 |
| D | 8 | 195 | 1185924 | 6112.78 | 800 | 779 | 193.9 |
| D | 2 | 234 | 24958 | 124.71 | 800 | 779 | 193.9 |
| D | 1 | 52 | 8963 | 42.21 | 800 | 779 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

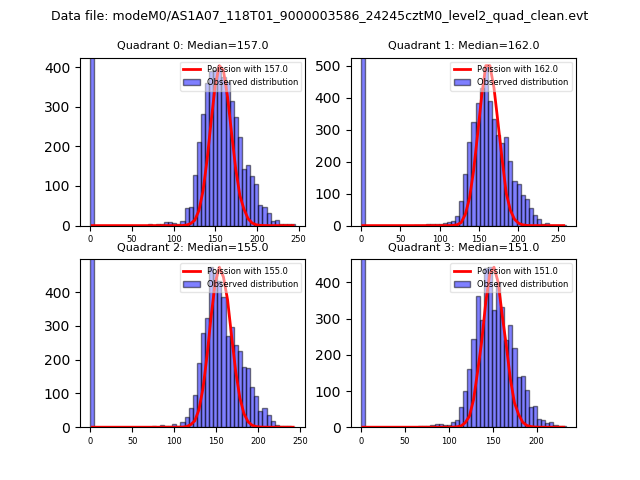

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

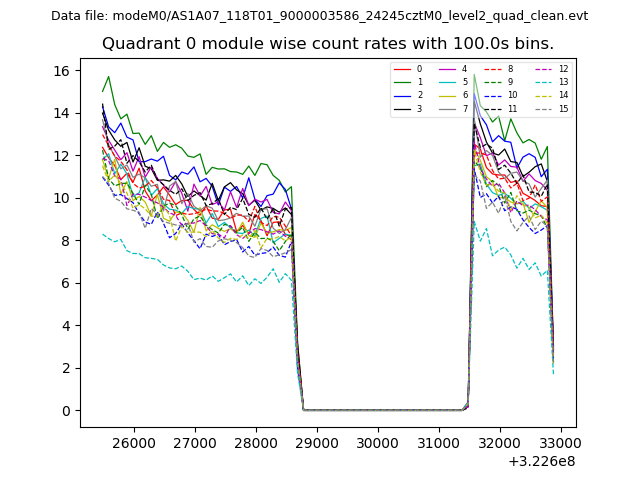

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

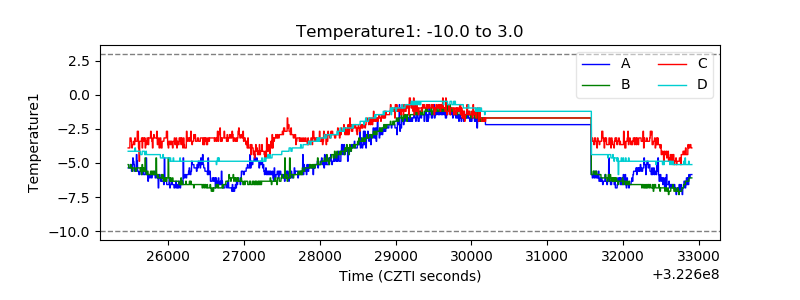

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

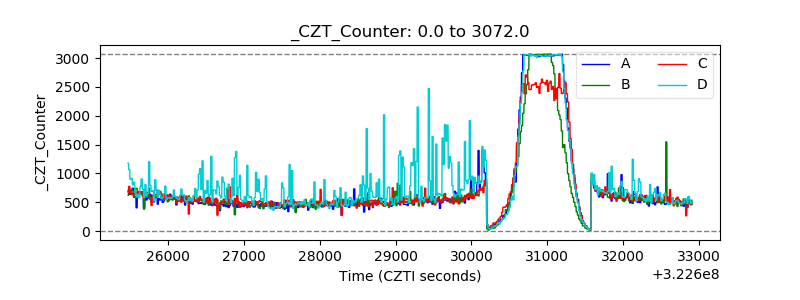

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

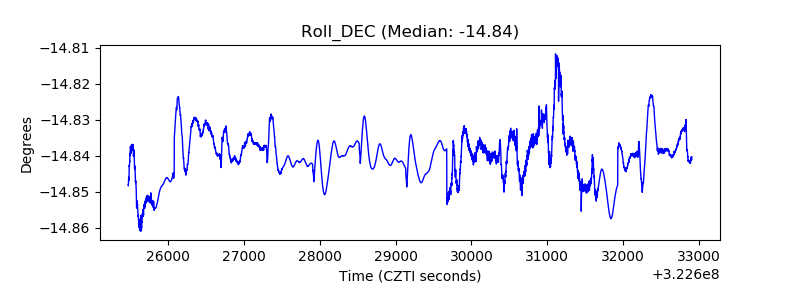

| _Roll_DEC |  |

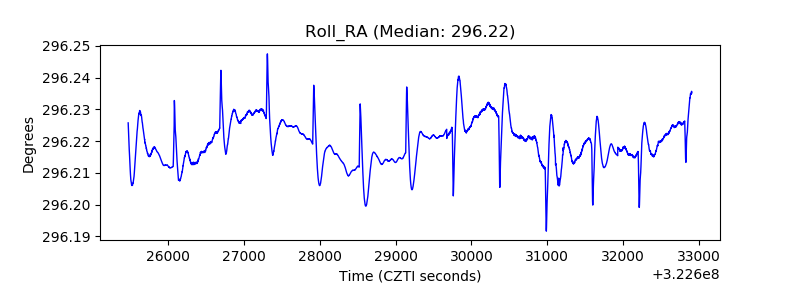

| _Roll_RA |  |
| Veto Counter |  |
