| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_118T01_9000003586_24251cztM0_level2.evt | modeM0/AS1A07_118T01_9000003586_24251cztM0_level2_quad_clean.evt |
| Size (bytes) | 718,151,040 | 75,522,240 |
| Size | 684.9 MB | 72.0 MB |
| Events in quadrant A | 3,322,045 | 466,615 |
| Events in quadrant B | 3,557,820 | 473,369 |
| Events in quadrant C | 3,603,831 | 455,531 |
| Events in quadrant D | 10,792,237 | 403,767 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14334 | 1 |
| B | 0 | 14868 | 1 |
| C | 0 | 14985 | 1 |
| D | 0 | 36916 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7000 | 96 | 1.371429% |
| B | 7000 | 124 | 1.771429% |
| C | 7000 | 114 | 1.628571% |
| D | 7001 | 2566 | 36.651907% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7340 | 7000 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7340 | 7000 | 17 | 17 | 0.23% | 0.24% |  |
| C | 7340 | 7000 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7341 | 7001 | 2353 | 2353 | 32.05% | 33.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 20400 | 111.97 | 857 | 840 | 174.7 |
| A | 13 | 254 | 11028 | 58.32 | 857 | 840 | 174.7 |
| A | 3 | 137 | 7536 | 38.33 | 857 | 840 | 174.7 |
| B | 0 | 190 | 46063 | 276.09 | 850 | 830 | 163.8 |
| B | 5 | 172 | 40567 | 242.54 | 850 | 830 | 163.8 |
| B | 12 | 17 | 38832 | 231.95 | 850 | 830 | 163.8 |
| C | 7 | 247 | 258993 | 1325.33 | 822 | 829 | 194.8 |
| C | 14 | 238 | 129089 | 658.45 | 822 | 829 | 194.8 |
| C | 13 | 61 | 5760 | 25.31 | 822 | 829 | 194.8 |
| D | 7 | 238 | 5939081 | 33177.07 | 728 | 706 | 179.0 |
| D | 1 | 52 | 1350607 | 7541.75 | 728 | 706 | 179.0 |
| D | 8 | 195 | 666396 | 3719.14 | 728 | 706 | 179.0 |

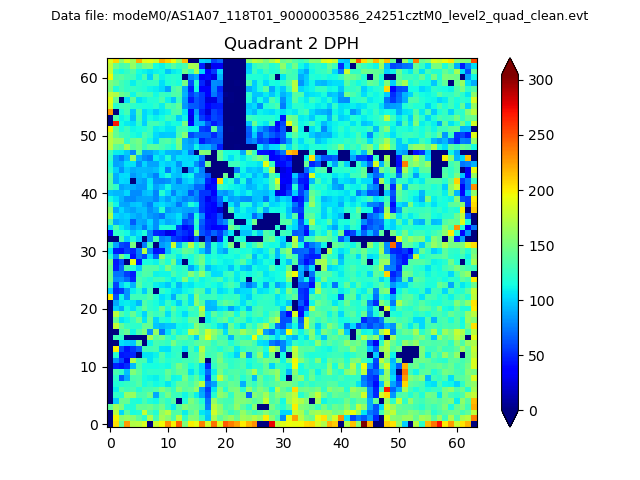

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

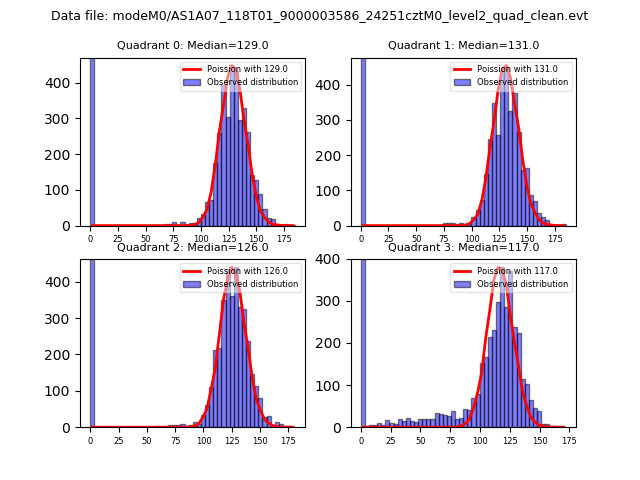

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

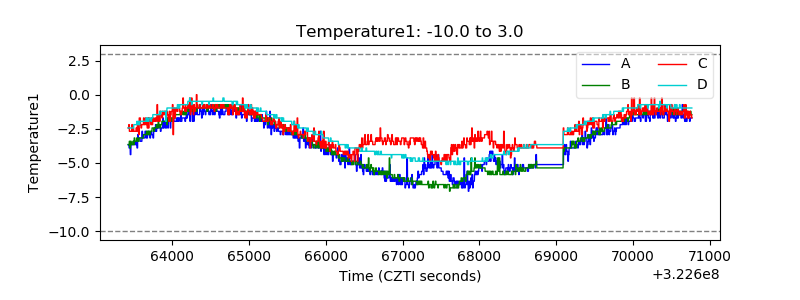

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

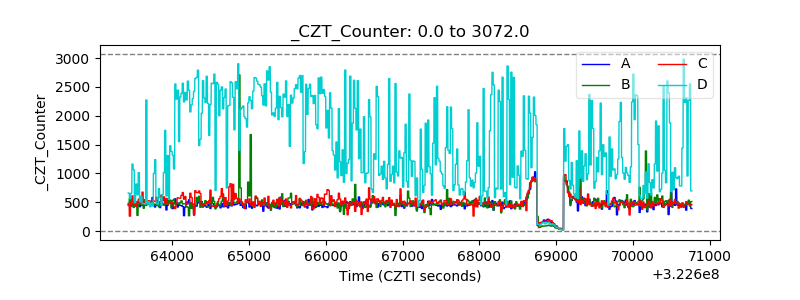

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

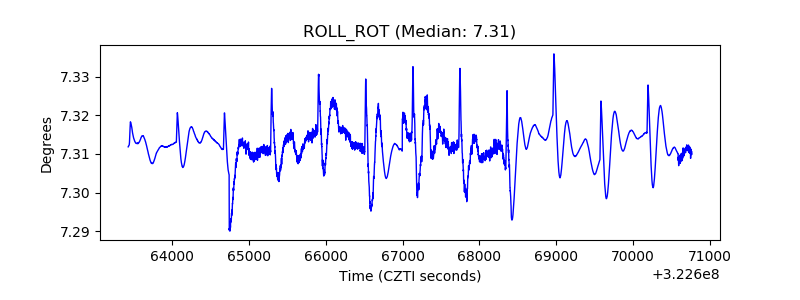

| _ROLL_ROT |  |
| _Roll_DEC |  |

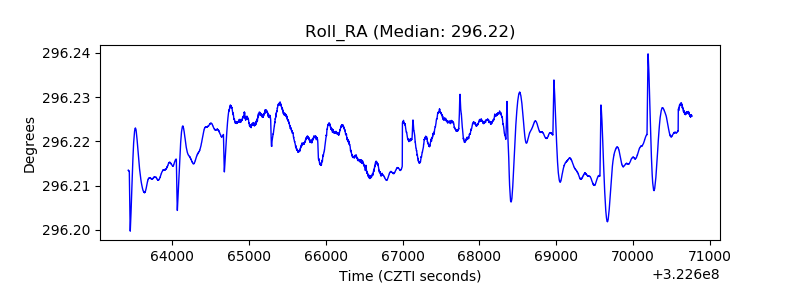

| _Roll_RA |  |

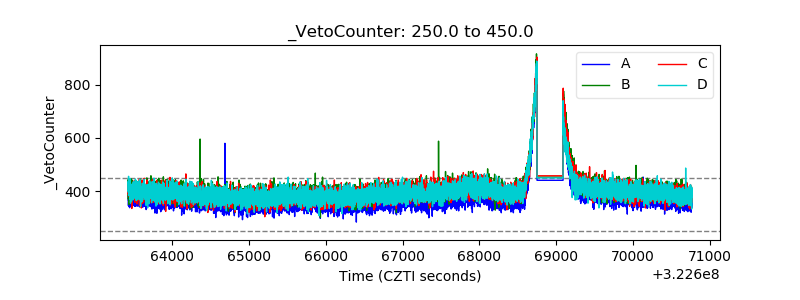

| Veto Counter |  |
