| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_118T01_9000003586_24253cztM0_level2.evt | modeM0/AS1A07_118T01_9000003586_24253cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,000,808,640 | 142,032,960 |
| Size | 954.4 MB | 135.5 MB |
| Events in quadrant A | 6,111,006 | 871,528 |
| Events in quadrant B | 6,698,290 | 882,876 |
| Events in quadrant C | 6,763,757 | 846,244 |
| Events in quadrant D | 9,870,378 | 814,704 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26271 | 3 |
| B | 0 | 27911 | 3 |
| C | 0 | 27942 | 3 |
| D | 0 | 37828 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 262 | 0 |
| B | 0 | 262 | 0 |
| C | 0 | 262 | 0 |
| D | 0 | 262 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12809 | 121 | 0.944648% |
| B | 12810 | 170 | 1.327088% |
| C | 12810 | 196 | 1.530055% |
| D | 12810 | 913 | 7.127244% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14079 | 12809 | 0 | 0 | 0.00% | 0.00% |  |
| B | 14080 | 12810 | 15 | 15 | 0.11% | 0.12% |  |
| C | 14080 | 12810 | 2 | 2 | 0.01% | 0.02% |  |
| D | 14080 | 12810 | 743 | 743 | 5.28% | 5.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 40411 | 122.22 | 1574 | 1538 | 318.0 |
| A | 13 | 254 | 20102 | 58.37 | 1574 | 1538 | 318.0 |
| A | 3 | 137 | 14033 | 39.29 | 1574 | 1538 | 318.0 |
| B | 15 | 33 | 268275 | 888.74 | 1561 | 1519 | 300.2 |
| B | 4 | 171 | 137152 | 451.88 | 1561 | 1519 | 300.2 |
| B | 0 | 189 | 81453 | 266.31 | 1561 | 1519 | 300.2 |
| C | 7 | 247 | 556986 | 1566.13 | 1507 | 1515 | 354.7 |
| C | 14 | 238 | 237976 | 666.69 | 1507 | 1515 | 354.7 |
| C | 2 | 16 | 66646 | 183.63 | 1507 | 1515 | 354.7 |
| D | 7 | 238 | 2257138 | 6168.69 | 1501 | 1459 | 365.7 |
| D | 1 | 52 | 1134157 | 3097.63 | 1501 | 1459 | 365.7 |
| D | 8 | 195 | 581875 | 1587.28 | 1501 | 1459 | 365.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

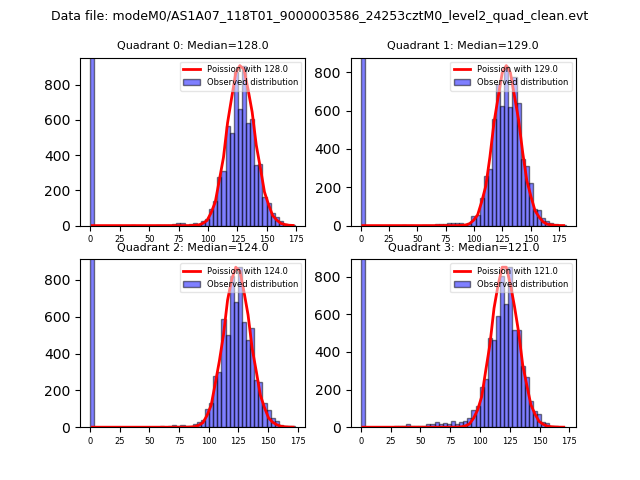

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

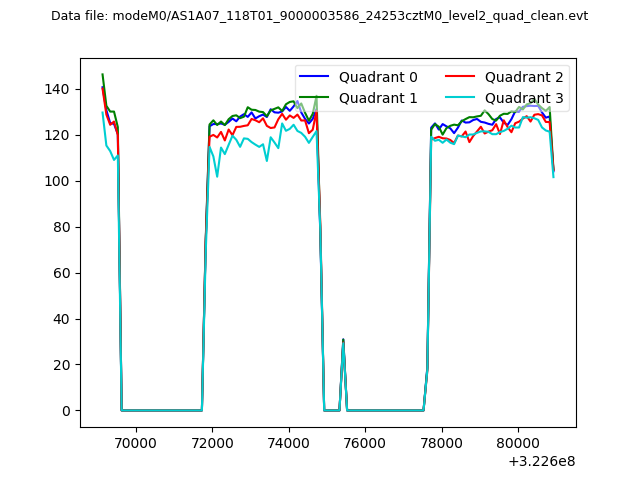

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

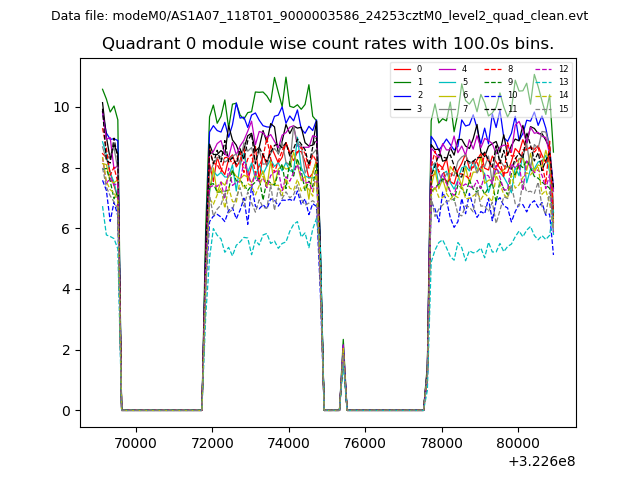

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

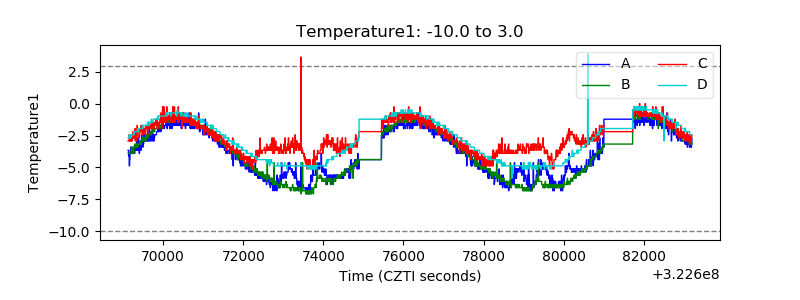

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

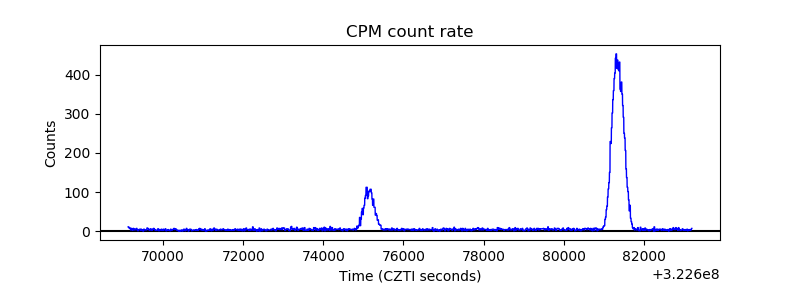

| _CPM_Rate |  |

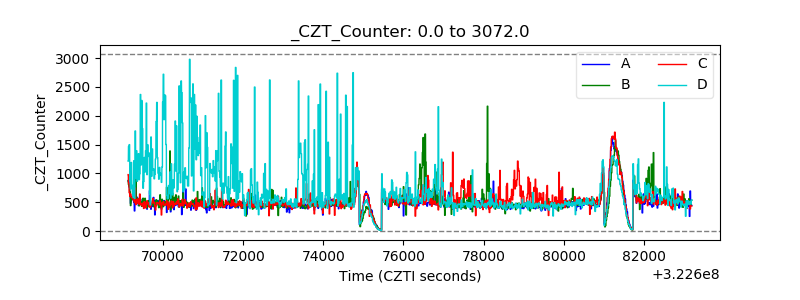

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

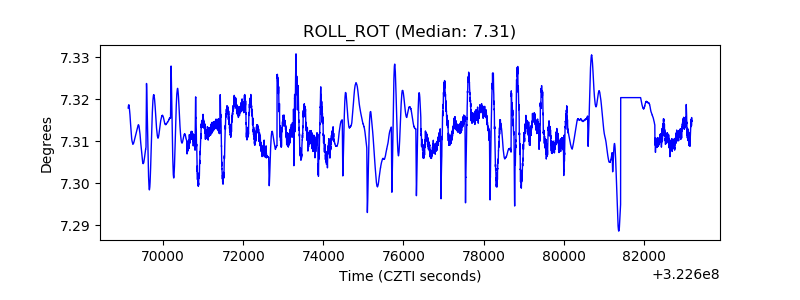

| _ROLL_ROT |  |
| _Roll_DEC |  |

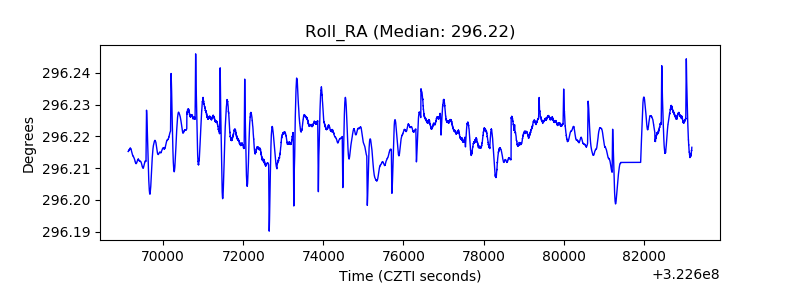

| _Roll_RA |  |
| Veto Counter |  |
