| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_118T01_9000003586_24271cztM0_level2.evt | modeM0/AS1A07_118T01_9000003586_24271cztM0_level2_quad_clean.evt |
| Size (bytes) | 585,080,640 | 83,972,160 |
| Size | 558.0 MB | 80.1 MB |
| Events in quadrant A | 3,659,103 | 530,931 |
| Events in quadrant B | 3,395,743 | 547,932 |
| Events in quadrant C | 3,712,003 | 519,482 |
| Events in quadrant D | 6,521,239 | 499,977 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15093 | 2 |
| B | 0 | 14215 | 2 |
| C | 0 | 15185 | 2 |
| D | 0 | 23960 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6376 | 134 | 2.101631% |
| B | 6376 | 103 | 1.615433% |
| C | 6376 | 141 | 2.211418% |
| D | 6375 | 379 | 5.945098% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6376 | 81 | 81 | 1.08% | 1.27% |  |
| B | 7526 | 6376 | 17 | 17 | 0.23% | 0.27% |  |
| C | 7526 | 6376 | 29 | 29 | 0.39% | 0.45% |  |
| D | 7525 | 6375 | 306 | 306 | 4.07% | 4.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 486252 | 2937.16 | 823 | 805 | 165.3 |
| A | 13 | 254 | 10762 | 60.24 | 823 | 805 | 165.3 |
| A | 3 | 137 | 7069 | 37.9 | 823 | 805 | 165.3 |
| B | 0 | 245 | 127648 | 812.77 | 828 | 810 | 156.1 |
| B | 0 | 229 | 27700 | 172.31 | 828 | 810 | 156.1 |
| B | 12 | 111 | 18219 | 111.56 | 828 | 810 | 156.1 |
| C | 2 | 16 | 265274 | 1419.63 | 796 | 801 | 186.3 |
| C | 7 | 247 | 206252 | 1102.82 | 796 | 801 | 186.3 |
| C | 14 | 238 | 126841 | 676.56 | 796 | 801 | 186.3 |
| D | 8 | 195 | 2251480 | 11600.36 | 794 | 771 | 194.0 |
| D | 1 | 52 | 920413 | 4739.92 | 794 | 771 | 194.0 |
| D | 7 | 238 | 150015 | 769.22 | 794 | 771 | 194.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

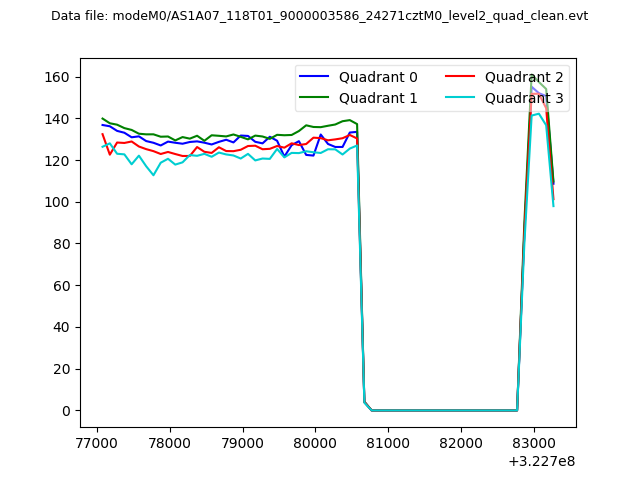

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

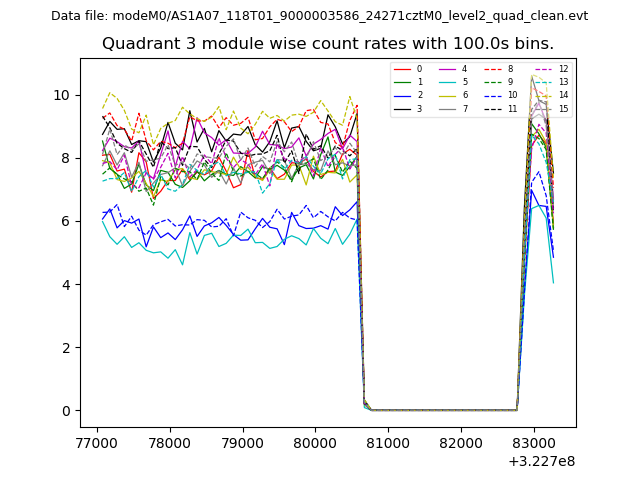

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

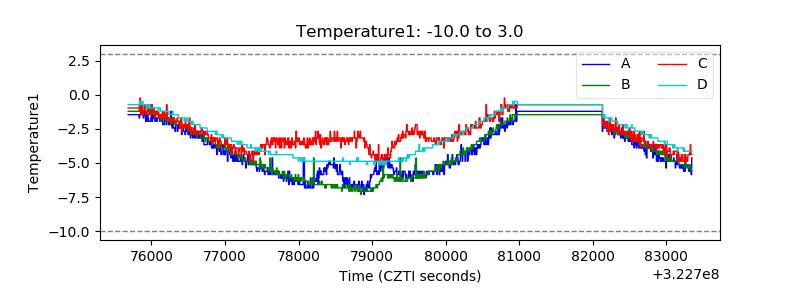

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

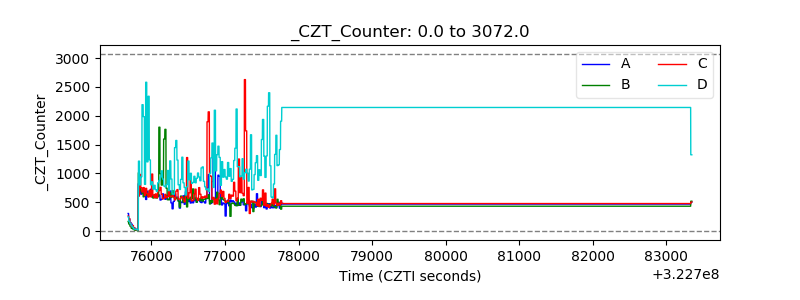

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

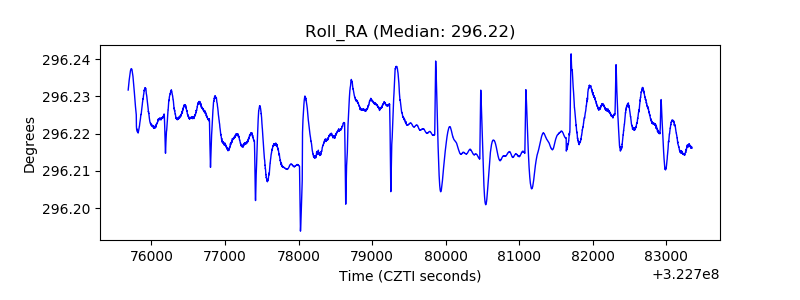

| _Roll_RA |  |
