| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_027T10_9000003592_24293cztM0_level2.evt | modeM0/AS1A07_027T10_9000003592_24293cztM0_level2_quad_clean.evt |
| Size (bytes) | 695,710,080 | 83,102,400 |
| Size | 663.5 MB | 79.3 MB |
| Events in quadrant A | 3,850,334 | 506,406 |
| Events in quadrant B | 3,910,652 | 515,119 |
| Events in quadrant C | 6,219,523 | 482,234 |
| Events in quadrant D | 6,559,175 | 468,012 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16332 | 2 |
| B | 0 | 16432 | 2 |
| C | 0 | 24138 | 2 |
| D | 0 | 24871 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7839 | 321 | 4.094910% |
| B | 7840 | 366 | 4.668367% |
| C | 7840 | 500 | 6.377551% |
| D | 7840 | 701 | 8.941327% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7894 | 7839 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7895 | 7840 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7895 | 7840 | 15 | 15 | 0.19% | 0.19% |  |
| D | 7895 | 7840 | 357 | 357 | 4.52% | 4.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11731 | 52.83 | 998 | 975 | 203.6 |
| A | 3 | 137 | 9207 | 40.43 | 998 | 975 | 203.6 |
| A | 0 | 226 | 8562 | 37.26 | 998 | 975 | 203.6 |
| B | 12 | 111 | 24195 | 120.8 | 990 | 962 | 192.3 |
| B | 11 | 111 | 21464 | 106.6 | 990 | 962 | 192.3 |
| B | 14 | 111 | 18741 | 92.44 | 990 | 962 | 192.3 |
| C | 7 | 247 | 2078771 | 9292.95 | 950 | 954 | 223.6 |
| C | 2 | 16 | 278919 | 1243.19 | 950 | 954 | 223.6 |
| C | 14 | 238 | 147511 | 655.47 | 950 | 954 | 223.6 |
| D | 1 | 52 | 2348065 | 9970.88 | 954 | 926 | 235.4 |
| D | 8 | 195 | 356951 | 1512.43 | 954 | 926 | 235.4 |
| D | 12 | 233 | 161519 | 682.22 | 954 | 926 | 235.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

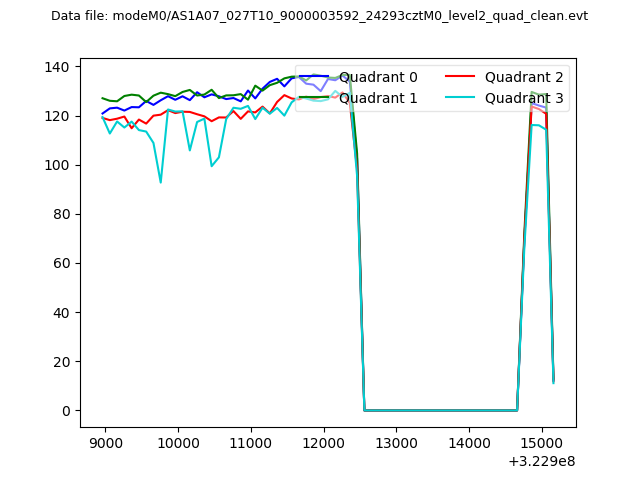

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

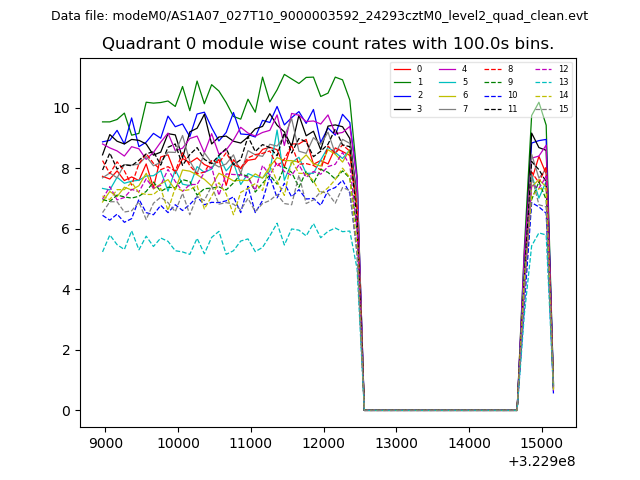

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

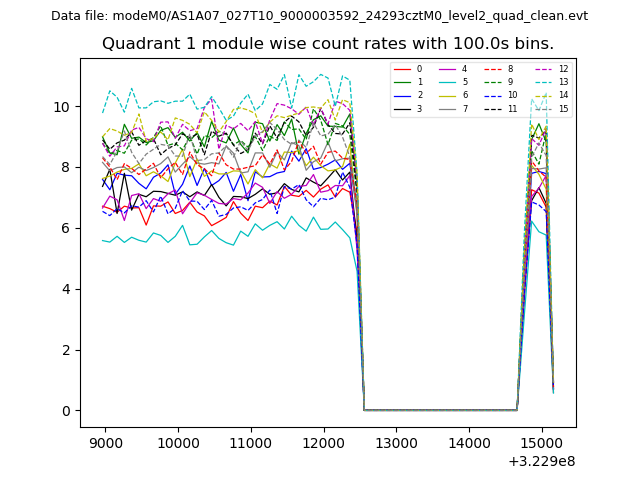

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

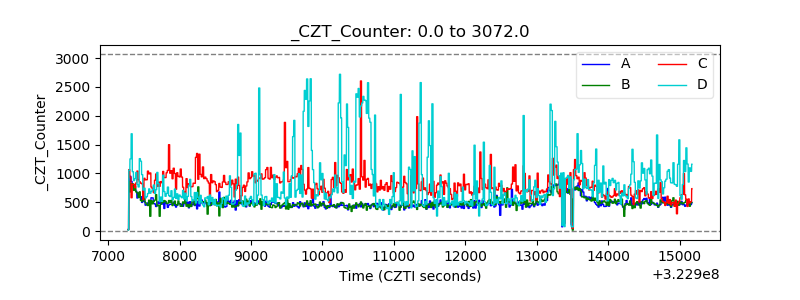

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

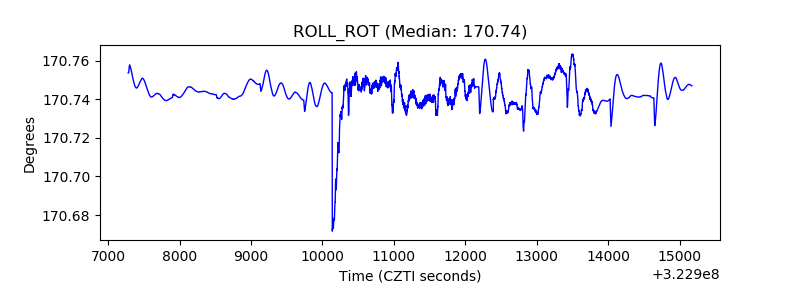

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

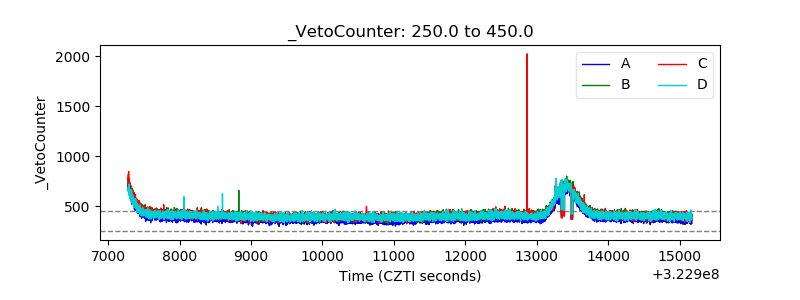

| Veto Counter |  |
