| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24301cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24301cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,759,360 | 110,750,400 |
| Size | 547.2 MB | 105.6 MB |
| Events in quadrant A | 3,375,370 | 729,709 |
| Events in quadrant B | 3,470,374 | 760,377 |
| Events in quadrant C | 4,255,877 | 728,582 |
| Events in quadrant D | 5,819,105 | 666,705 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14381 | 2 |
| B | 0 | 14648 | 2 |
| C | 0 | 17506 | 2 |
| D | 0 | 21971 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6724 | 49 | 0.728733% |
| B | 6725 | 66 | 0.981413% |
| C | 6725 | 143 | 2.126394% |
| D | 6725 | 786 | 11.687732% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

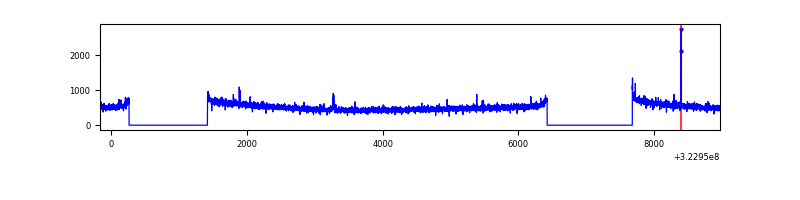

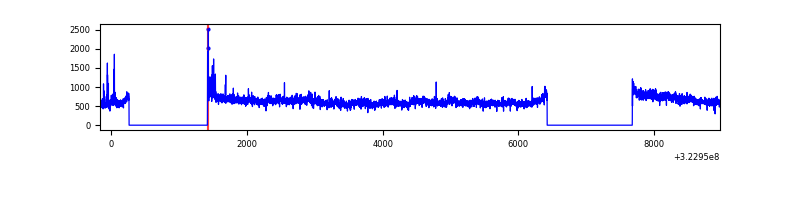

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9134 | 6724 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9135 | 6726 | 2 | 2 | 0.02% | 0.03% |  |
| C | 9135 | 6725 | 2 | 2 | 0.02% | 0.03% |  |
| D | 9135 | 6725 | 674 | 674 | 7.38% | 10.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10560 | 55.13 | 875 | 857 | 176.0 |
| A | 3 | 137 | 7634 | 38.51 | 875 | 857 | 176.0 |
| A | 0 | 226 | 7587 | 38.24 | 875 | 857 | 176.0 |
| B | 12 | 111 | 19810 | 115.23 | 882 | 859 | 164.5 |
| B | 11 | 111 | 17552 | 101.5 | 882 | 859 | 164.5 |
| B | 14 | 111 | 15518 | 89.13 | 882 | 859 | 164.5 |
| C | 7 | 247 | 725471 | 3655.43 | 855 | 863 | 198.2 |
| C | 14 | 238 | 138737 | 695.53 | 855 | 863 | 198.2 |
| C | 2 | 16 | 43407 | 214.62 | 855 | 863 | 198.2 |
| D | 1 | 52 | 2200396 | 11167.17 | 817 | 795 | 197.0 |
| D | 8 | 195 | 284591 | 1440.81 | 817 | 795 | 197.0 |
| D | 12 | 233 | 201858 | 1020.78 | 817 | 795 | 197.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

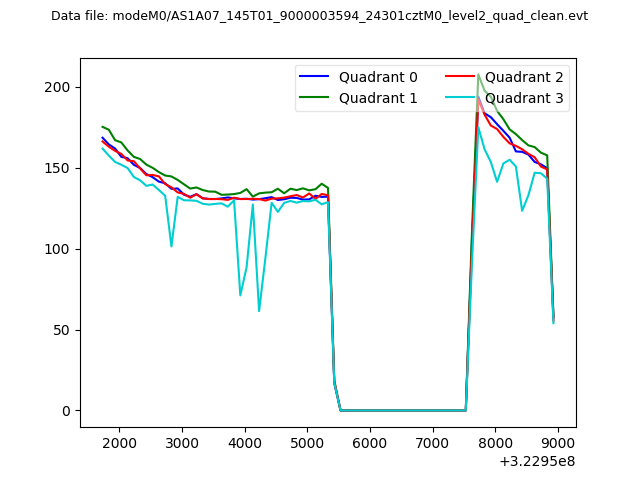

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

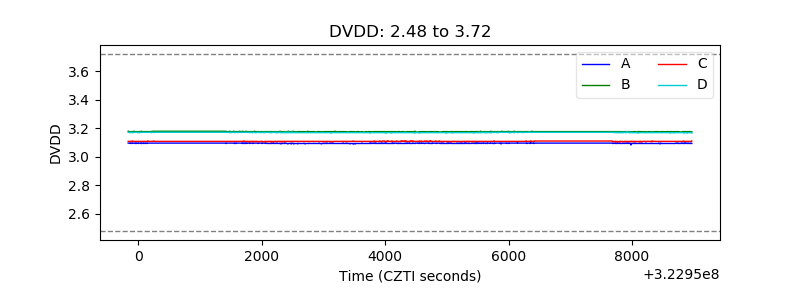

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

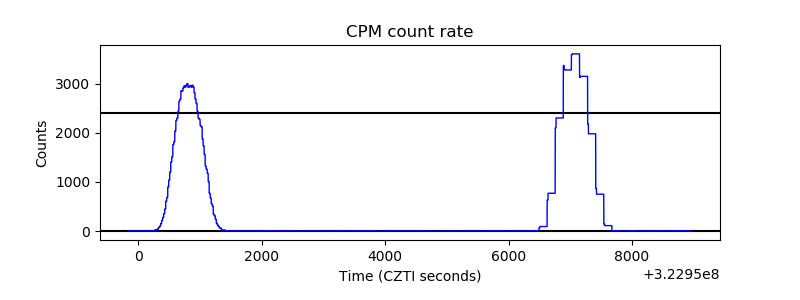

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

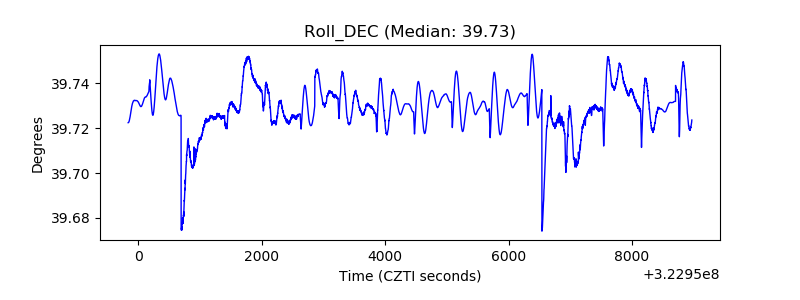

| _Roll_DEC |  |

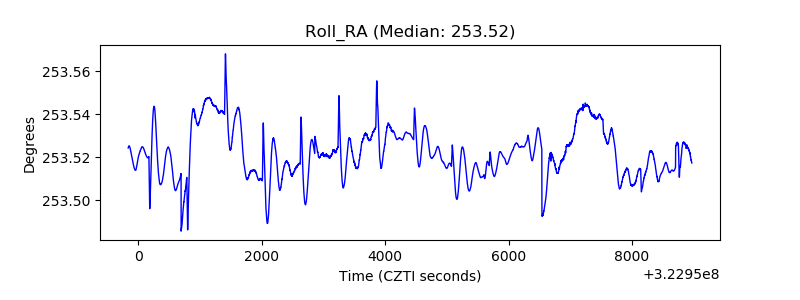

| _Roll_RA |  |

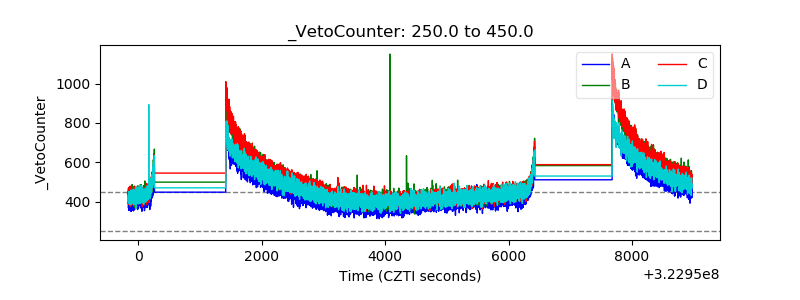

| Veto Counter |  |
