| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24306cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24306cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,477,440 | 104,495,040 |
| Size | 499.2 MB | 99.7 MB |
| Events in quadrant A | 3,427,995 | 666,775 |
| Events in quadrant B | 3,503,145 | 686,867 |
| Events in quadrant C | 4,298,673 | 667,231 |
| Events in quadrant D | 4,137,865 | 645,243 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14804 | 2 |
| B | 0 | 14876 | 2 |
| C | 0 | 17544 | 2 |
| D | 0 | 16997 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7161 | 98 | 1.368524% |
| B | 7161 | 130 | 1.815389% |
| C | 7161 | 178 | 2.485686% |
| D | 7161 | 173 | 2.415864% |

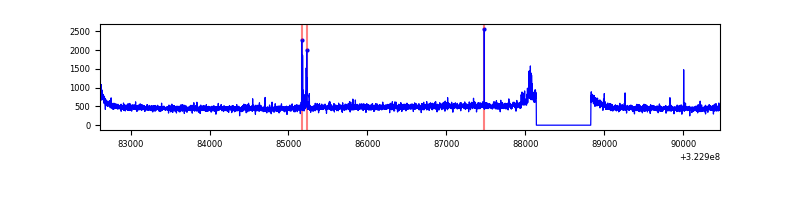

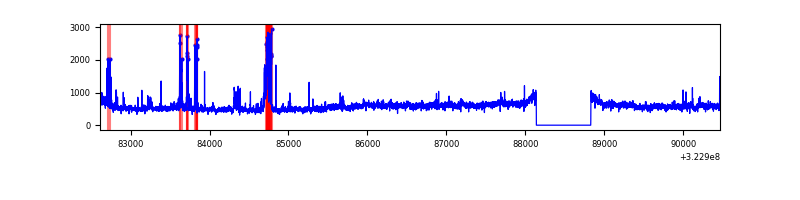

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7851 | 7162 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7851 | 7161 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7851 | 7162 | 44 | 44 | 0.56% | 0.61% |  |
| D | 7851 | 7161 | 108 | 108 | 1.38% | 1.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 39570 | 219.03 | 875 | 858 | 176.7 |
| A | 5 | 203 | 15827 | 84.69 | 875 | 858 | 176.7 |
| A | 13 | 254 | 10616 | 55.21 | 875 | 858 | 176.7 |
| B | 0 | 230 | 45947 | 272.87 | 873 | 851 | 165.3 |
| B | 12 | 17 | 22335 | 130.0 | 873 | 851 | 165.3 |
| B | 12 | 111 | 20597 | 119.48 | 873 | 851 | 165.3 |
| C | 7 | 247 | 573552 | 2920.55 | 841 | 849 | 196.1 |
| C | 2 | 16 | 270219 | 1373.68 | 841 | 849 | 196.1 |
| C | 14 | 238 | 134604 | 682.1 | 841 | 849 | 196.1 |
| D | 1 | 52 | 628708 | 3035.03 | 848 | 823 | 206.9 |
| D | 8 | 195 | 199105 | 958.44 | 848 | 823 | 206.9 |
| D | 12 | 233 | 92494 | 443.11 | 848 | 823 | 206.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

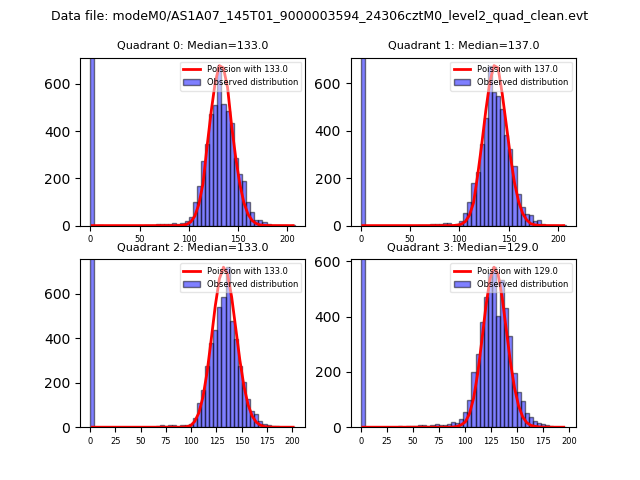

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

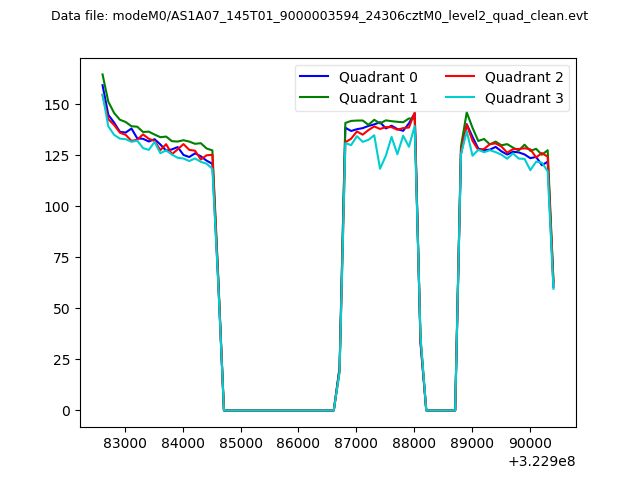

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

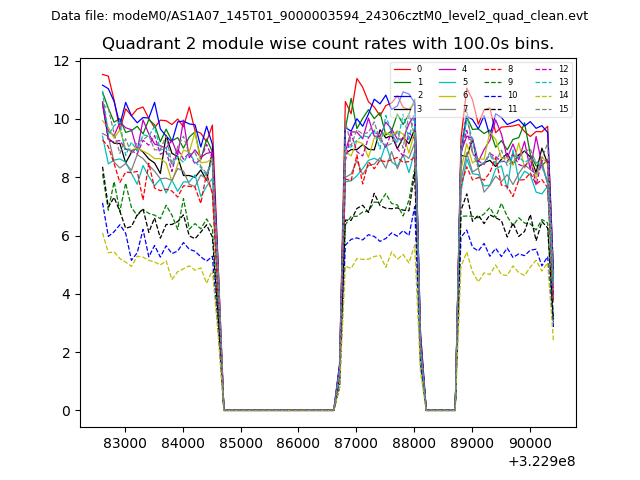

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

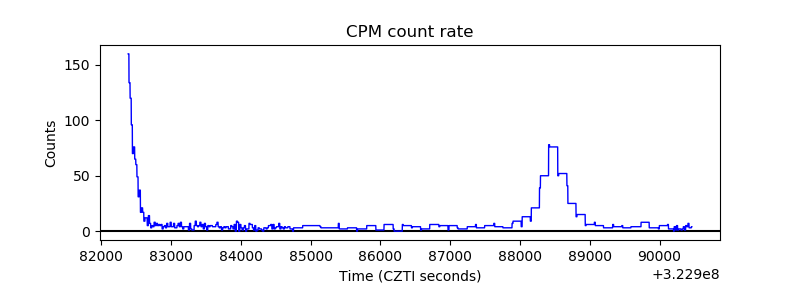

| _CPM_Rate |  |
| CZT Counter |  |

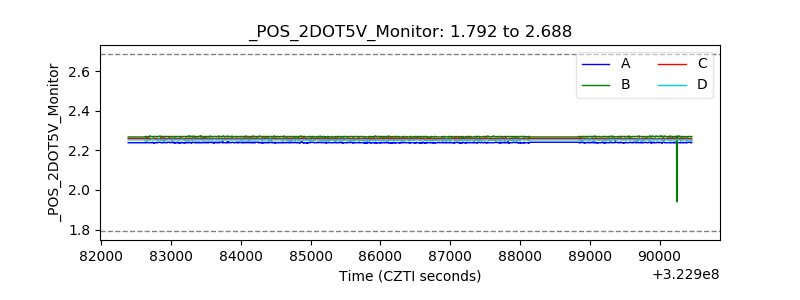

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

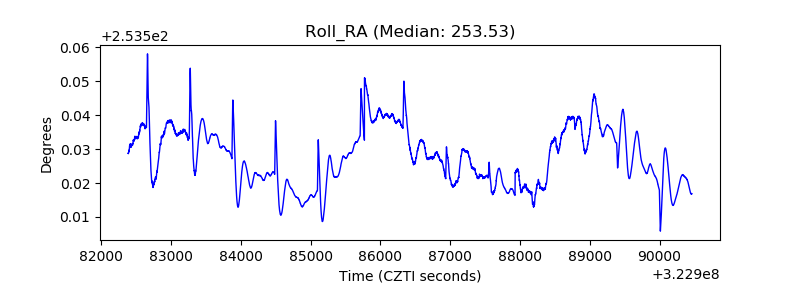

| _Roll_RA |  |
| Veto Counter |  |
