| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24308cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24308cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,107,200 | 95,221,440 |
| Size | 531.3 MB | 90.8 MB |
| Events in quadrant A | 3,790,842 | 585,387 |
| Events in quadrant B | 3,646,107 | 603,645 |
| Events in quadrant C | 4,498,702 | 590,272 |
| Events in quadrant D | 4,424,986 | 579,780 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16170 | 1 |
| B | 0 | 15606 | 2 |
| C | 0 | 18749 | 1 |
| D | 0 | 18039 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7537 | 258 | 3.423113% |
| B | 7537 | 277 | 3.675202% |
| C | 7537 | 325 | 4.312061% |
| D | 7537 | 334 | 4.431471% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

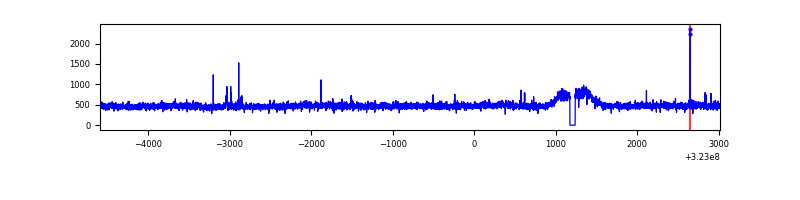

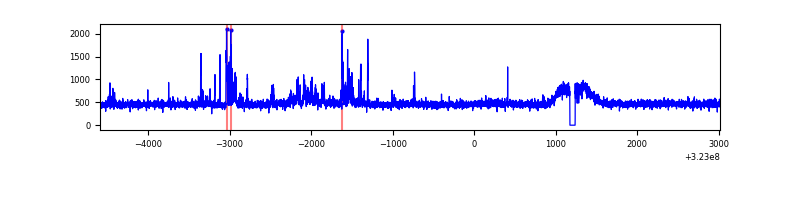

| A | 7602 | 7537 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7602 | 7537 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7602 | 7537 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7601 | 7536 | 95 | 95 | 1.25% | 1.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 221547 | 1170.01 | 924 | 904 | 188.6 |
| A | 13 | 254 | 12359 | 60.74 | 924 | 904 | 188.6 |
| A | 3 | 137 | 8632 | 40.98 | 924 | 904 | 188.6 |
| B | 12 | 111 | 21923 | 117.39 | 919 | 893 | 179.1 |
| B | 11 | 111 | 19756 | 105.29 | 919 | 893 | 179.1 |
| B | 14 | 111 | 17583 | 93.16 | 919 | 893 | 179.1 |
| C | 7 | 247 | 707027 | 3419.64 | 885 | 890 | 206.5 |
| C | 10 | 91 | 148971 | 717.12 | 885 | 890 | 206.5 |
| C | 14 | 238 | 139139 | 669.5 | 885 | 890 | 206.5 |
| D | 1 | 52 | 593067 | 2697.58 | 901 | 872 | 219.5 |
| D | 12 | 233 | 321471 | 1460.4 | 901 | 872 | 219.5 |
| D | 8 | 195 | 54226 | 243.04 | 901 | 872 | 219.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

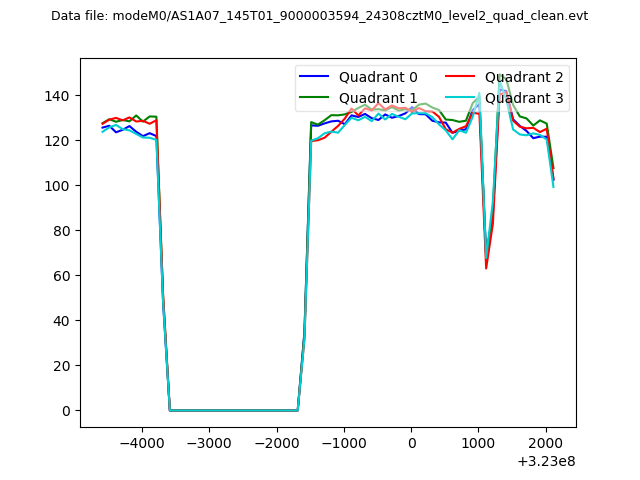

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

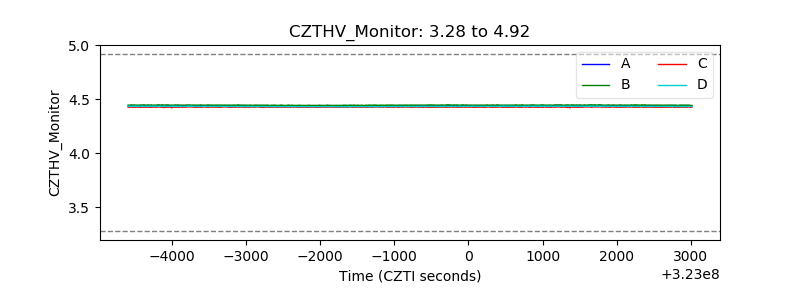

| CZT HV Monitor |  |

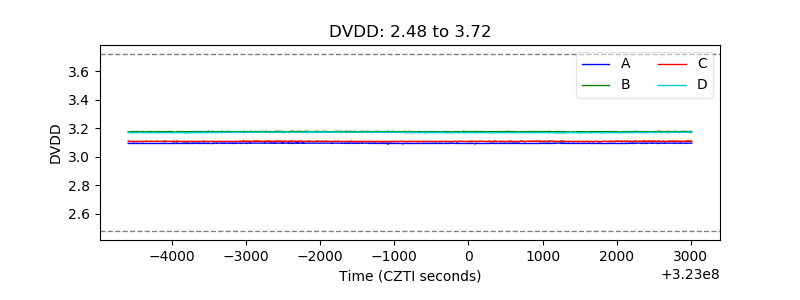

| D_VDD |  |
| Temperature 1 |  |

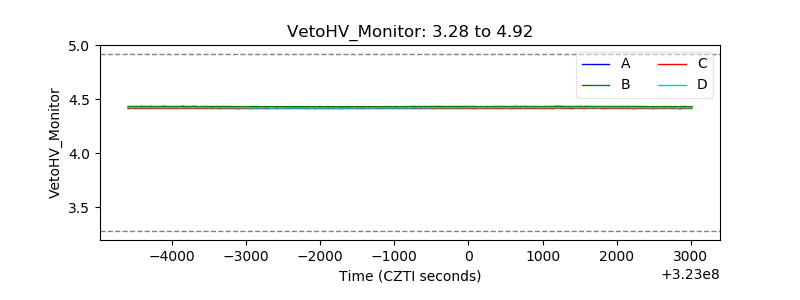

| Veto HV Monitor |  |
| Veto LLD |  |

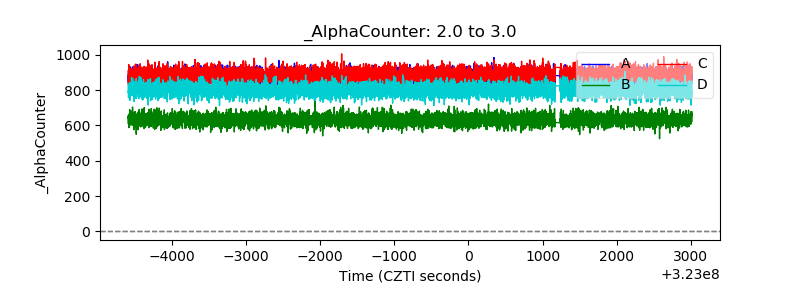

| Alpha Counter |  |

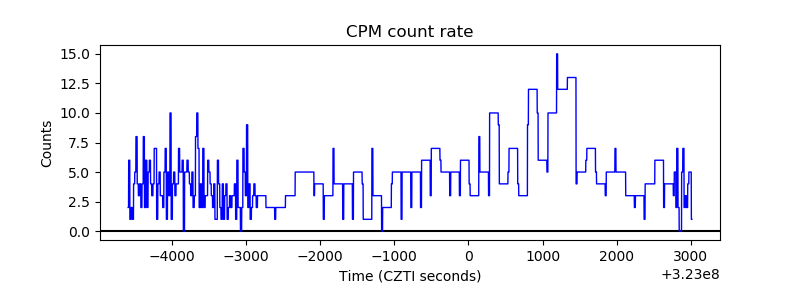

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
