| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24313cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24313cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,657,099,520 | 446,990,400 |
| Size | 2.5 GB | 426.3 MB |
| Events in quadrant A | 16,460,283 | 2,805,713 |
| Events in quadrant B | 16,884,580 | 2,859,094 |
| Events in quadrant C | 22,970,015 | 2,785,092 |
| Events in quadrant D | 21,839,075 | 2,727,960 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 71459 | 6 |
| B | 0 | 72055 | 6 |
| C | 0 | 93081 | 7 |
| D | 0 | 87818 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 698 | 0 |
| B | 0 | 698 | 0 |
| C | 0 | 698 | 0 |
| D | 0 | 698 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 34364 | 548 | 1.594692% |
| B | 34365 | 709 | 2.063146% |
| C | 34364 | 1139 | 3.314515% |
| D | 34364 | 1581 | 4.600745% |

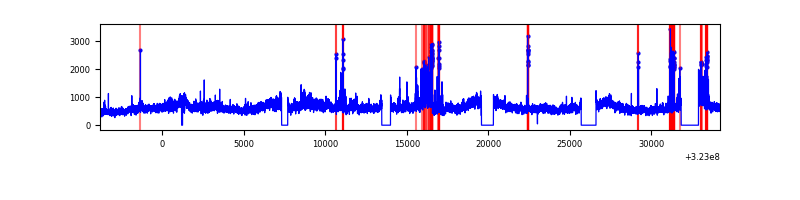

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 38060 | 34365 | 3 | 3 | 0.01% | 0.01% |  |
| B | 38061 | 34366 | 110 | 110 | 0.29% | 0.32% |  |
| C | 38060 | 34365 | 128 | 128 | 0.34% | 0.37% |  |
| D | 38060 | 34365 | 999 | 999 | 2.62% | 2.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 274505 | 320.35 | 4196 | 4101 | 844.1 |
| A | 13 | 254 | 54341 | 59.52 | 4196 | 4101 | 844.1 |
| A | 3 | 137 | 38999 | 41.34 | 4196 | 4101 | 844.1 |
| B | 5 | 32 | 353505 | 437.83 | 4183 | 4076 | 798.1 |
| B | 12 | 111 | 98565 | 118.39 | 4183 | 4076 | 798.1 |
| B | 0 | 230 | 93383 | 111.9 | 4183 | 4076 | 798.1 |
| C | 7 | 247 | 5227731 | 5544.91 | 4043 | 4080 | 942.1 |
| C | 2 | 16 | 1167364 | 1234.83 | 4043 | 4080 | 942.1 |
| C | 14 | 238 | 634934 | 669.65 | 4043 | 4080 | 942.1 |
| D | 1 | 52 | 3519132 | 3568.63 | 4063 | 3934 | 985.0 |
| D | 12 | 233 | 1041963 | 1053.81 | 4063 | 3934 | 985.0 |
| D | 9 | 1 | 1018446 | 1029.93 | 4063 | 3934 | 985.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

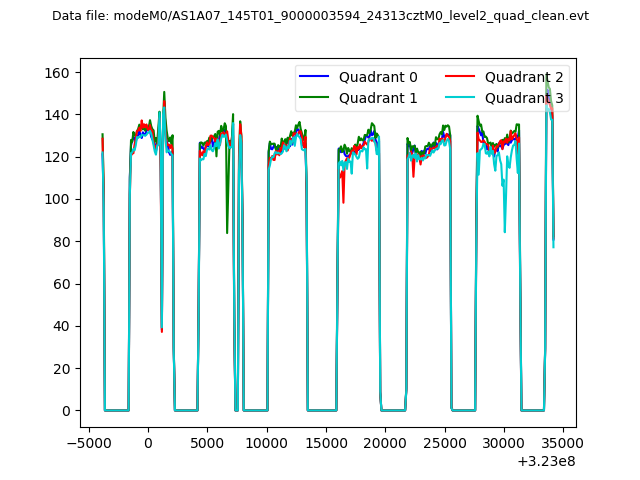

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

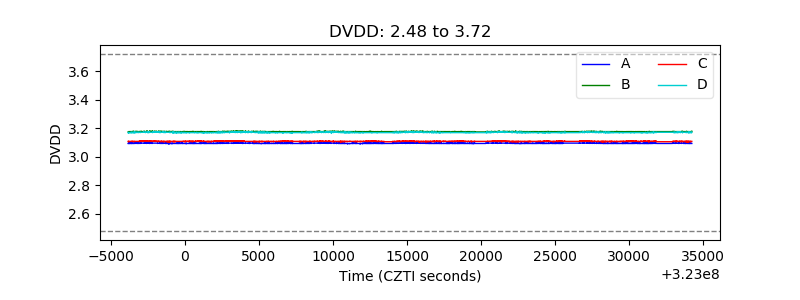

| D_VDD |  |
| Temperature 1 |  |

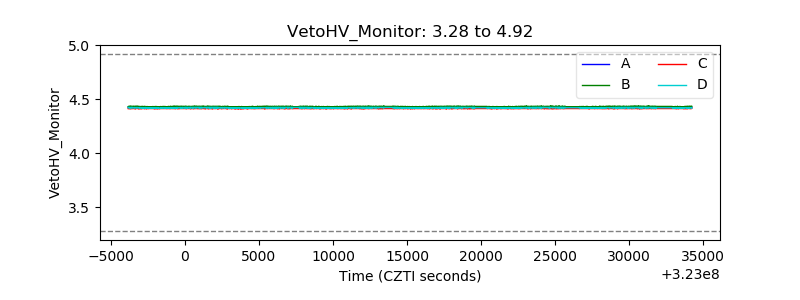

| Veto HV Monitor |  |

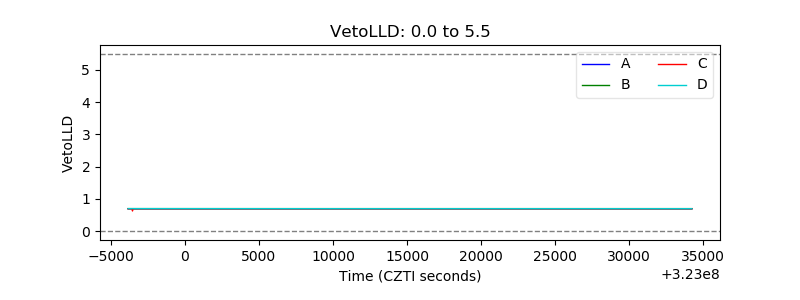

| Veto LLD |  |
| Alpha Counter |  |

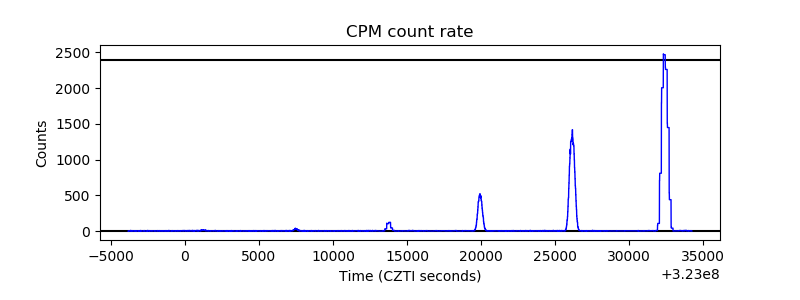

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

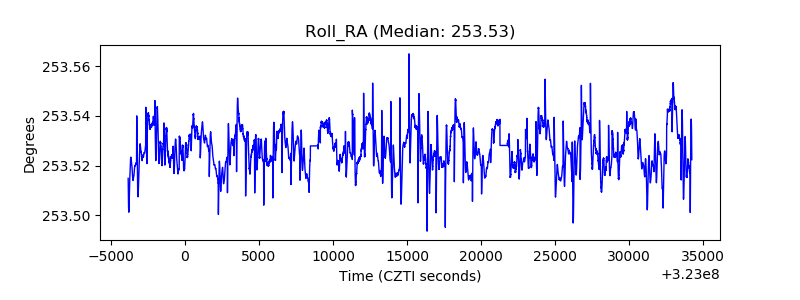

| _Roll_RA |  |
| Veto Counter |  |
