| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24317cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24317cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,711,040 | 109,791,360 |
| Size | 529.0 MB | 104.7 MB |
| Events in quadrant A | 3,139,936 | 735,711 |
| Events in quadrant B | 3,360,559 | 771,470 |
| Events in quadrant C | 4,956,992 | 718,691 |
| Events in quadrant D | 4,924,624 | 668,816 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13172 | 2 |
| B | 0 | 13821 | 2 |
| C | 0 | 19104 | 2 |
| D | 0 | 18588 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6168 | 40 | 0.648508% |
| B | 6168 | 74 | 1.199741% |
| C | 6167 | 338 | 5.480785% |
| D | 6167 | 484 | 7.848224% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7508 | 6169 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7508 | 6168 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7507 | 6167 | 94 | 94 | 1.25% | 1.52% |  |
| D | 7507 | 6167 | 439 | 439 | 5.85% | 7.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9819 | 55.98 | 814 | 799 | 161.1 |
| A | 0 | 226 | 6900 | 37.86 | 814 | 799 | 161.1 |
| A | 3 | 137 | 6754 | 36.96 | 814 | 799 | 161.1 |
| B | 0 | 219 | 122017 | 790.29 | 823 | 804 | 153.4 |
| B | 0 | 230 | 20244 | 126.75 | 823 | 804 | 153.4 |
| B | 12 | 111 | 17774 | 110.64 | 823 | 804 | 153.4 |
| C | 7 | 247 | 994720 | 5456.96 | 789 | 798 | 182.1 |
| C | 2 | 16 | 752092 | 4124.85 | 789 | 798 | 182.1 |
| C | 14 | 238 | 127201 | 693.99 | 789 | 798 | 182.1 |
| D | 12 | 218 | 1437513 | 7823.18 | 763 | 744 | 183.7 |
| D | 1 | 52 | 516460 | 2808.06 | 763 | 744 | 183.7 |
| D | 12 | 233 | 33463 | 178.15 | 763 | 744 | 183.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

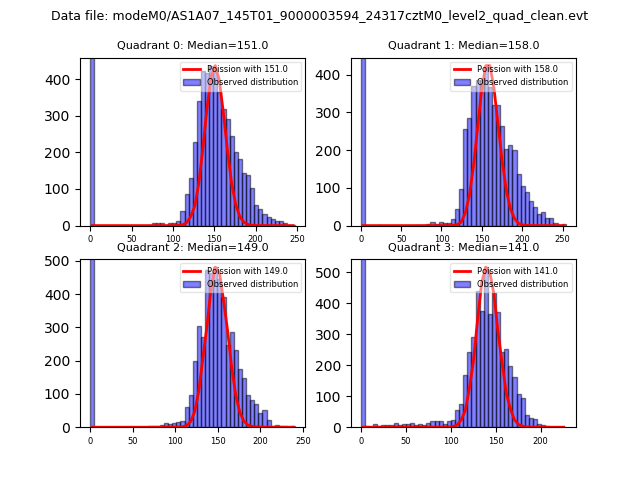

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

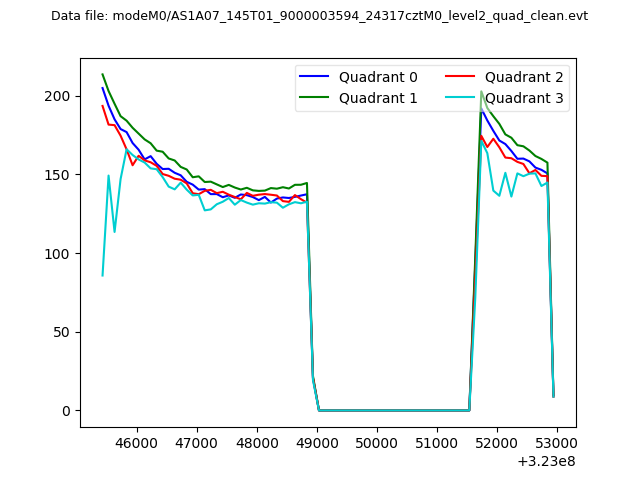

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

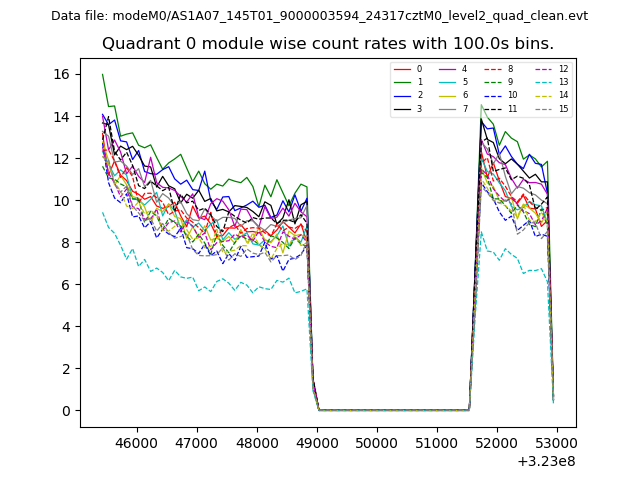

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

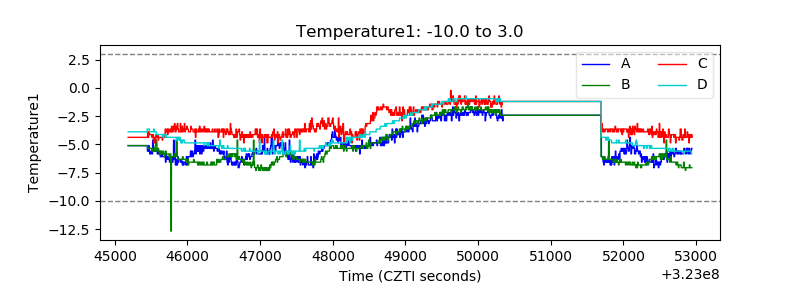

| Temperature 1 |  |

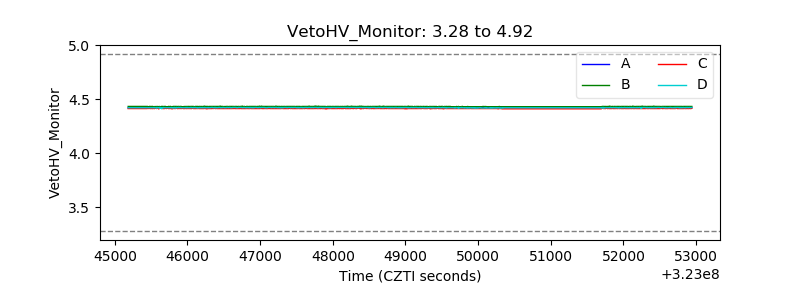

| Veto HV Monitor |  |
| Veto LLD |  |

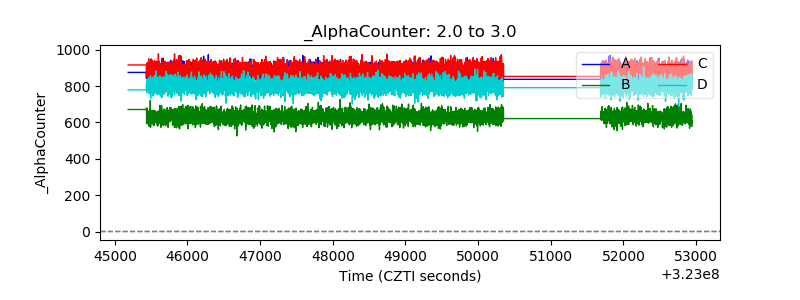

| Alpha Counter |  |

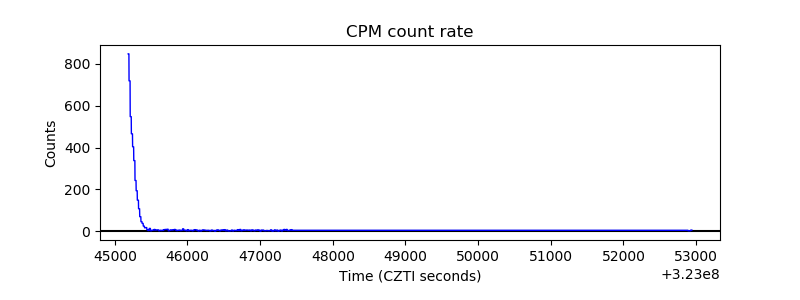

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

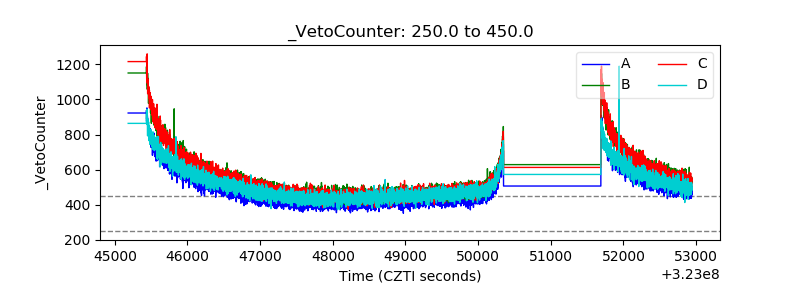

| Veto Counter |  |
