| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24330cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24330cztM0_level2_quad_clean.evt |
| Size (bytes) | 671,117,760 | 103,608,000 |
| Size | 640.0 MB | 98.8 MB |
| Events in quadrant A | 3,162,549 | 694,230 |
| Events in quadrant B | 3,228,785 | 723,734 |
| Events in quadrant C | 6,380,671 | 655,625 |
| Events in quadrant D | 7,132,093 | 629,129 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13532 | 2 |
| B | 0 | 13644 | 2 |
| C | 0 | 23648 | 2 |
| D | 0 | 25631 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6230 | 29 | 0.465490% |
| B | 6230 | 31 | 0.497592% |
| C | 6230 | 922 | 14.799358% |
| D | 6230 | 1040 | 16.693419% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

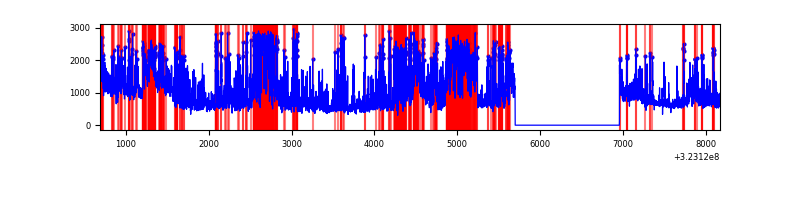

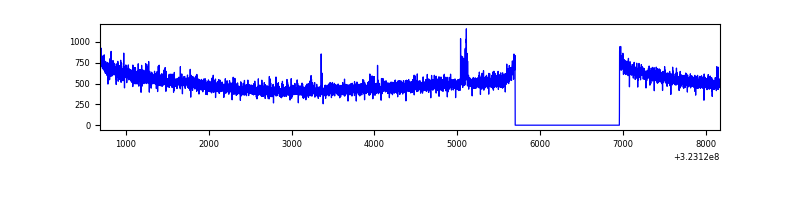

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7490 | 6231 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7490 | 6230 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7490 | 6230 | 688 | 688 | 9.19% | 11.04% |  |
| D | 7490 | 6230 | 800 | 800 | 10.68% | 12.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 17441 | 101.0 | 816 | 801 | 164.8 |
| A | 13 | 254 | 9121 | 50.5 | 816 | 801 | 164.8 |
| A | 3 | 137 | 7125 | 38.38 | 816 | 801 | 164.8 |
| B | 12 | 111 | 18253 | 112.52 | 822 | 801 | 155.1 |
| B | 11 | 111 | 16361 | 100.32 | 822 | 801 | 155.1 |
| B | 14 | 111 | 14519 | 88.44 | 822 | 801 | 155.1 |
| C | 2 | 16 | 2428787 | 13694.43 | 765 | 774 | 177.3 |
| C | 7 | 247 | 832458 | 4690.85 | 765 | 774 | 177.3 |
| C | 14 | 238 | 121976 | 683.6 | 765 | 774 | 177.3 |
| D | 12 | 218 | 2335041 | 12693.68 | 756 | 734 | 183.9 |
| D | 1 | 52 | 550259 | 2988.25 | 756 | 734 | 183.9 |
| D | 7 | 223 | 504028 | 2736.85 | 756 | 734 | 183.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

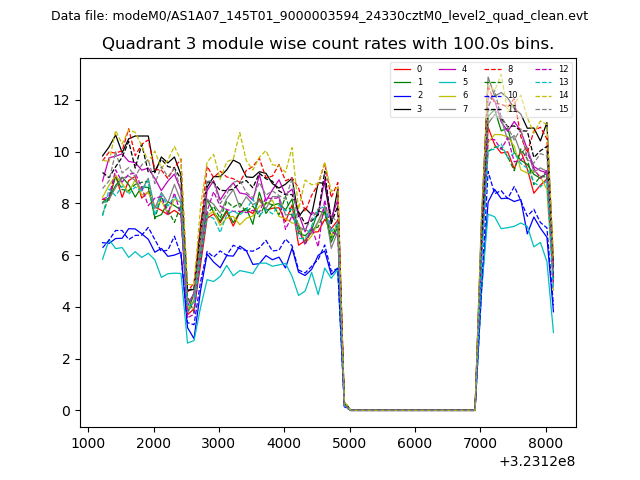

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

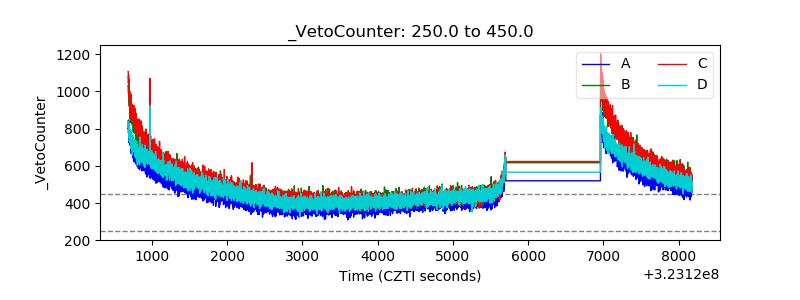

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

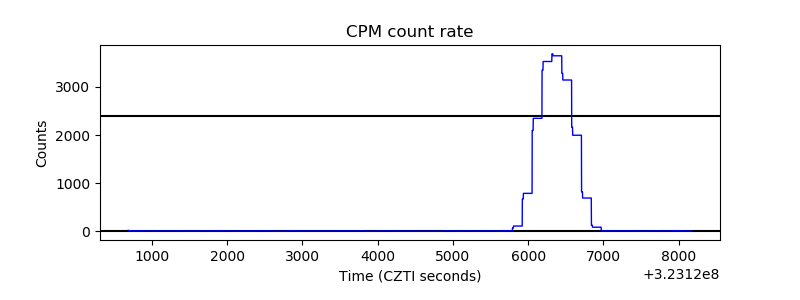

| _CPM_Rate |  |

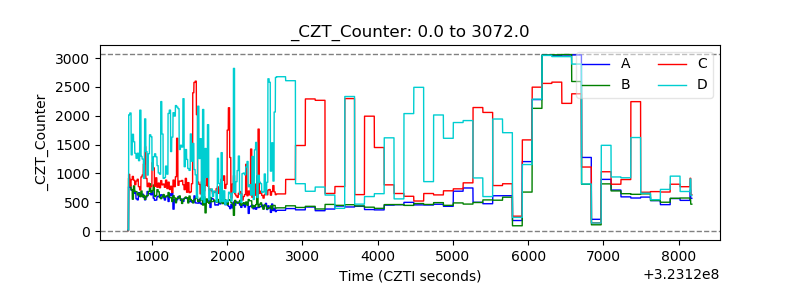

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

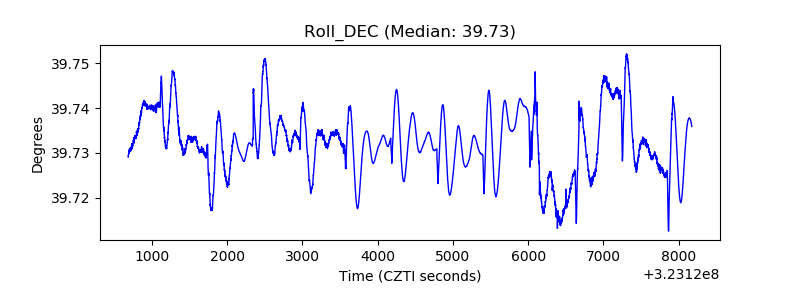

| _Roll_DEC |  |

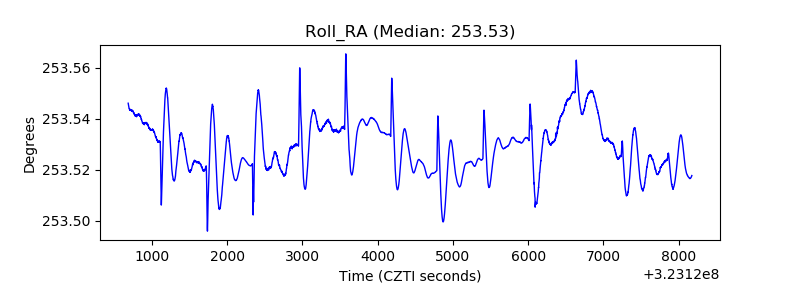

| _Roll_RA |  |
| Veto Counter |  |
