| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24331cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24331cztM0_level2_quad_clean.evt |
| Size (bytes) | 564,586,560 | 112,389,120 |
| Size | 538.4 MB | 107.2 MB |
| Events in quadrant A | 3,106,493 | 748,145 |
| Events in quadrant B | 3,211,754 | 785,199 |
| Events in quadrant C | 4,696,800 | 742,282 |
| Events in quadrant D | 5,670,608 | 702,183 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13139 | 2 |
| B | 0 | 13423 | 2 |
| C | 0 | 18712 | 2 |
| D | 0 | 21278 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6104 | 20 | 0.327654% |
| B | 6104 | 33 | 0.540629% |
| C | 6104 | 208 | 3.407602% |
| D | 6103 | 454 | 7.438964% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7454 | 6105 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7454 | 6104 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7454 | 6104 | 29 | 29 | 0.39% | 0.48% |  |
| D | 7453 | 6103 | 353 | 353 | 4.74% | 5.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9168 | 52.49 | 805 | 791 | 159.6 |
| A | 3 | 137 | 6863 | 38.05 | 805 | 791 | 159.6 |
| A | 0 | 226 | 6816 | 37.75 | 805 | 791 | 159.6 |
| B | 0 | 230 | 22784 | 144.88 | 815 | 794 | 151.8 |
| B | 12 | 111 | 17537 | 110.31 | 815 | 794 | 151.8 |
| B | 11 | 111 | 15657 | 97.93 | 815 | 794 | 151.8 |
| C | 7 | 247 | 1129367 | 6305.42 | 785 | 792 | 179.0 |
| C | 2 | 16 | 362620 | 2021.56 | 785 | 792 | 179.0 |
| C | 14 | 238 | 126412 | 701.85 | 785 | 792 | 179.0 |
| D | 12 | 218 | 1156882 | 6240.94 | 765 | 744 | 185.3 |
| D | 1 | 52 | 629467 | 3393.91 | 765 | 744 | 185.3 |
| D | 7 | 223 | 568081 | 3062.54 | 765 | 744 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

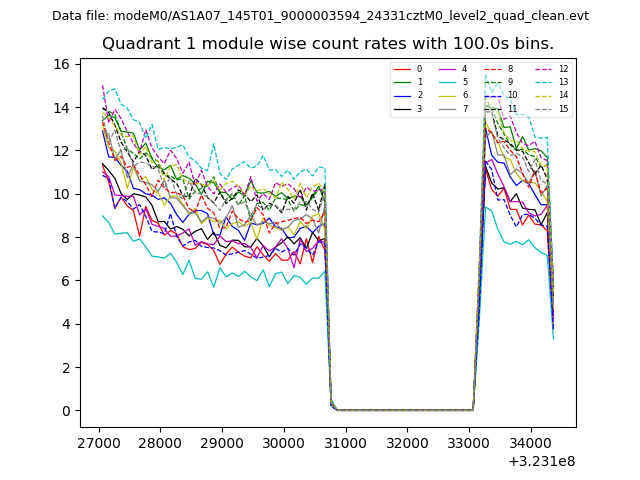

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

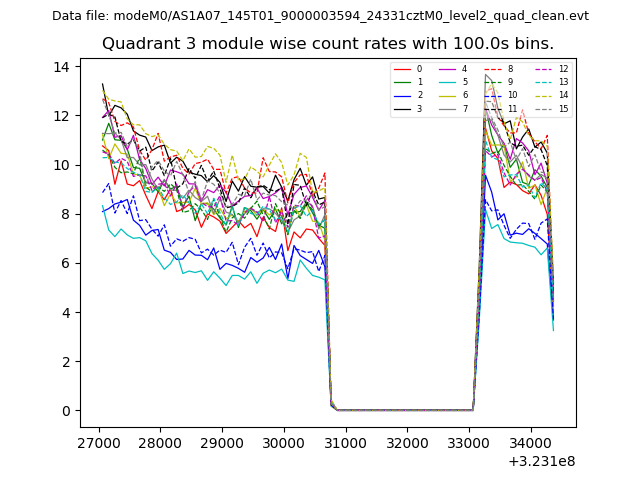

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

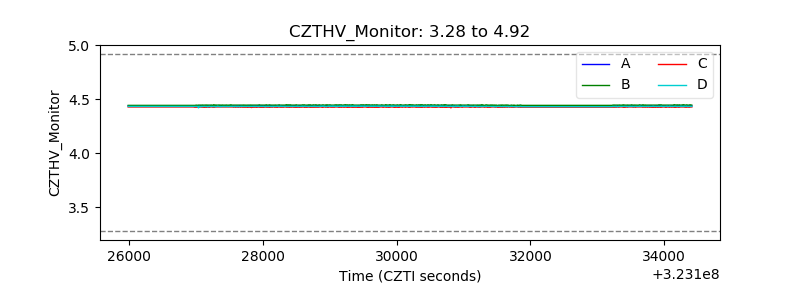

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

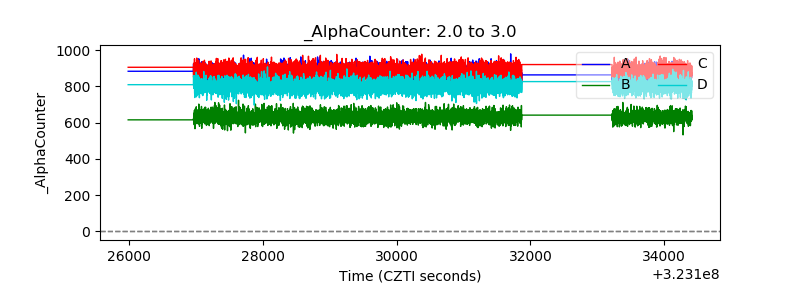

| Alpha Counter |  |
| _CPM_Rate |  |

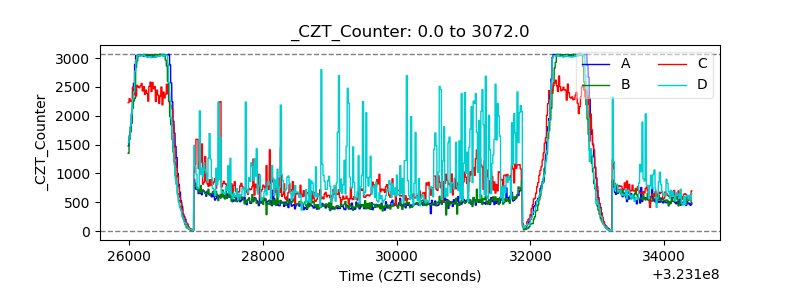

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

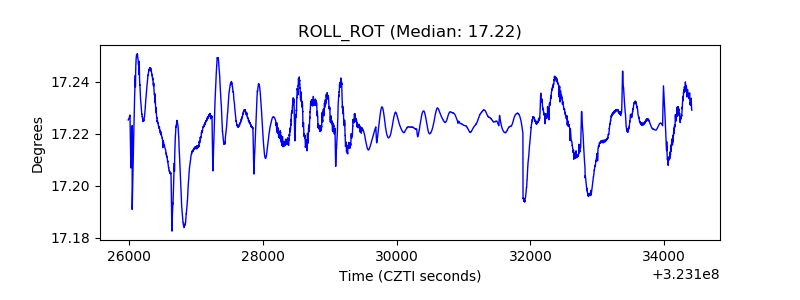

| _ROLL_ROT |  |

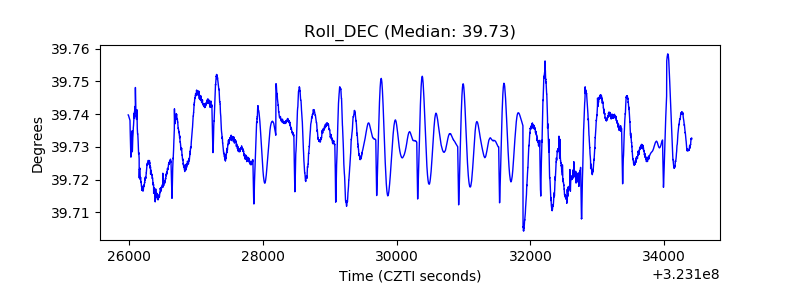

| _Roll_DEC |  |
| _Roll_RA |  |

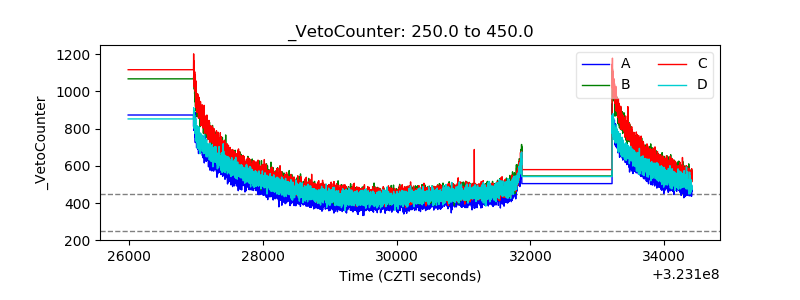

| Veto Counter |  |
