| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24336cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24336cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,012,480 | 95,731,200 |
| Size | 560.8 MB | 91.3 MB |
| Events in quadrant A | 3,256,941 | 606,117 |
| Events in quadrant B | 3,340,958 | 627,685 |
| Events in quadrant C | 5,822,975 | 588,175 |
| Events in quadrant D | 4,911,576 | 587,691 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14373 | 1 |
| B | 0 | 14473 | 1 |
| C | 0 | 22026 | 1 |
| D | 0 | 19475 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7024 | 163 | 2.320615% |
| B | 7025 | 160 | 2.277580% |
| C | 7025 | 283 | 4.028470% |
| D | 7025 | 188 | 2.676157% |

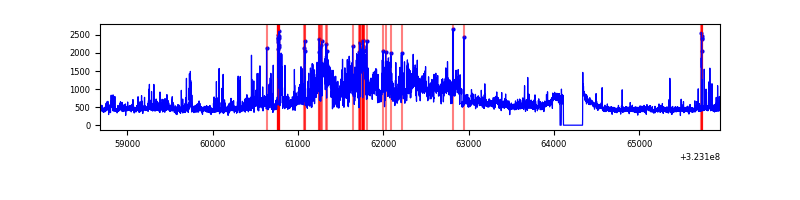

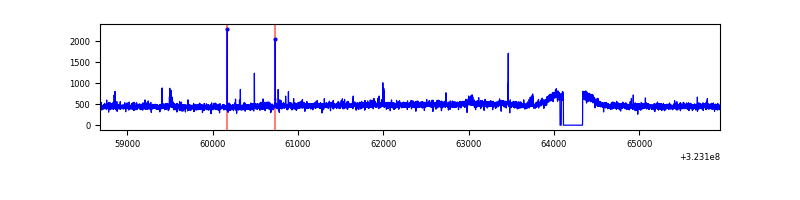

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7264 | 7024 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7264 | 7024 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7265 | 7025 | 29 | 29 | 0.40% | 0.41% |  |
| D | 7265 | 7025 | 49 | 49 | 0.67% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9793 | 52.56 | 844 | 825 | 170.6 |
| A | 3 | 137 | 7718 | 40.39 | 844 | 825 | 170.6 |
| A | 0 | 226 | 6991 | 36.13 | 844 | 825 | 170.6 |
| B | 12 | 111 | 20385 | 120.75 | 843 | 820 | 162.0 |
| B | 11 | 111 | 18211 | 107.33 | 843 | 820 | 162.0 |
| B | 14 | 111 | 16370 | 95.97 | 843 | 820 | 162.0 |
| C | 7 | 247 | 2434160 | 12907.9 | 804 | 808 | 188.5 |
| C | 14 | 238 | 128554 | 677.64 | 804 | 808 | 188.5 |
| C | 2 | 16 | 108668 | 572.15 | 804 | 808 | 188.5 |
| D | 7 | 238 | 1195685 | 5968.51 | 819 | 791 | 200.2 |
| D | 8 | 195 | 325928 | 1624.06 | 819 | 791 | 200.2 |
| D | 12 | 233 | 129804 | 644.42 | 819 | 791 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

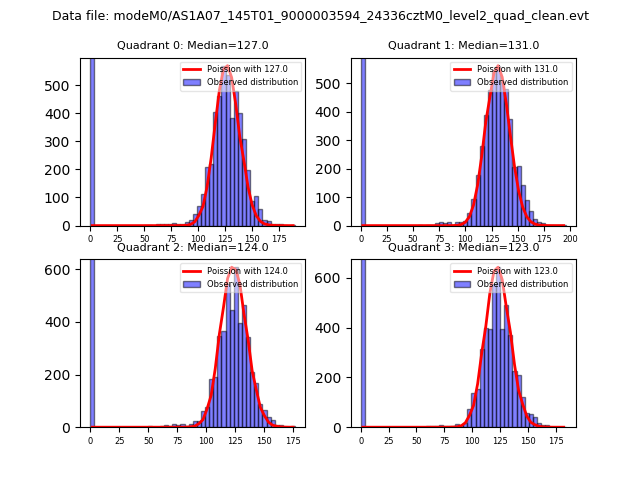

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

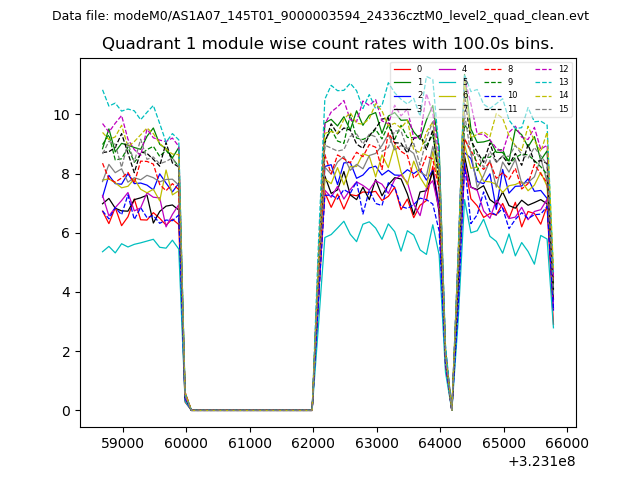

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

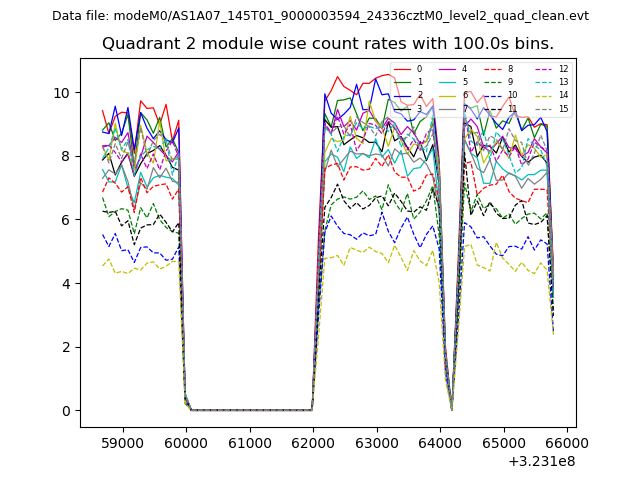

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

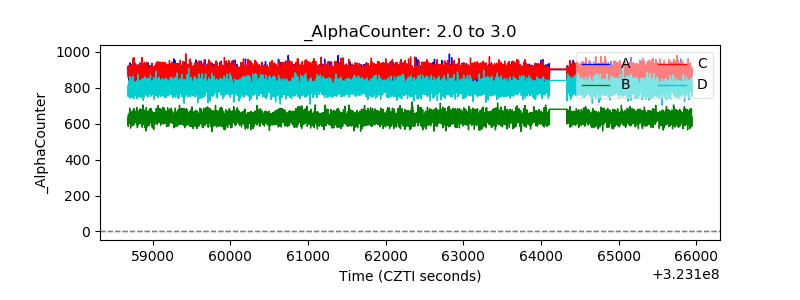

| Alpha Counter |  |

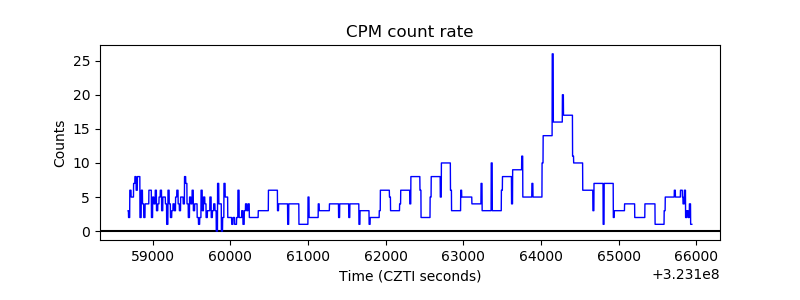

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

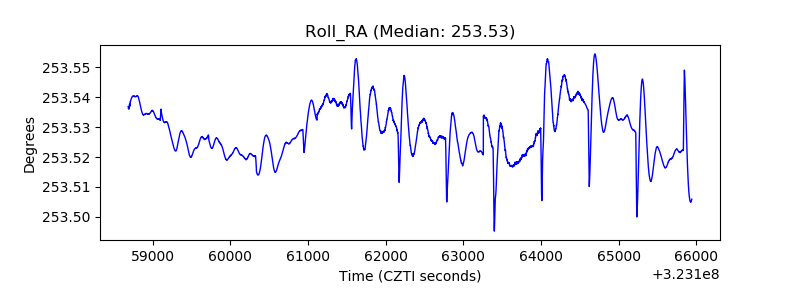

| _Roll_RA |  |
| Veto Counter |  |
