| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24342cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24342cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,748,480 | 89,406,720 |
| Size | 572.0 MB | 85.3 MB |
| Events in quadrant A | 3,375,091 | 567,646 |
| Events in quadrant B | 3,439,212 | 580,389 |
| Events in quadrant C | 4,606,622 | 557,320 |
| Events in quadrant D | 6,283,850 | 529,730 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14499 | 2 |
| B | 0 | 14671 | 2 |
| C | 0 | 18318 | 2 |
| D | 0 | 23409 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6782 | 92 | 1.356532% |
| B | 6783 | 102 | 1.503759% |
| C | 6783 | 247 | 3.641457% |
| D | 6782 | 542 | 7.991743% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8731 | 6783 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8733 | 6785 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8733 | 6785 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8732 | 6784 | 366 | 366 | 4.19% | 5.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10047 | 52.11 | 873 | 854 | 176.4 |
| A | 2 | 79 | 8065 | 40.88 | 873 | 854 | 176.4 |
| A | 3 | 137 | 7741 | 39.04 | 873 | 854 | 176.4 |
| B | 12 | 111 | 19921 | 114.48 | 874 | 852 | 166.6 |
| B | 11 | 111 | 17911 | 102.41 | 874 | 852 | 166.6 |
| B | 14 | 111 | 15832 | 89.93 | 874 | 852 | 166.6 |
| C | 7 | 247 | 1139967 | 5817.73 | 846 | 852 | 195.8 |
| C | 14 | 238 | 132445 | 672.08 | 846 | 852 | 195.8 |
| C | 2 | 16 | 33596 | 167.23 | 846 | 852 | 195.8 |
| D | 7 | 238 | 1220459 | 5939.89 | 839 | 814 | 205.3 |
| D | 8 | 195 | 932972 | 4539.78 | 839 | 814 | 205.3 |
| D | 1 | 52 | 746337 | 3630.83 | 839 | 814 | 205.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

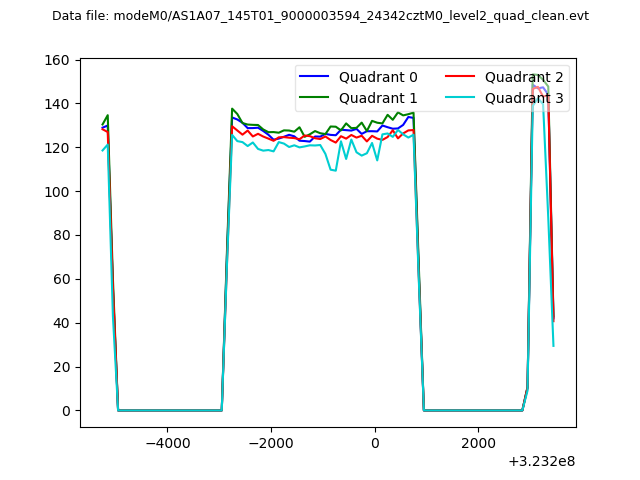

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

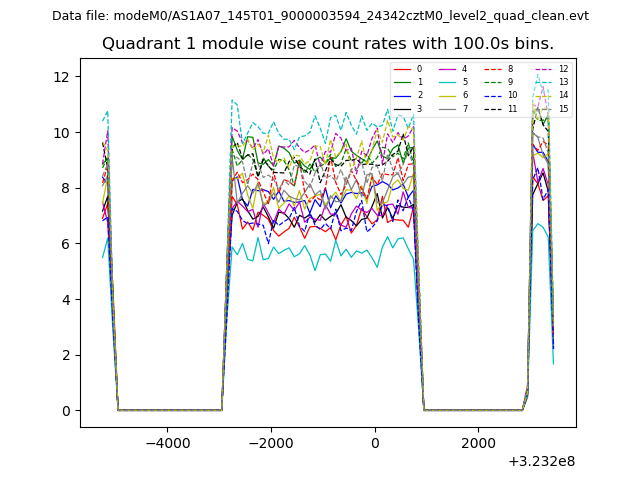

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

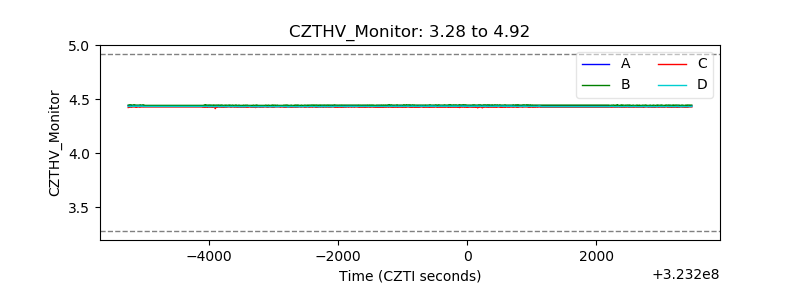

| CZT HV Monitor |  |
| D_VDD |  |

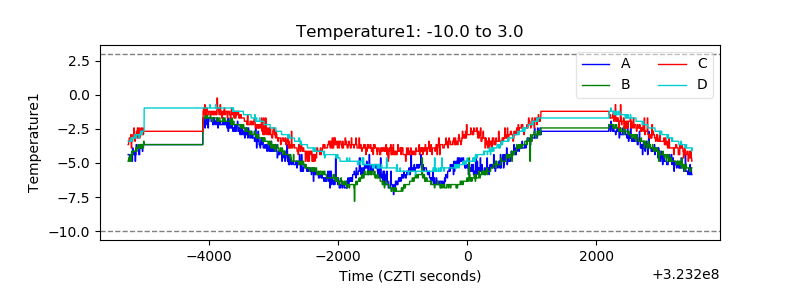

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

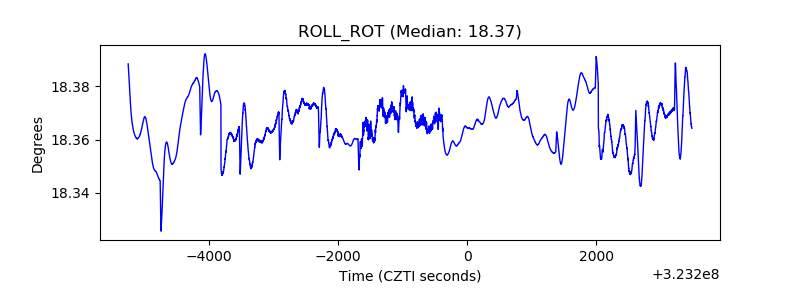

| _ROLL_ROT |  |
| _Roll_DEC |  |

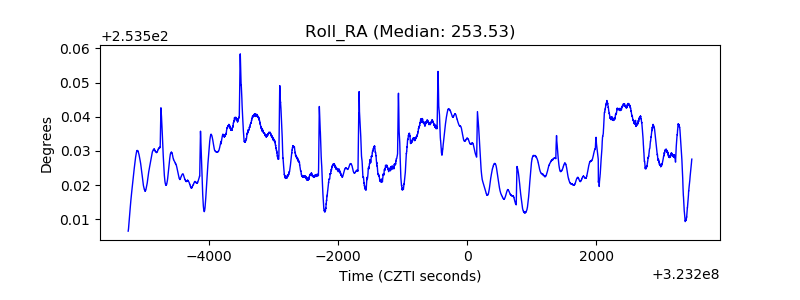

| _Roll_RA |  |

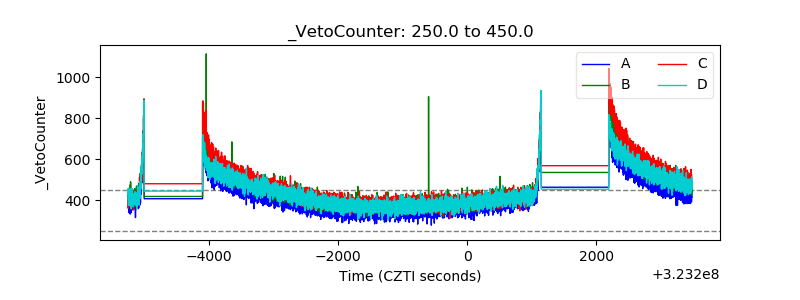

| Veto Counter |  |
