| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24348cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24348cztM0_level2_quad_clean.evt |
| Size (bytes) | 639,342,720 | 92,410,560 |
| Size | 609.7 MB | 88.1 MB |
| Events in quadrant A | 3,119,417 | 599,282 |
| Events in quadrant B | 3,226,747 | 622,557 |
| Events in quadrant C | 6,881,710 | 571,064 |
| Events in quadrant D | 5,704,106 | 560,678 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13347 | 2 |
| B | 0 | 13567 | 2 |
| C | 0 | 24988 | 4 |
| D | 0 | 21438 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6382 | 40 | 0.626763% |
| B | 6382 | 75 | 1.175180% |
| C | 6381 | 491 | 7.694719% |
| D | 6381 | 376 | 5.892493% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 6383 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7572 | 6383 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7571 | 6382 | 51 | 51 | 0.67% | 0.80% |  |
| D | 7571 | 6382 | 232 | 232 | 3.06% | 3.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9373 | 52.61 | 809 | 794 | 163.1 |
| A | 3 | 137 | 7088 | 38.6 | 809 | 794 | 163.1 |
| A | 0 | 226 | 6878 | 37.31 | 809 | 794 | 163.1 |
| B | 0 | 190 | 26130 | 164.53 | 815 | 796 | 154.0 |
| B | 12 | 111 | 18851 | 117.26 | 815 | 796 | 154.0 |
| B | 11 | 111 | 16634 | 102.86 | 815 | 796 | 154.0 |
| C | 7 | 247 | 3628324 | 20316.84 | 768 | 772 | 178.5 |
| C | 14 | 238 | 123249 | 685.96 | 768 | 772 | 178.5 |
| C | 2 | 16 | 123214 | 685.76 | 768 | 772 | 178.5 |
| D | 8 | 195 | 1588965 | 8489.93 | 765 | 743 | 187.1 |
| D | 1 | 52 | 647590 | 3457.76 | 765 | 743 | 187.1 |
| D | 12 | 218 | 299690 | 1598.04 | 765 | 743 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

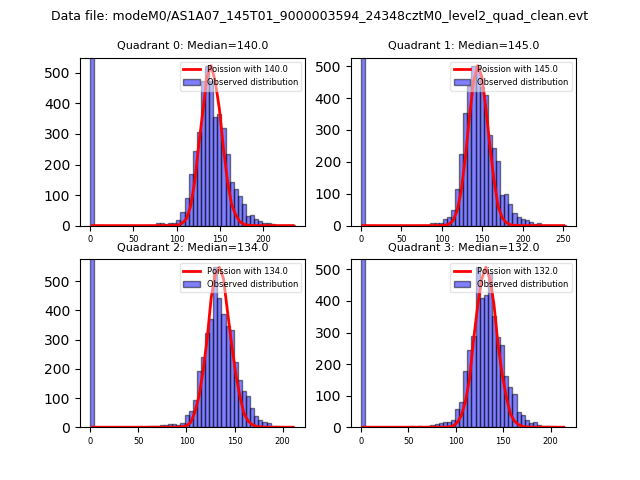

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

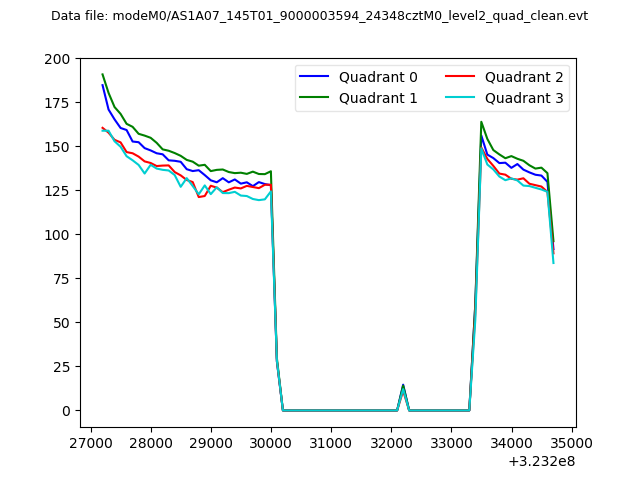

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

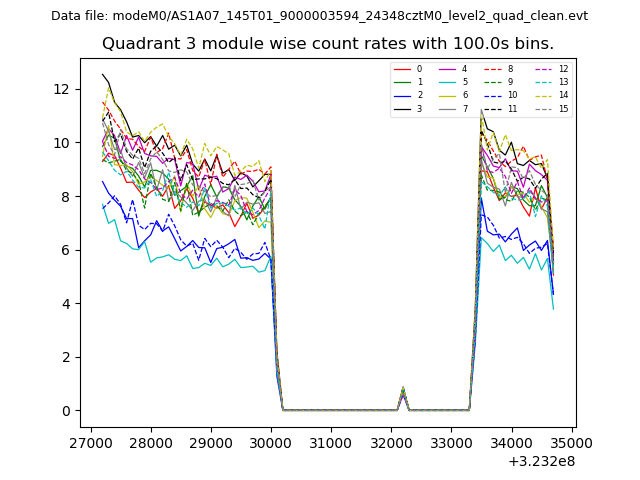

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

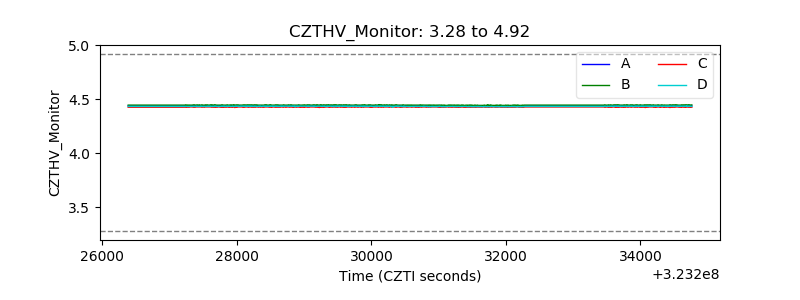

| CZT HV Monitor |  |

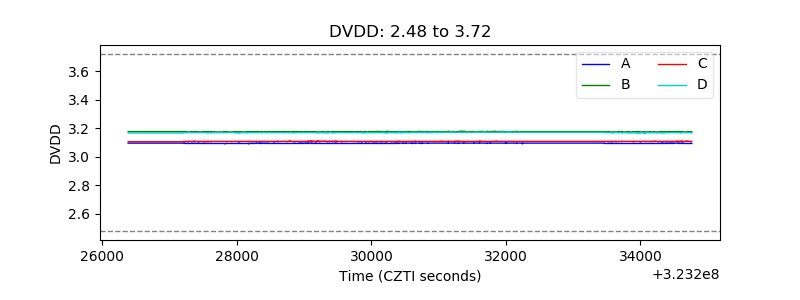

| D_VDD |  |

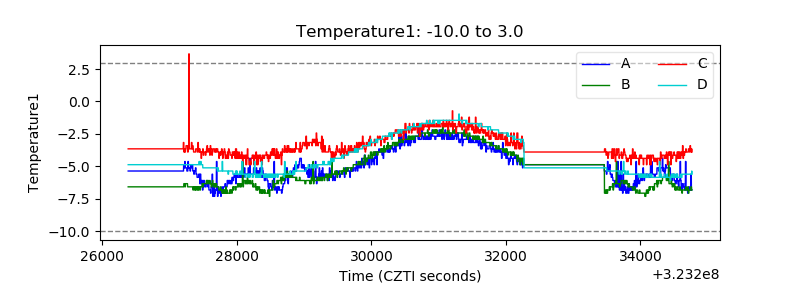

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

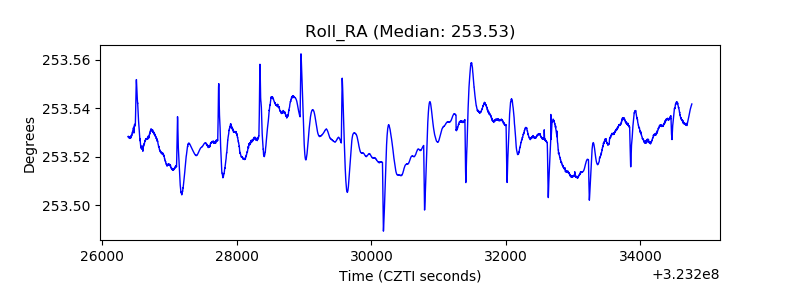

| _Roll_RA |  |

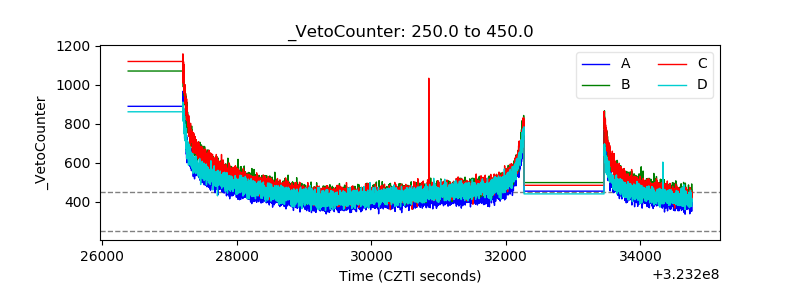

| Veto Counter |  |
