| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000003594_24361cztM0_level2.evt | modeM0/AS1A07_145T01_9000003594_24361cztM0_level2_quad_clean.evt |
| Size (bytes) | 593,231,040 | 110,160,000 |
| Size | 565.7 MB | 105.1 MB |
| Events in quadrant A | 3,208,847 | 730,337 |
| Events in quadrant B | 3,343,702 | 771,248 |
| Events in quadrant C | 3,454,714 | 736,253 |
| Events in quadrant D | 7,533,273 | 659,991 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13478 | 1 |
| B | 0 | 13888 | 1 |
| C | 0 | 14318 | 1 |
| D | 0 | 26626 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6282 | 51 | 0.811843% |
| B | 6283 | 83 | 1.321025% |
| C | 6283 | 146 | 2.323731% |
| D | 6283 | 1682 | 26.770651% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

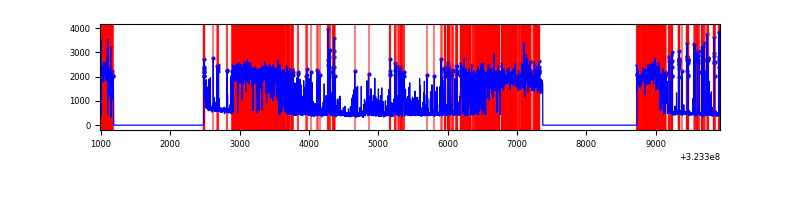

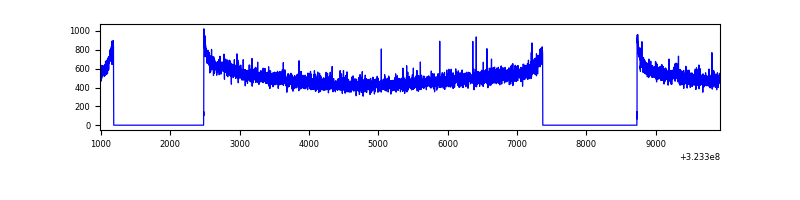

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8942 | 6284 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8943 | 6285 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8943 | 6285 | 2 | 2 | 0.02% | 0.03% |  |
| D | 8943 | 6285 | 1407 | 1407 | 15.73% | 22.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9352 | 51.86 | 831 | 814 | 164.6 |
| A | 3 | 137 | 7064 | 37.97 | 831 | 814 | 164.6 |
| A | 0 | 226 | 7017 | 37.68 | 831 | 814 | 164.6 |
| B | 0 | 190 | 31998 | 198.29 | 844 | 824 | 157.2 |
| B | 12 | 111 | 18493 | 112.39 | 844 | 824 | 157.2 |
| B | 11 | 111 | 16595 | 100.32 | 844 | 824 | 157.2 |
| C | 14 | 238 | 132453 | 694.81 | 818 | 827 | 189.4 |
| C | 7 | 247 | 78868 | 411.95 | 818 | 827 | 189.4 |
| C | 3 | 233 | 49707 | 258.02 | 818 | 827 | 189.4 |
| D | 9 | 35 | 4121803 | 22671.34 | 750 | 729 | 181.8 |
| D | 7 | 238 | 239780 | 1315.1 | 750 | 729 | 181.8 |
| D | 12 | 218 | 193572 | 1060.89 | 750 | 729 | 181.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

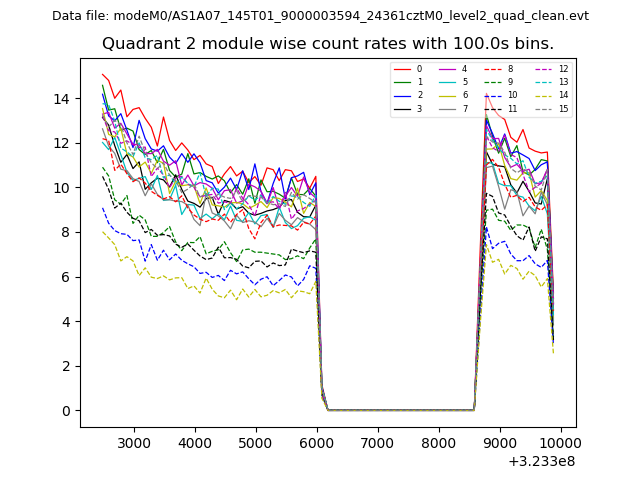

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

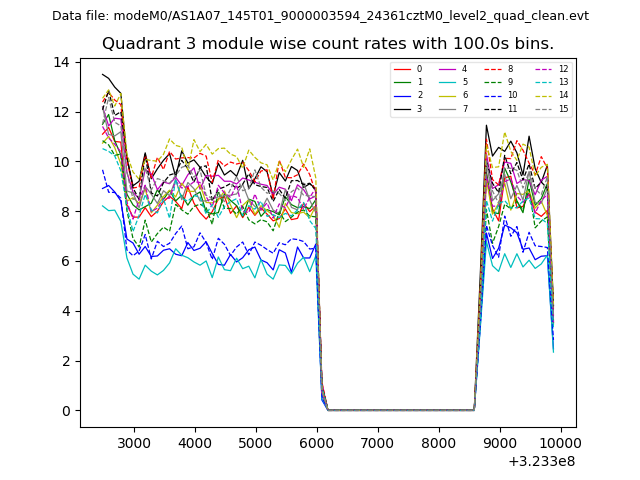

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

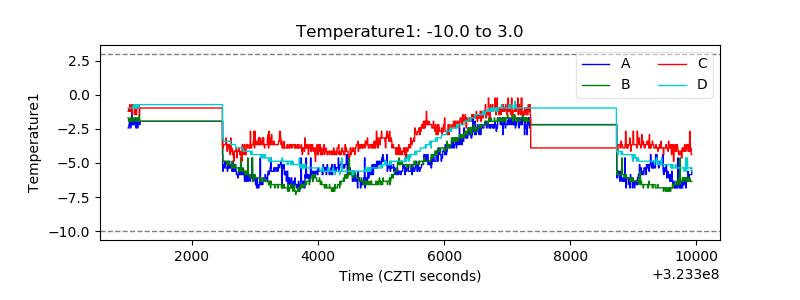

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

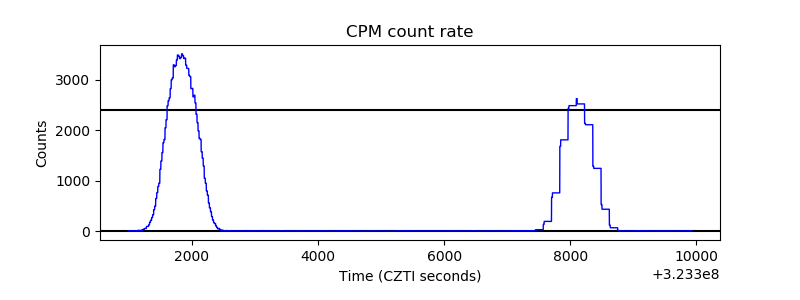

| _CPM_Rate |  |

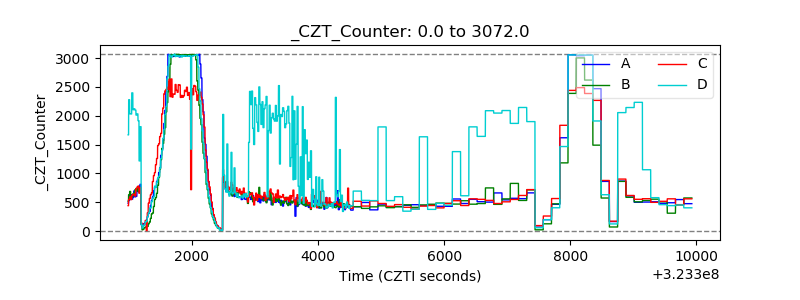

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

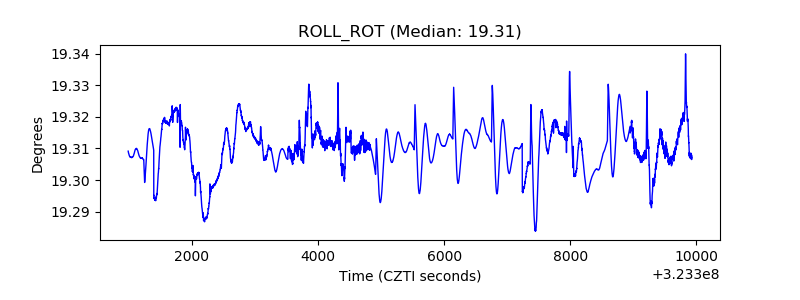

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
