| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_008T01_9000003596_24374cztM0_level2.evt | modeM0/AS1A08_008T01_9000003596_24374cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,659,520 | 112,772,160 |
| Size | 438.4 MB | 107.5 MB |
| Events in quadrant A | 3,121,724 | 757,498 |
| Events in quadrant B | 3,276,513 | 781,058 |
| Events in quadrant C | 3,784,816 | 729,133 |
| Events in quadrant D | 3,310,209 | 708,551 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13267 | 2 |
| B | 0 | 13572 | 2 |
| C | 0 | 15507 | 2 |
| D | 0 | 13825 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6296 | 20 | 0.317662% |
| B | 6296 | 42 | 0.667090% |
| C | 6296 | 72 | 1.143583% |
| D | 6295 | 39 | 0.619539% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 6297 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7581 | 6297 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7581 | 6297 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7580 | 6296 | 26 | 26 | 0.34% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10107 | 58.59 | 809 | 795 | 158.9 |
| A | 3 | 137 | 7024 | 39.2 | 809 | 795 | 158.9 |
| A | 0 | 226 | 6876 | 38.26 | 809 | 795 | 158.9 |
| B | 4 | 200 | 94178 | 624.69 | 812 | 794 | 149.5 |
| B | 12 | 111 | 17505 | 111.79 | 812 | 794 | 149.5 |
| B | 11 | 111 | 15790 | 100.32 | 812 | 794 | 149.5 |
| C | 7 | 247 | 644820 | 3641.96 | 770 | 776 | 176.8 |
| C | 14 | 238 | 126525 | 711.09 | 770 | 776 | 176.8 |
| C | 2 | 16 | 8999 | 46.5 | 770 | 776 | 176.8 |
| D | 8 | 195 | 133998 | 714.56 | 773 | 752 | 186.5 |
| D | 1 | 52 | 104056 | 553.99 | 773 | 752 | 186.5 |
| D | 12 | 218 | 72006 | 382.11 | 773 | 752 | 186.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

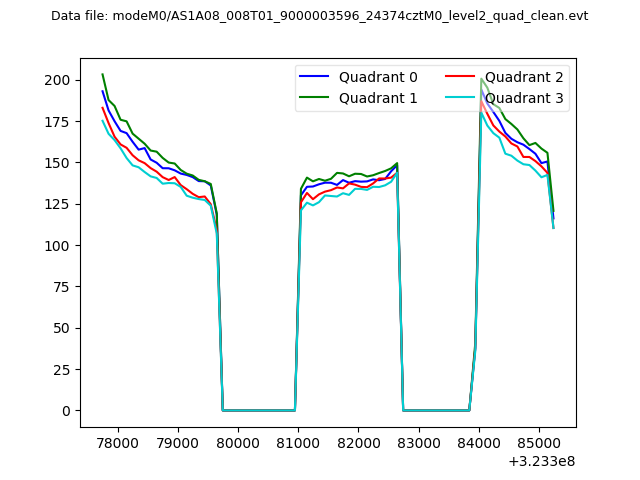

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

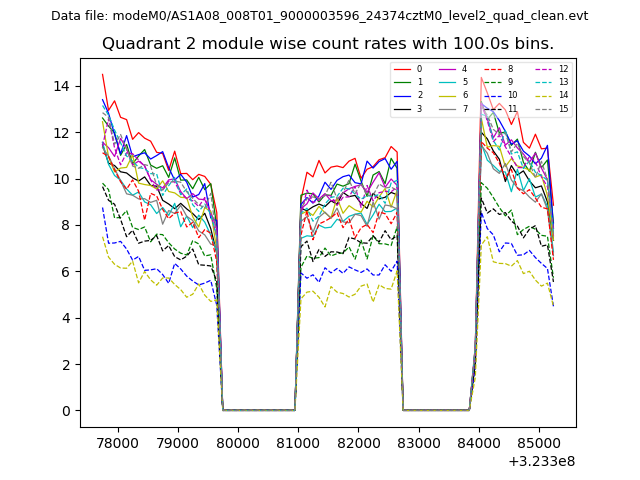

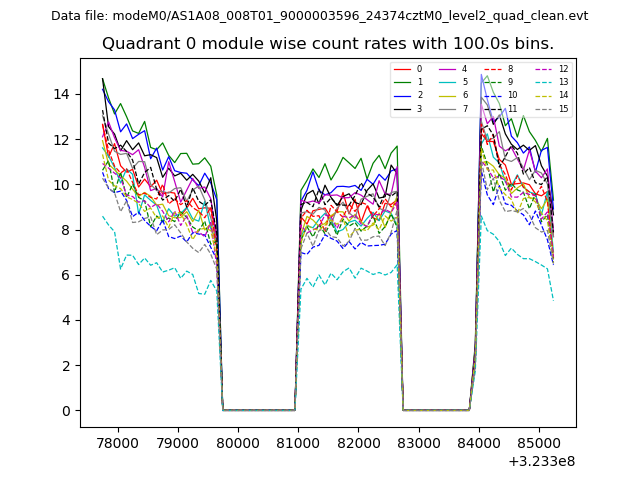

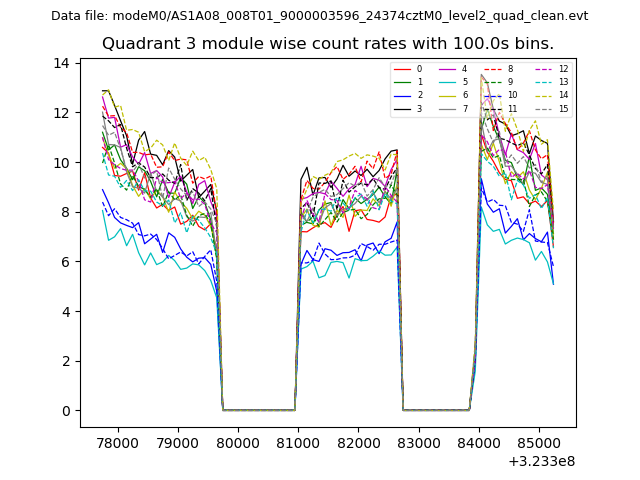

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

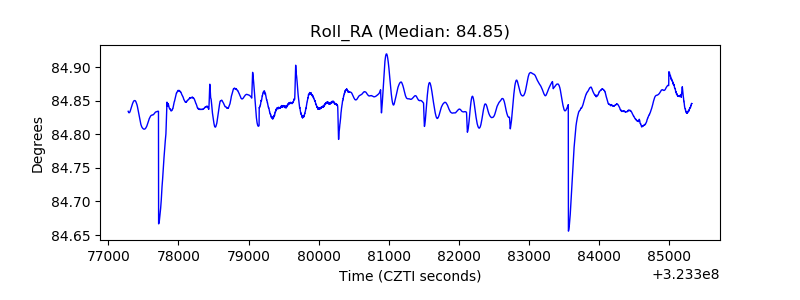

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
