| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_008T01_9000003596_24376cztM0_level2.evt | modeM0/AS1A08_008T01_9000003596_24376cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,086,080 | 100,229,760 |
| Size | 425.4 MB | 95.6 MB |
| Events in quadrant A | 3,116,175 | 654,912 |
| Events in quadrant B | 3,178,392 | 676,364 |
| Events in quadrant C | 3,465,445 | 644,435 |
| Events in quadrant D | 3,325,375 | 623,852 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12980 | 2 |
| B | 0 | 13111 | 2 |
| C | 0 | 14019 | 2 |
| D | 0 | 13904 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6248 | 25 | 0.400128% |
| B | 6248 | 37 | 0.592190% |
| C | 6248 | 68 | 1.088348% |
| D | 6247 | 39 | 0.624300% |

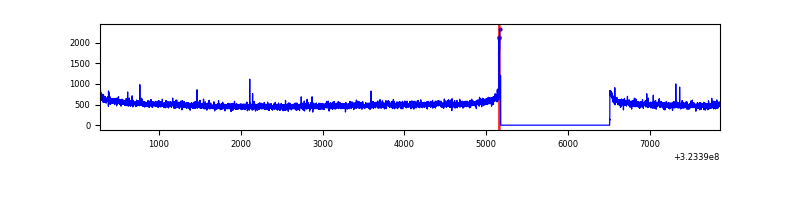

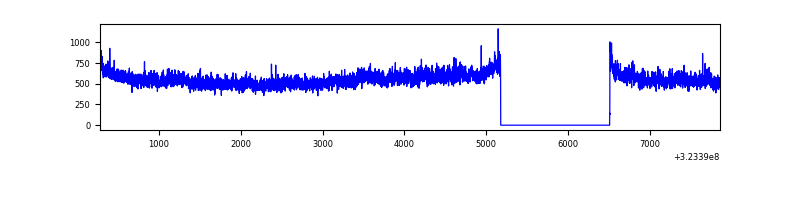

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7583 | 6249 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7583 | 6249 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7583 | 6249 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7582 | 6248 | 23 | 23 | 0.30% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 170 | 16431 | 98.43 | 804 | 789 | 158.9 |
| A | 13 | 254 | 10503 | 61.13 | 804 | 789 | 158.9 |
| A | 0 | 226 | 6874 | 38.29 | 804 | 789 | 158.9 |
| B | 0 | 190 | 19518 | 126.03 | 807 | 790 | 148.6 |
| B | 12 | 111 | 17172 | 110.24 | 807 | 790 | 148.6 |
| B | 11 | 111 | 15619 | 99.79 | 807 | 790 | 148.6 |
| C | 7 | 247 | 302202 | 1700.91 | 776 | 784 | 177.2 |
| C | 14 | 238 | 127655 | 715.93 | 776 | 784 | 177.2 |
| C | 2 | 16 | 6553 | 32.55 | 776 | 784 | 177.2 |
| D | 8 | 195 | 117236 | 623.13 | 778 | 757 | 186.9 |
| D | 12 | 233 | 68090 | 360.21 | 778 | 757 | 186.9 |
| D | 9 | 35 | 60239 | 318.21 | 778 | 757 | 186.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

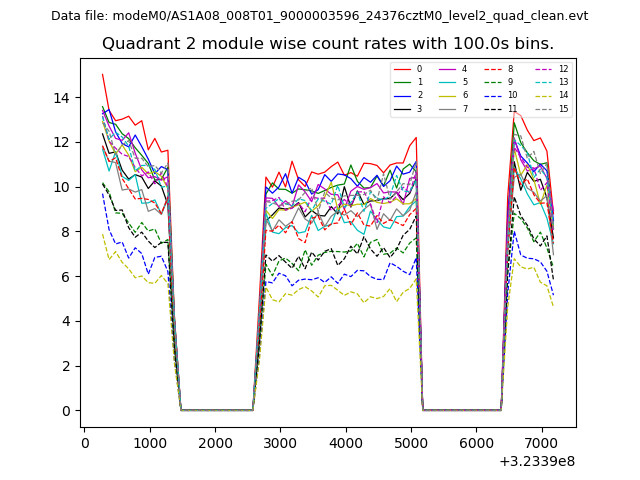

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

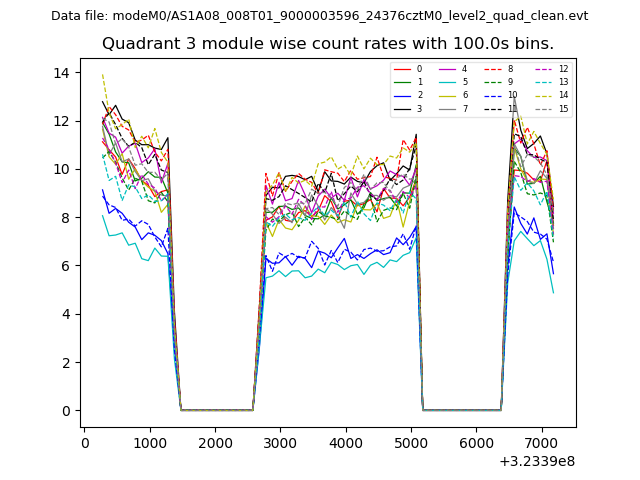

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

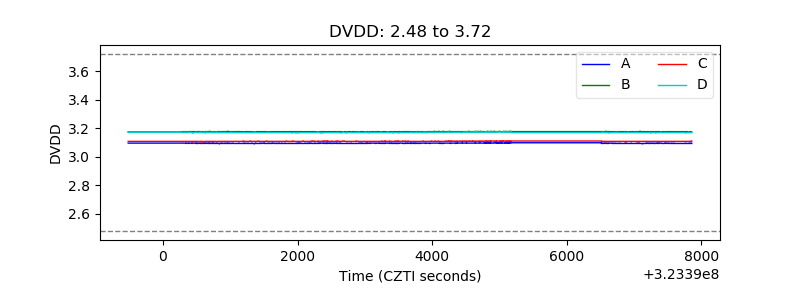

| D_VDD |  |

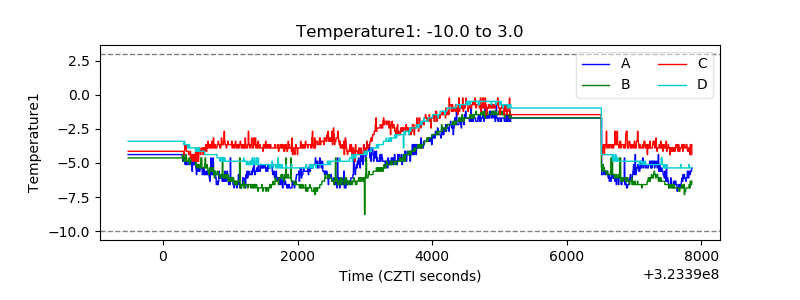

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

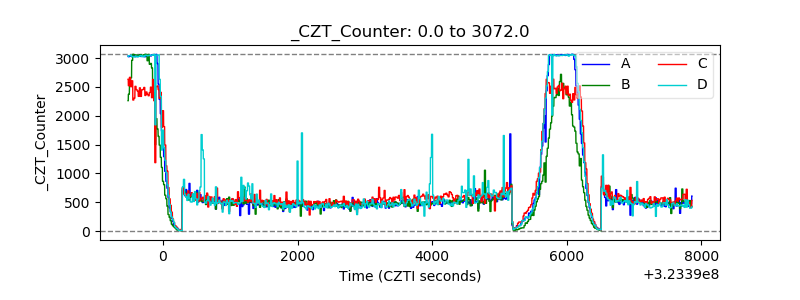

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

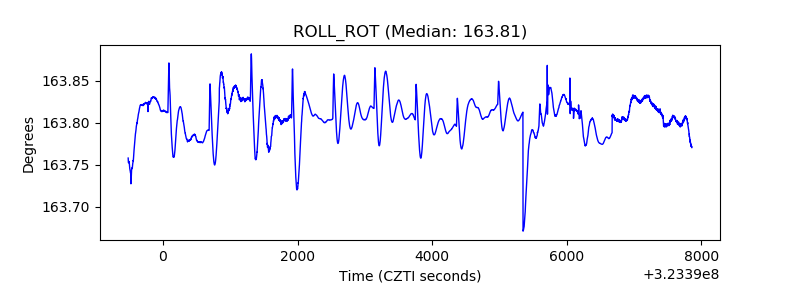

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
