| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_008T01_9000003596_24385cztM0_level2.evt | modeM0/AS1A08_008T01_9000003596_24385cztM0_level2_quad_clean.evt |
| Size (bytes) | 725,503,680 | 89,035,200 |
| Size | 691.9 MB | 84.9 MB |
| Events in quadrant A | 2,946,609 | 631,107 |
| Events in quadrant B | 2,901,634 | 640,940 |
| Events in quadrant C | 12,047,474 | 406,674 |
| Events in quadrant D | 3,663,221 | 590,269 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12821 | 1 |
| B | 0 | 12575 | 1 |
| C | 0 | 40015 | 7 |
| D | 0 | 15027 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6101 | 83 | 1.360433% |
| B | 6101 | 37 | 0.606458% |
| C | 6100 | 3796 | 62.229508% |
| D | 6100 | 137 | 2.245902% |

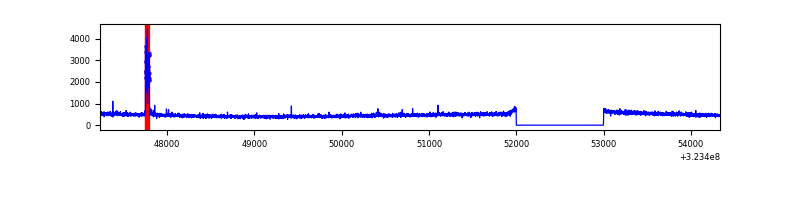

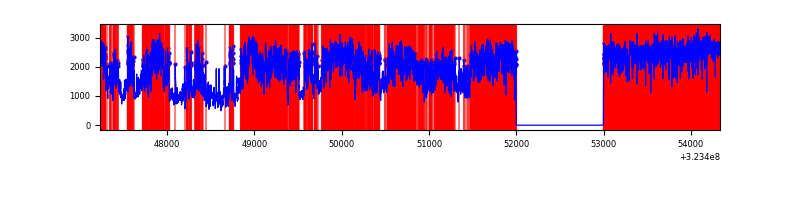

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7101 | 6102 | 34 | 34 | 0.48% | 0.56% |  |
| B | 7101 | 6102 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7100 | 6101 | 3281 | 3281 | 46.21% | 53.78% |  |
| D | 7100 | 6101 | 100 | 100 | 1.41% | 1.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 10 | 111894 | 749.12 | 734 | 718 | 148.4 |
| A | 13 | 254 | 9639 | 60.11 | 734 | 718 | 148.4 |
| A | 3 | 137 | 6568 | 39.42 | 734 | 718 | 148.4 |
| B | 12 | 111 | 16813 | 115.75 | 730 | 711 | 139.1 |
| B | 11 | 111 | 14639 | 100.12 | 730 | 711 | 139.1 |
| B | 0 | 230 | 13951 | 95.18 | 730 | 711 | 139.1 |
| C | 7 | 247 | 9897582 | 81847.82 | 521 | 523 | 120.9 |
| C | 14 | 238 | 79170 | 650.4 | 521 | 523 | 120.9 |
| C | 7 | 226 | 26008 | 210.76 | 521 | 523 | 120.9 |
| D | 1 | 52 | 491969 | 2892.46 | 698 | 678 | 169.9 |
| D | 12 | 233 | 337408 | 1982.49 | 698 | 678 | 169.9 |
| D | 7 | 238 | 63904 | 372.24 | 698 | 678 | 169.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

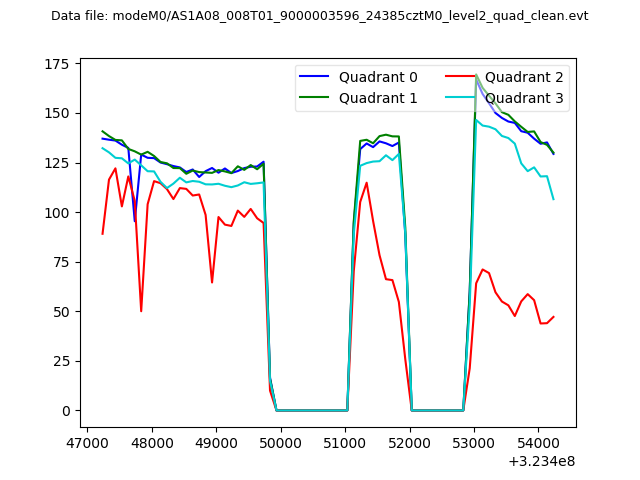

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

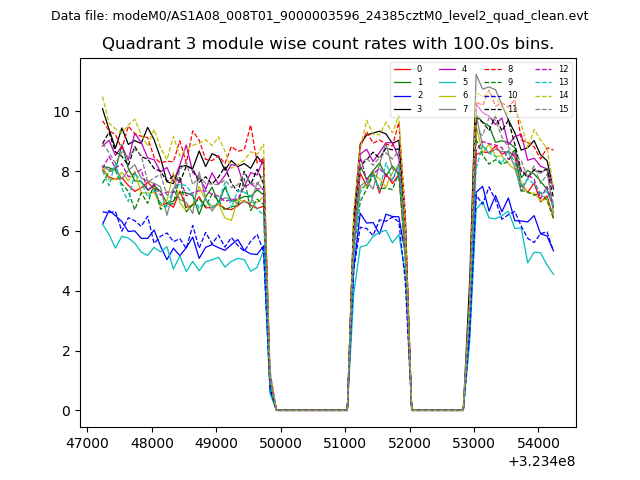

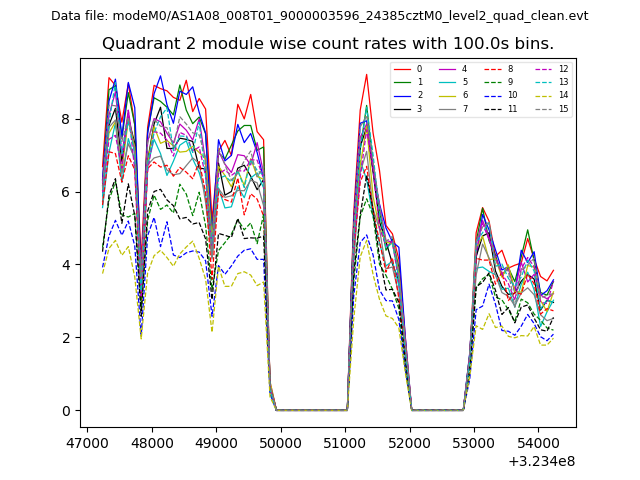

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

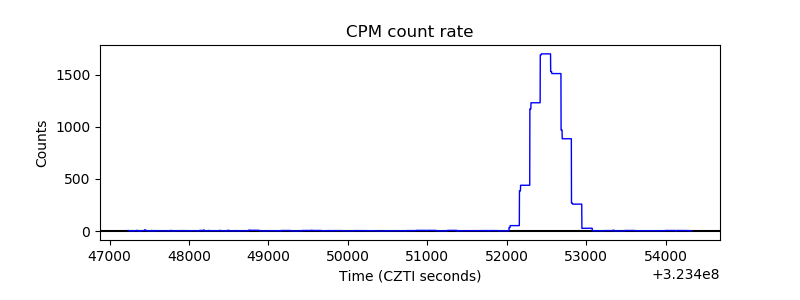

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

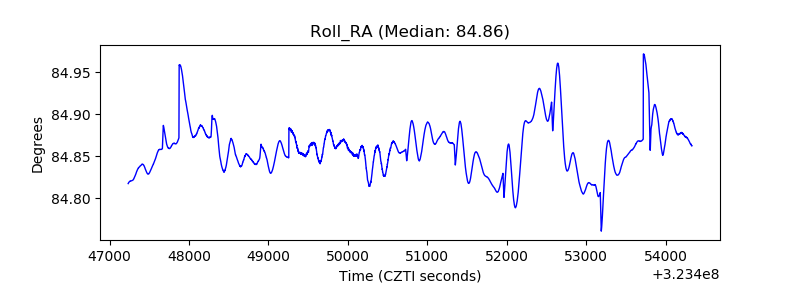

| _Roll_RA |  |

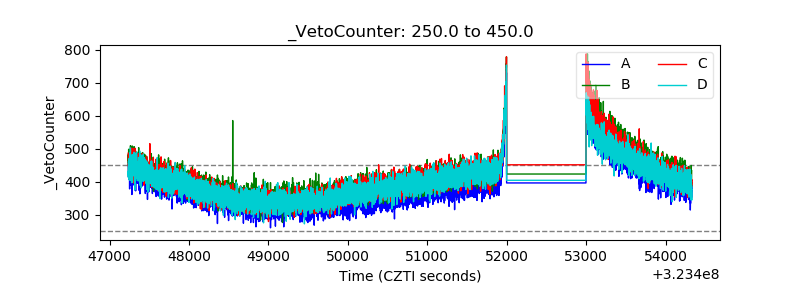

| Veto Counter |  |
