| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A08_008T01_9000003596_24395cztM0_level2.evt | modeM0/AS1A08_008T01_9000003596_24395cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,722,560 | 110,632,320 |
| Size | 477.5 MB | 105.5 MB |
| Events in quadrant A | 3,388,605 | 719,082 |
| Events in quadrant B | 3,484,171 | 736,336 |
| Events in quadrant C | 3,838,372 | 693,500 |
| Events in quadrant D | 3,949,158 | 685,219 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15054 | 2 |
| B | 0 | 15198 | 2 |
| C | 0 | 15976 | 2 |
| D | 0 | 16623 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7415 | 100 | 1.348618% |
| B | 7415 | 120 | 1.618341% |
| C | 7415 | 264 | 3.560351% |
| D | 7415 | 101 | 1.362104% |

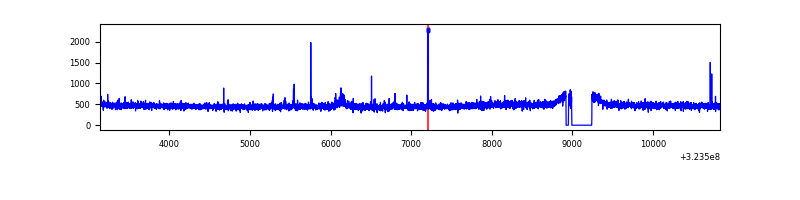

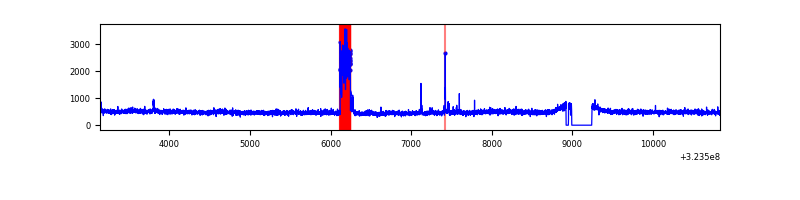

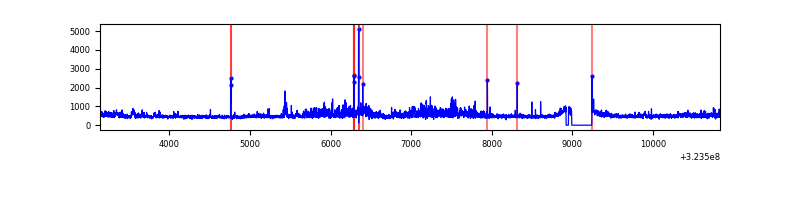

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7695 | 7417 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7695 | 7417 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7695 | 7417 | 107 | 107 | 1.39% | 1.44% |  |
| D | 7695 | 7417 | 11 | 11 | 0.14% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11803 | 61.68 | 878 | 858 | 177.4 |
| A | 3 | 137 | 8086 | 40.73 | 878 | 858 | 177.4 |
| A | 0 | 226 | 7504 | 37.45 | 878 | 858 | 177.4 |
| B | 15 | 33 | 22154 | 124.82 | 879 | 854 | 170.6 |
| B | 12 | 111 | 20834 | 117.09 | 879 | 854 | 170.6 |
| B | 11 | 111 | 18345 | 102.5 | 879 | 854 | 170.6 |
| C | 7 | 247 | 379744 | 1927.54 | 843 | 845 | 196.6 |
| C | 14 | 238 | 134557 | 680.22 | 843 | 845 | 196.6 |
| C | 3 | 233 | 24303 | 119.34 | 843 | 845 | 196.6 |
| D | 1 | 52 | 472883 | 2265.59 | 858 | 832 | 208.4 |
| D | 8 | 195 | 156091 | 745.16 | 858 | 832 | 208.4 |
| D | 2 | 234 | 30752 | 143.6 | 858 | 832 | 208.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

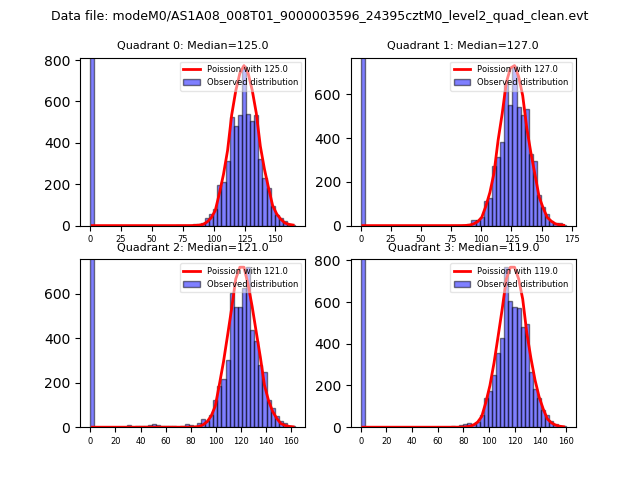

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

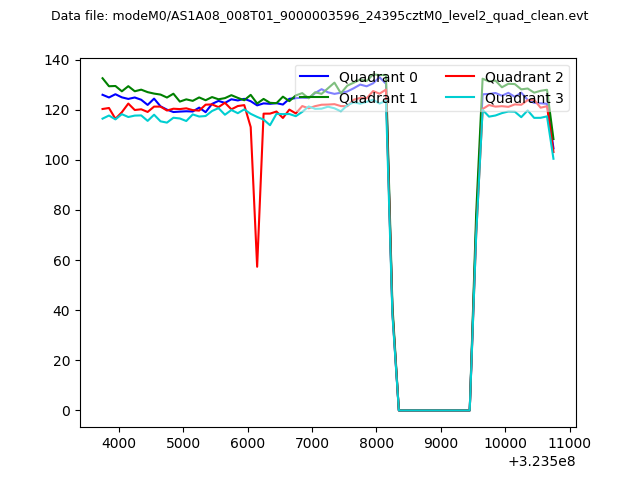

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

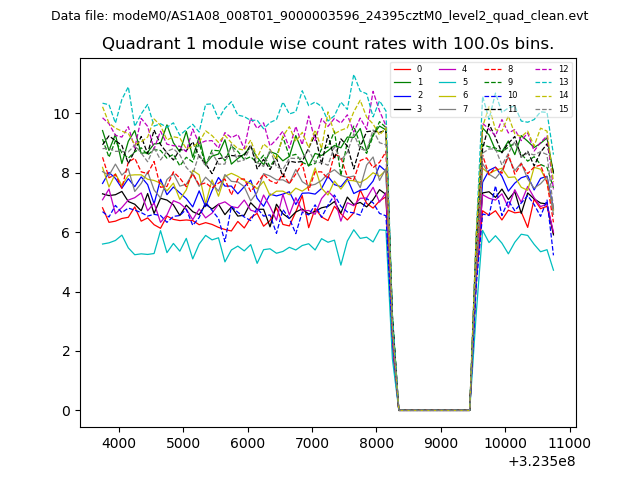

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

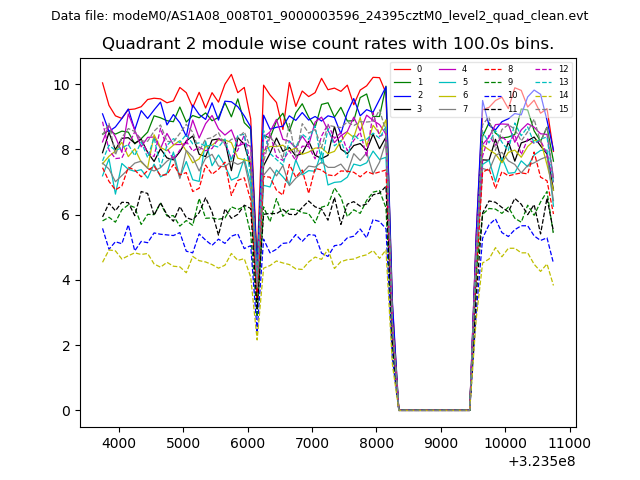

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

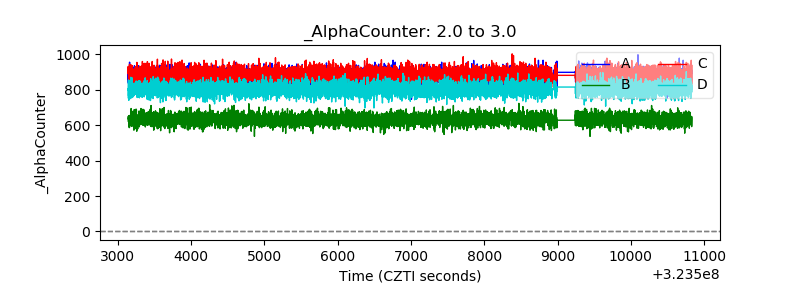

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
