| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_001T01_9000003598_24402cztM0_level2.evt | modeM0/AS1A07_001T01_9000003598_24402cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,540,160 | 109,823,040 |
| Size | 414.4 MB | 104.7 MB |
| Events in quadrant A | 3,072,386 | 742,201 |
| Events in quadrant B | 3,329,149 | 752,770 |
| Events in quadrant C | 3,260,764 | 698,843 |
| Events in quadrant D | 3,069,183 | 692,338 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13269 | 3 |
| B | 0 | 13985 | 2 |
| C | 0 | 13852 | 2 |
| D | 0 | 13405 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6298 | 19 | 0.301683% |
| B | 6298 | 82 | 1.302001% |
| C | 6298 | 53 | 0.841537% |
| D | 6298 | 16 | 0.254049% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7508 | 6298 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7508 | 6299 | 22 | 22 | 0.29% | 0.35% |  |
| C | 7508 | 6298 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7508 | 6298 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10893 | 63.4 | 796 | 781 | 159.5 |
| A | 0 | 226 | 7039 | 39.23 | 796 | 781 | 159.5 |
| A | 3 | 137 | 6938 | 38.6 | 796 | 781 | 159.5 |
| B | 15 | 33 | 203480 | 1371.34 | 789 | 772 | 147.8 |
| B | 12 | 111 | 17486 | 113.07 | 789 | 772 | 147.8 |
| B | 11 | 111 | 15136 | 97.17 | 789 | 772 | 147.8 |
| C | 7 | 247 | 228268 | 1322.56 | 743 | 746 | 172.0 |
| C | 14 | 238 | 122154 | 705.73 | 743 | 746 | 172.0 |
| C | 2 | 16 | 11727 | 63.83 | 743 | 746 | 172.0 |
| D | 1 | 52 | 100594 | 553.09 | 754 | 732 | 180.6 |
| D | 8 | 195 | 45172 | 246.13 | 754 | 732 | 180.6 |
| D | 2 | 120 | 36489 | 198.04 | 754 | 732 | 180.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

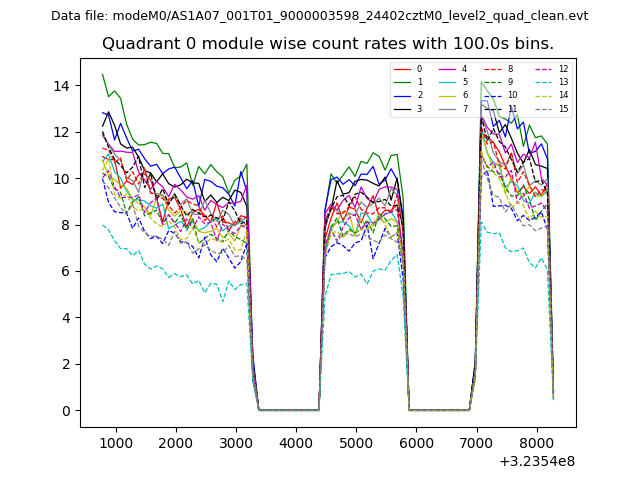

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

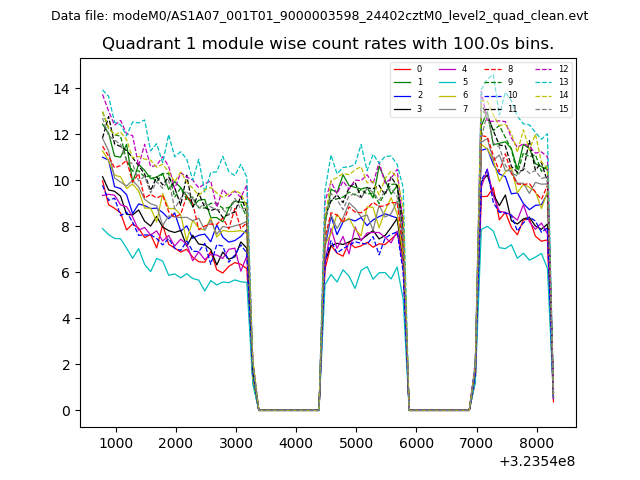

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

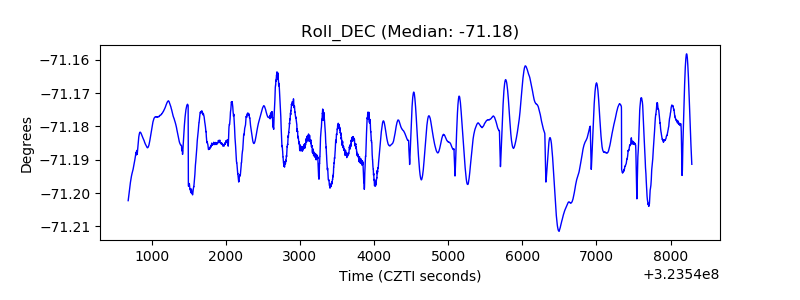

| _Roll_DEC |  |
| _Roll_RA |  |

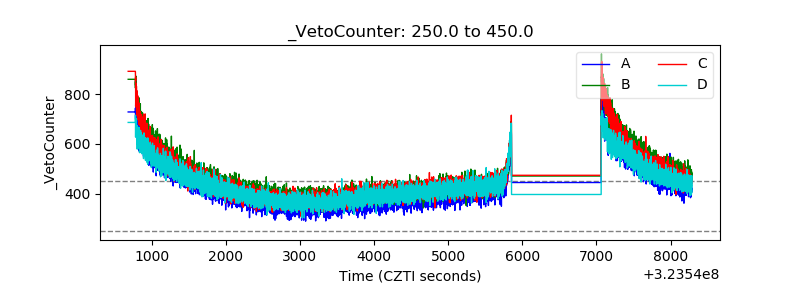

| Veto Counter |  |
