| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_001T02_9000003600_24408cztM0_level2.evt | modeM0/AS1A07_001T02_9000003600_24408cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,198,400 | 102,859,200 |
| Size | 442.7 MB | 98.1 MB |
| Events in quadrant A | 3,213,023 | 668,213 |
| Events in quadrant B | 3,354,626 | 679,908 |
| Events in quadrant C | 3,293,559 | 647,461 |
| Events in quadrant D | 3,721,535 | 632,405 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14266 | 1 |
| B | 0 | 14554 | 1 |
| C | 0 | 14273 | 1 |
| D | 0 | 15783 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6994 | 89 | 1.272519% |
| B | 6994 | 120 | 1.715756% |
| C | 6994 | 150 | 2.144695% |
| D | 6994 | 113 | 1.615671% |

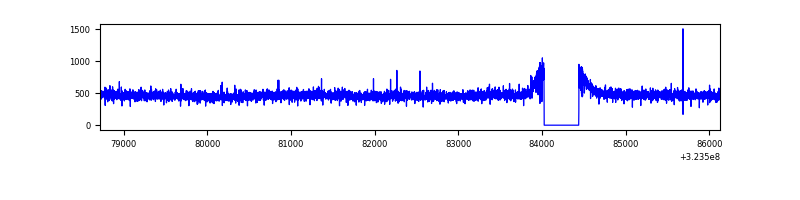

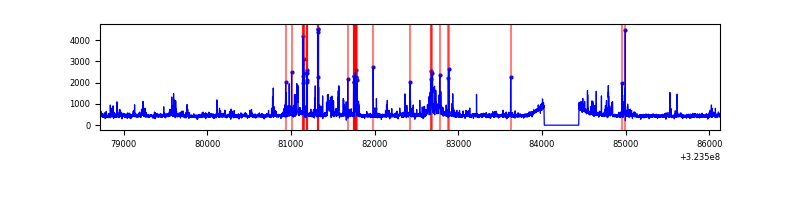

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7409 | 6995 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7409 | 6995 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7409 | 6995 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7409 | 6995 | 42 | 42 | 0.57% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12164 | 68.28 | 833 | 815 | 166.2 |
| A | 3 | 137 | 7340 | 39.26 | 833 | 815 | 166.2 |
| A | 0 | 226 | 7062 | 37.58 | 833 | 815 | 166.2 |
| B | 0 | 190 | 86848 | 546.32 | 832 | 809 | 157.5 |
| B | 12 | 111 | 19280 | 117.28 | 832 | 809 | 157.5 |
| B | 11 | 111 | 17022 | 102.95 | 832 | 809 | 157.5 |
| C | 14 | 238 | 127599 | 683.27 | 801 | 803 | 185.6 |
| C | 7 | 247 | 25717 | 134.25 | 801 | 803 | 185.6 |
| C | 3 | 233 | 5831 | 27.09 | 801 | 803 | 185.6 |
| D | 1 | 52 | 427632 | 2165.39 | 810 | 785 | 197.1 |
| D | 12 | 218 | 98927 | 497.87 | 810 | 785 | 197.1 |
| D | 8 | 195 | 93184 | 468.74 | 810 | 785 | 197.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

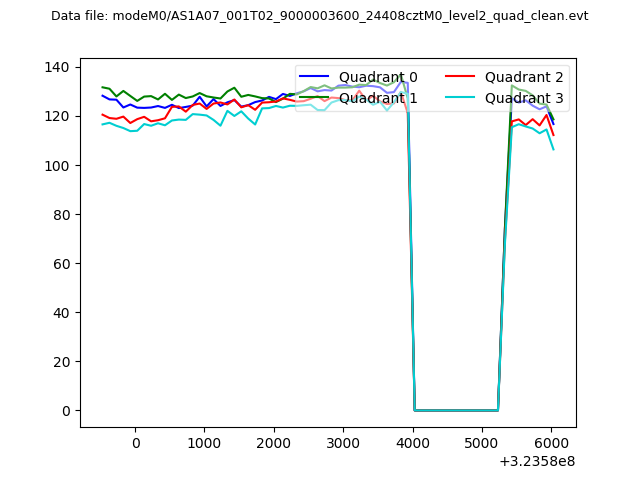

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

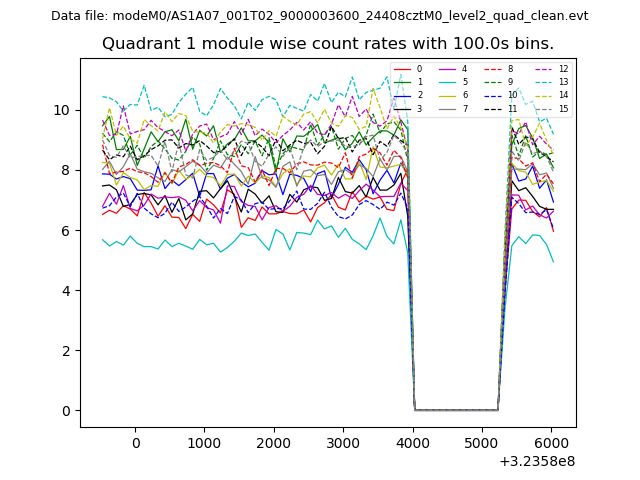

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

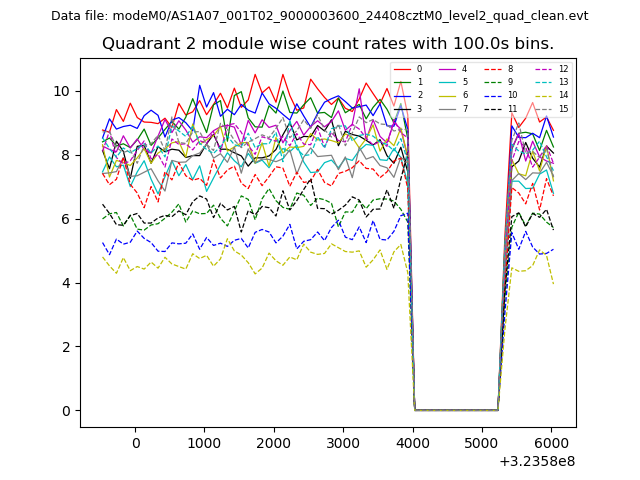

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

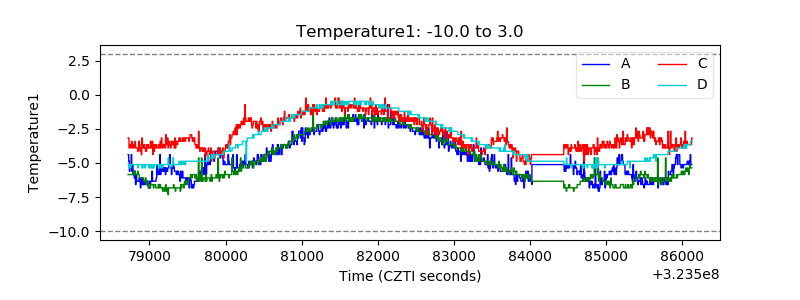

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

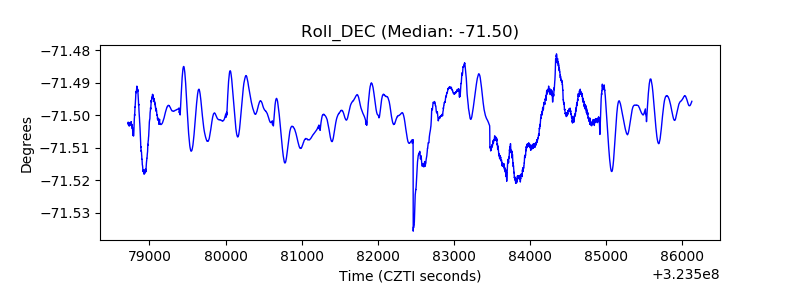

| _Roll_DEC |  |
| _Roll_RA |  |

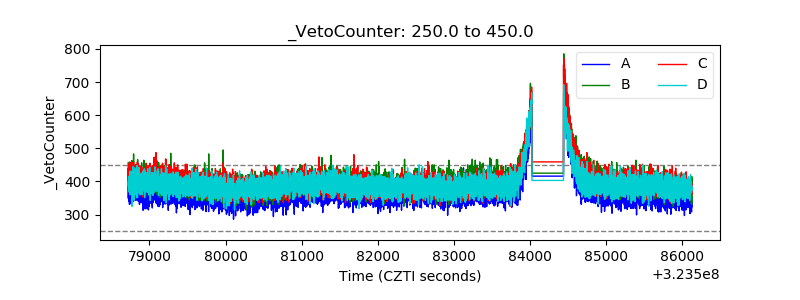

| Veto Counter |  |
